| Place of Origin | China |
| Brand Name | KOODSUN |
| Warranty | 10years |
| Weight | 84 kg |
Product Description
Performance characteristics:
●Small size and light weight
●Maintenance-free
●Environmental protection and pollution-free materials, no heavy metals, green and environmental protection
●The standard cycle life exceeds 5000 times
●Accurately estimate the state of charge of the battery pack, that is, the remaining power of the battery, to ensure that the power of the battery pack is maintained within a reasonable range
●Built-in BMS management system with comprehensive protection and monitoring and control functions
|
Model |
GBP-192100 |
GBP-192200 |
GBP-192300 |
||
|
Type of core |
Lithium iron phosphate |
||||
|
Rated energy (KWH) |
20 |
40 |
60 |
||
|
Nominal capacity (AH) |
100 |
200 |
300 |
||
|
Nominal voltage (VDC) |
192 |
||||
|
Operating voltage range (VDC) |
156~225 |
||||
|
Recommended Charge Voltage (VDC) |
210 |
||||
|
Recommended discharge cutoff voltage (VDC) |
183 |
||||
|
Standard charging current (A) |
50 |
80 |
120 |
||
|
Maximum continuous charge current(A) |
100 |
200 |
300 |
||
|
Standard discharge current (A) |
50 |
80 |
120 |
||
|
Maximum continuous discharge current (A) |
100 |
200 |
300 |
||
|
Working temperature |
-20~65℃ |
||||
|
Protection level |
IP20 |
||||
|
Communication interface |
RS485/CAN two choose one |
||||
|
Reference Weight (Kg) |
280 |
560 |
840 |
||
|
Reference size (D*W*H mm) |
530*550*1180 |
625*550*1600 |
530*680*2080 |
||
PACKING

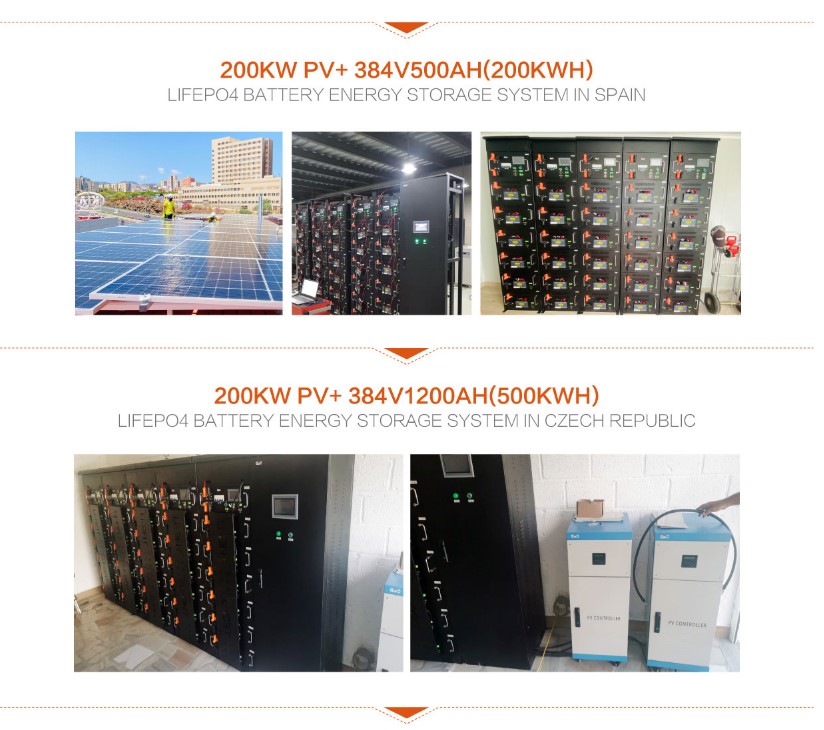

PROJECTS
Brand Name GSO Model Number GHV1-P11 Place of Origin Jiangsu, China Weight 45KG OEM/ODM Yes(Accepted) Product name Household Stacked Lithium Battery LiFePO4 Battery type Lithium Ion Battery Pack Size 625*420*175mm Operating Voltage Range 102.4~512V Chargeable Yes Certification CE/UN38.3/MSDS
