Commmercial Eenergy Storage System 100KW 200KW 250KW 500KW 1MW 2MW Hybrid Solar System With Storage Battery -Koodsun

Commmercial Eenergy Storage System 100KW 200KW 250KW 500KW 1MW 2MW Hybrid Solar System With Storage Battery

  • Brand:

    KOODSUN OR OEM SERVICE
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen/Shanghai/Ningbo
  • Lead Time:

    30Days
  • Power Ranger:

    100KW -2MW
  • Type:

    Storage Hybrid
  • Voltage :

    AC 360-415VAC; 208-240VAC; 460-480VAC
  • Material:

    LiFePO4
  • Certification:

    CE TUV UL IEC MSDS
  • Warranty:

    15years Warranty

Commmercial Eenergy Storage System 100KW 200KW 250KW 500KW 1MW 2MW Hybrid Solar System With Storage Battery



Configuration of BESS Battery Energy Storage System



Configuration of ESS Energy Storage System
Battery System Data
Battery Type LFP
DC Voltage Range 450-540VDC 480-560VDC 480-560VDC 576-672VDC 576-672VDC
Nominal Capacity 200KWH 400KWH 1MWH 2MWH 4MWH
Nominal Output Power 100KW 200KW 500KW 1MW 2MW

Inverter Technical Specification
MAX PV Input Power 125KW 250KW 675KW 1.1MW 2.2MKW
PV Input Voltage Range 1000VDC 1000VDC 1000VDC 1000VDC 1000VDC
Number of MPPT 1 1 1 1 3
Short-Circuit Current of PV
Battery Voltage Range 352-600VDC
Max Charge/Discharge Current 100A/93 150A/156A 300A/313A 350A/374A 450A/467A
AC Rated Voltage&AC Rated Frequency 360-415VAC; 50/60HZ

On Grid Mode of Inverter
Rated AC Power(KW) 100KW 200KW 500KW 1MW 2MW
Rated AC Output Voltage(V) 360-415VAC
Rated AC Output Frequency(Hz) 50/60HZ
THDI <3%

Off Grid Mode of Inverter
Rated AC Power(KW) 100KW 200KW 500KW 1MW 2MW
Rated AC Output Voltage(V) 360-415VAC
Rated AC Output Frequency(Hz) 50/60HZ
Over Load Capacity 110%-10 mins    120%-1min

UPS Data of Inverter
Rated AC Power(KW) 100KW 200KW 500KW 1MW 2MW
Rated AC Output Voltage(V) 360-415VAC
Rated AC Output Frequency(Hz) 50/60HZ



Projects of Koodsun C&I Energy Storage System

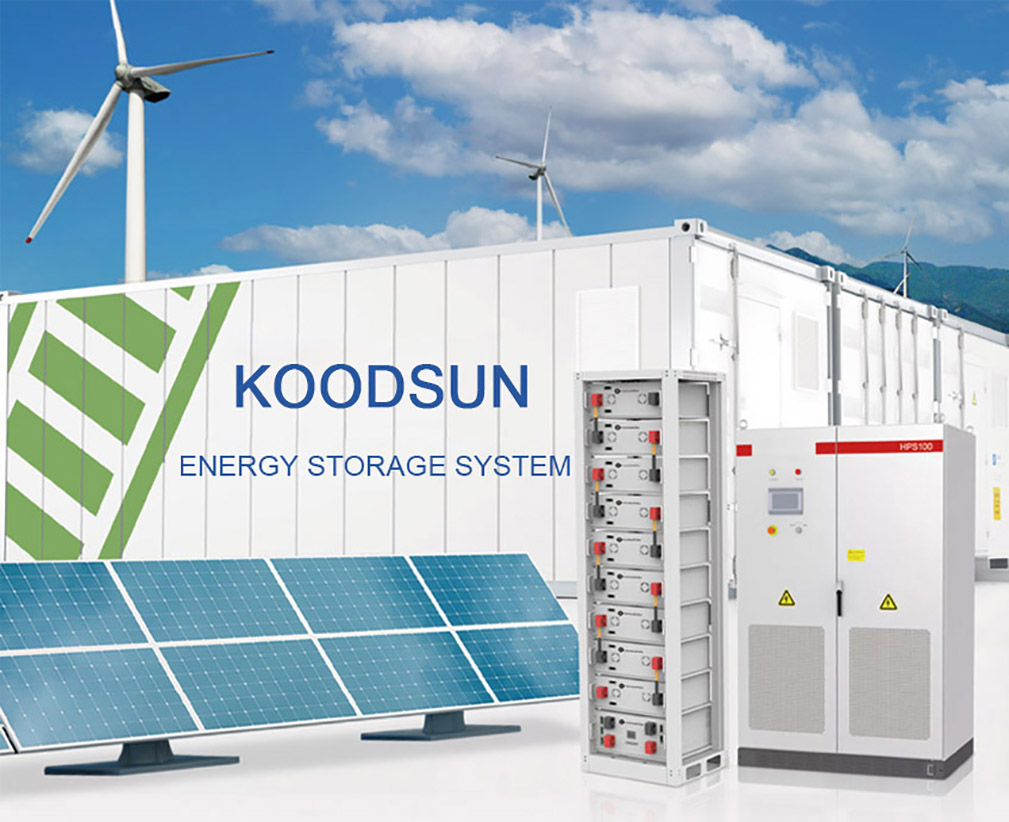

This high voltage lithium battery is a rack mountable battery storage system for island and large commercial use.
It can provide safe and reliable energy storage for daily use and backup of large solar energy storage systems.
Suitable for outdoor use, the system is simple to install and is compatible with most energy storage inverters from industry leading manufacturers including Deye, Sol-Ark, SMA, Schneider, Growatt, Atess, Outback, Megarevo and many more.



KOODSUN is China first class factory of lithium ion batteries and is the expert and provider of complete ESS energy storage system for Residential and C&I.

If you want to know more, please do not hesitate to contact us:

E-mail: steve@koodsun.com



Whatsapp&Wechat: +8613966581702

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
