Home Storage 20KW Hybrid Solar System High Voltage With Lithium Battery

  • Brand:

    Koodsun OR OEM SERVICE
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen/Shanghai/Ningbo
  • Lead Time:

    30Days
  • Power Ranger:

    10KW -100KW
  • Type:

    Storage Hybrid
  • Voltage :

    AC 360-415VAC; 208-240VAC; 460-480VAC
  • Cycle Life:

    6000Cycles
  • Material:

    LiFePO4
  • Certification:

    CE TUV UL IEC MSDS
  • Warranty:

    15years Warranty

Home Storage 20KW Hybrid Solar System High Voltage With Lithium Battery

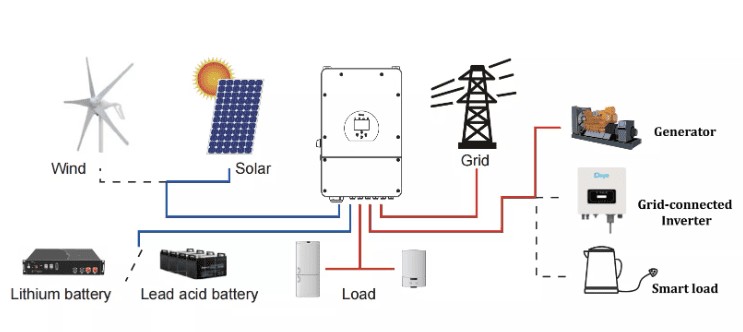

Wide Applications&Multi Functions of Residential Energy Storage System

(US / EU Version both can be avaiable, Single Phase/Split Phase/Three Phase Optional)

1. Self-Comsumption

2. Backup power Supply, UPS/EPS

3. Peak Shaving

4. Demand Charging Management

5. Hybrid Grid

6. 24/7 Online Monitor

7. Safe&Reliable (LFP Only)

8. Easy Installation and Expansion

9. High Compatibility







Residential ESS
Battery Data
Battery Type LFP LFP LFP LFP LFP LFP
DC Voltage Range 40-60VDC 40-60VDC 40-60VDC 180-700VDC 180-700VDC 180-700VDC
Nominal Capacity 5KWH 10KWH 20KWH 20KWH 40KWH 50KWH
Nominal Output Power 5KW 8KW 10KW 15KW 20KW 30KW

Inverter Technical Specification
MAX PV Input Power 6.5KW 10.4KW 13KW 19.5KW 26KW 36KW
PV Input Voltage Range 600VDC 800VDC 800VDC 1000VDC 1000VDC 1000VDC
Number of MPPT 2 2 3 2 2 3
Short-Circuit Current of PV
Battery Voltage Range 40-60VDC 40-60VDC 40-60VDC 180-700VDC 180-700VDC 200-800VDC
Max Charge/Discharge Current 120A/120A 190A/190A 210A/210A 50A/50A 50A/50A 100A/100A
AC Rated Voltage&AC Rated Frequency

Single Phase

220-240VAC

360-415VAC 360-415VAC 360-415VAC 360-415VAC 360-415VAC
On Grid Mode of Inverter
Rated AC Power(KW) 5KW 8KW 10KW 15KW 20KW 30KW
Rated AC Output Voltage(V) Single Phase 220-240VAC 360-415VAC 360-415VAC 360-415VAC 360-415VAC 360-415VAC
Rated AC Output Frequency(Hz) 50/60HZ 50/60HZ 50/60HZ 50/60HZ 50/60HZ 50/60HZ
THDI <3% <3% <3% <3% <3% <3%
Off Grid Mode of Inverter
Rated AC Power(KW) 5KW 8KW 10KW 15KW 20KW 30KW
Rated AC Output Voltage(V)

Single Phase

220-240VAC

360-415VAC 360-415VAC 360-415VAC 360-415VAC 360-415VAC
Rated AC Output Frequency(Hz) 50/60HZ 50/60HZ 50/60HZ 50/60HZ 50/60HZ 50/60HZ
Over Load Capacity 110%-10 mins    120%-1min
UPS Data of Inverter
Rated AC Power(KW) 5KW 8KW 10KW 15KW 20KW 30KW
Rated AC Output Voltage(V)

Single Phase

220-240VAC

360-415VAC 360-415VAC 360-415VAC 360-415VAC
Rated AC Output Frequency(Hz) 50/60HZ 50/60HZ 50/60HZ 50/60HZ 50/60HZ 50/60HZ

Koodsun Solar is China first class factory of lithium ion batteries and PV Panels and also the expert and provider of complete ESS energy storage system for Residential and C&I.

If you want to know more, please do not hesitate to contact us:

E-mail: steve@koodsun.com

Whatsapp&Wechat: +8613966581702
