Koodsun 10~30KW Solar Power System On Grid Solar Panel System With Three Phase Solar Inverter for residencial -Koodsun
Koodsun 10~30KW Solar Power System On Grid Solar Panel System With Three Phase Solar Inverter for residencial -Koodsun

Koodsun 10~30KW Solar Power System On Grid Solar Panel System With Three Phase Solar Inverter for residencial



Type  Grid Tied
Max power 30W
Output Voltage EU And US Standard
Certificate  TUV, ETL, ISO, CE
Lead Time  30 Days
Payment  T/T, Western Union
Warranty  25 Years

Product Description



Koodsun Grid tied solar system power plant design solution 10/12/15/20/30KW grid tied solar system for residencial

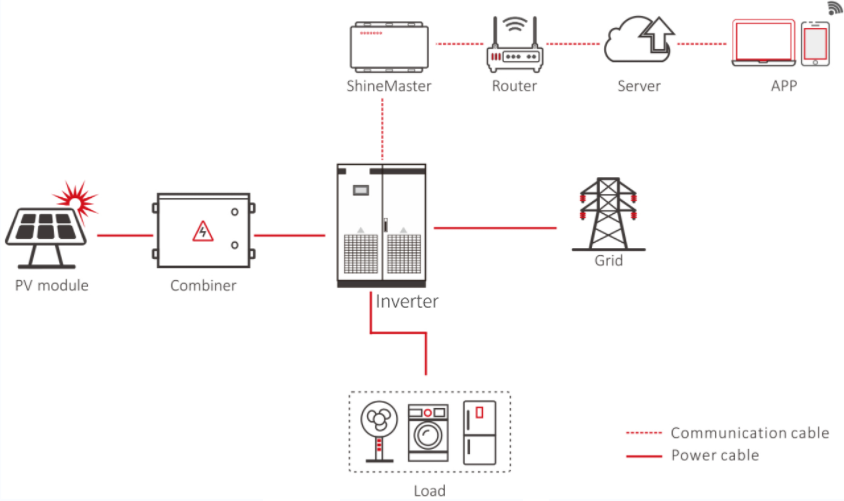

Working Diagrams







Design scheme



Koodsun Grid-tied Solar System Configuration

Model

10KW-ON

12KW-ON

15KW-ON

20KW-ON

30KW-ON

Solar Panel 550W

19  Pieces

22 Pieces

28 Pieces

37 Pieces

55 Pieces

Grid-tied Inverter

10KW

12KW

15KW

20KW

30KW

Wi-Fi Module

1 Piece

1 Piece

1 Piece

1 Piece

1 Piece

Mounting Bracket

1 Set

1 Set

1 Set

1 Set

1 Set

PV Cable

200 Meters

200 Meters

300 Meters

300 Meters

300 Meters

MC4 compatible Connector

10 Pairs

10 Pairs

10 Pairs

20 Pairs

20 Pairs

AC/DC Breaker

Opt

Opt

Opt

Opt

Opt

PV Tools

Wire Cable Cutter & Stripper, Crimping Pliers for PV Connectors (Opt)

Kindly reminder: The above system configuration is the initial designing and may change depending on

Regarding your final installation conditions and requirements. For more detailed information, please send your inquiry to the koodsun team. Thank you.

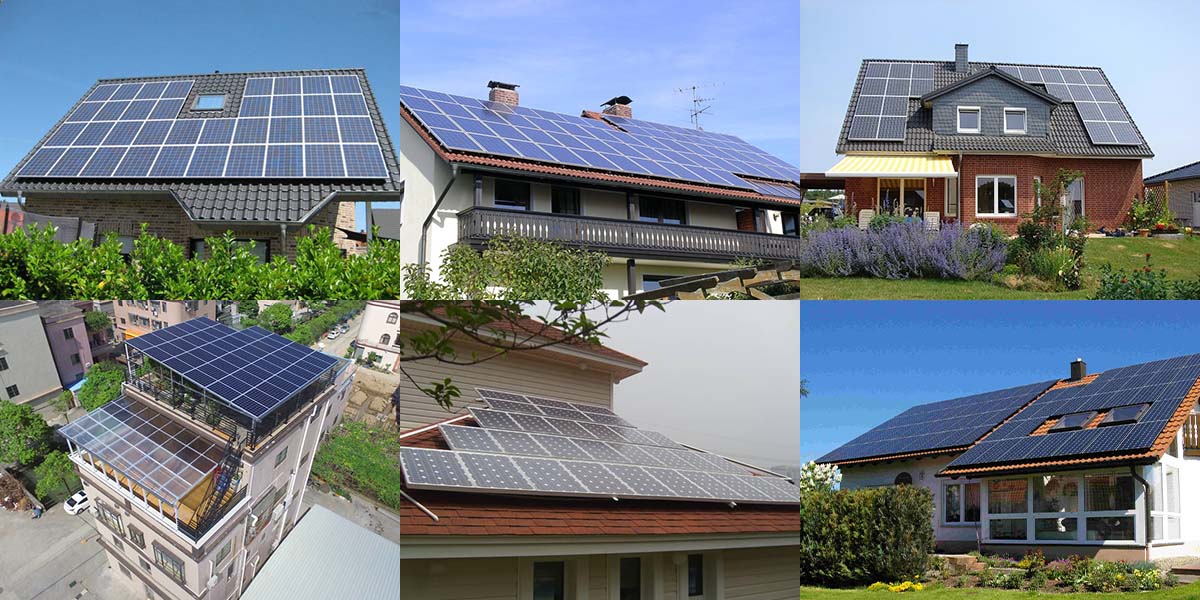

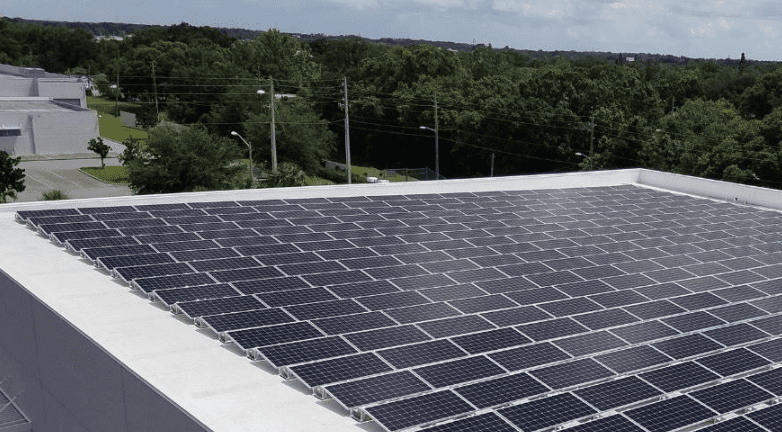

Project







Advantages of Grid Binding System



1. Use net measurement to save more funds

Your solar panels typically generate more electricity than you can consume. With net metering, homeowners can transmit excess electricity from grid connected solar installations to the public grid instead of storing it on their own batteries.

2. The public power grid is a virtual battery

Grid connected solar power generation networks are also a type of battery in many aspects, requiring no maintenance or replacement, and are much more efficient. In other words, traditional battery systems will waste more electricity.

3. Residential buildings with a capacity exceeding 10 kilowatts and grid connected solar devices can meet the load of most consumers.
