Applicable temperature(°C): -30~60(Recommended 10~35)
cooling method: Natural air cooling
Life cycles: 6000+times at 90% DOD
Storage temperature(°C): -20~65(Recommended10~35)
Protection level: IP20
Standard charging current(A): 50
Operating voltage range: 42-54.75
Nominal voltage(V): 51.2
Product Origin :
ChinaBrand :
KoodsunMoudle Number :
GLR-280/314Input Voltage :
51.2VWeight :
125kgInverter Type :
DC/AC InvertersWarranty :
10 yearsCompany Description

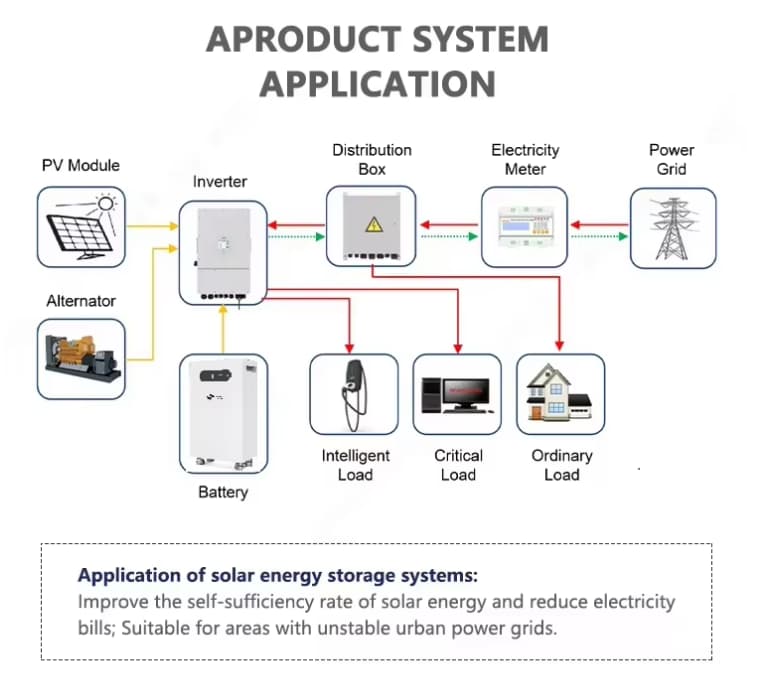

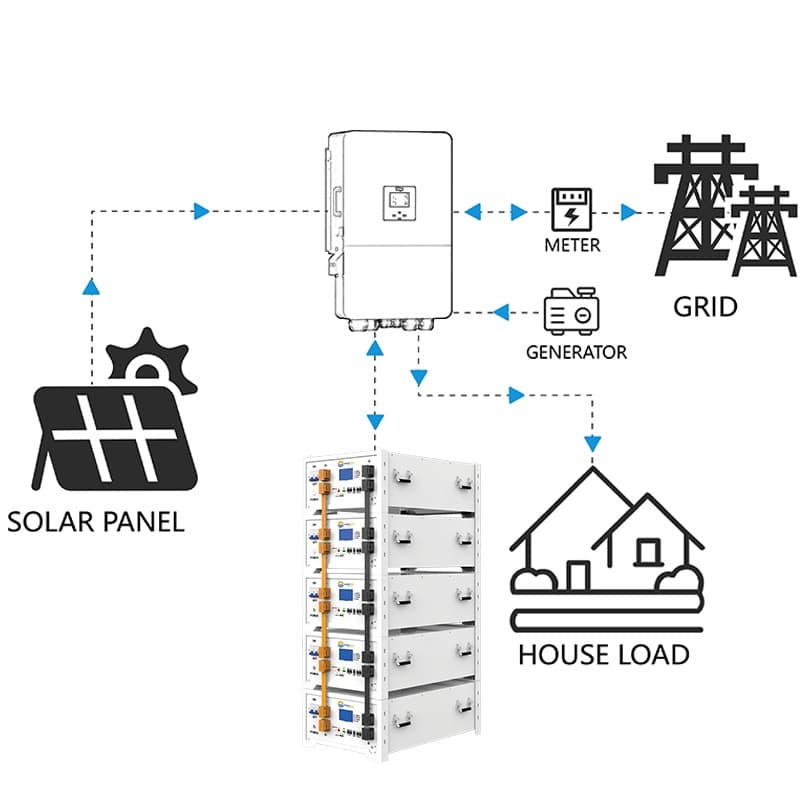

Basic System Architecture

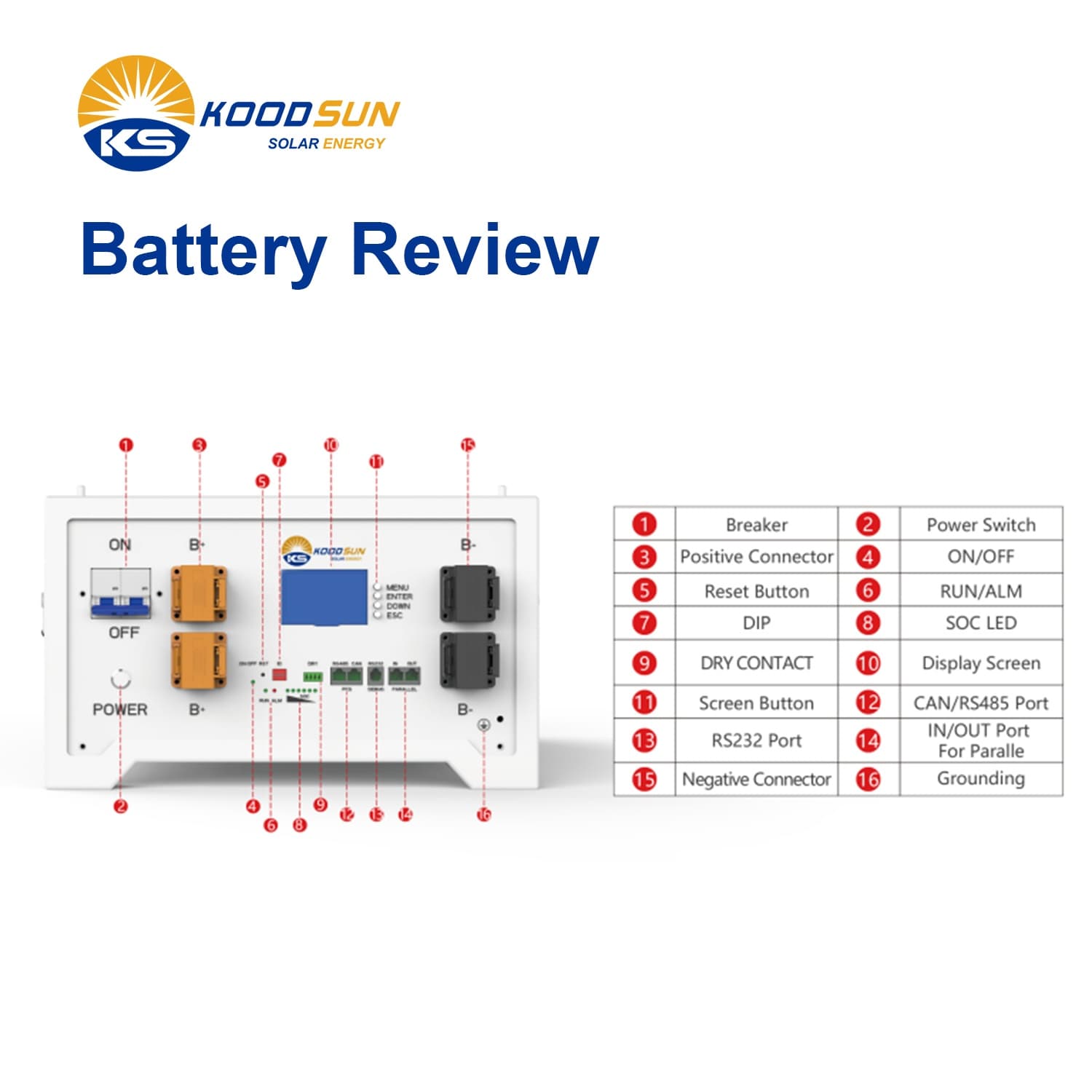

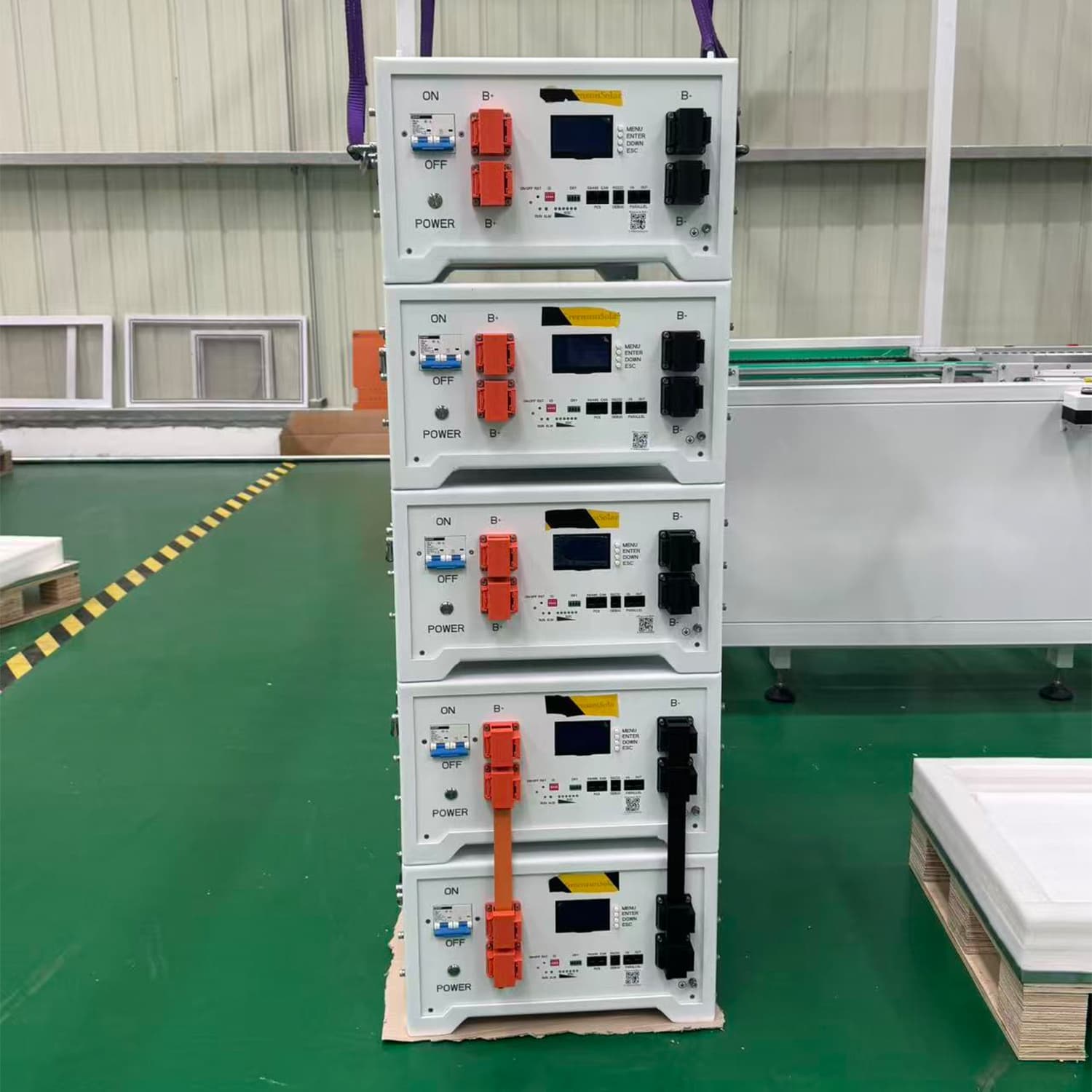

Details Images

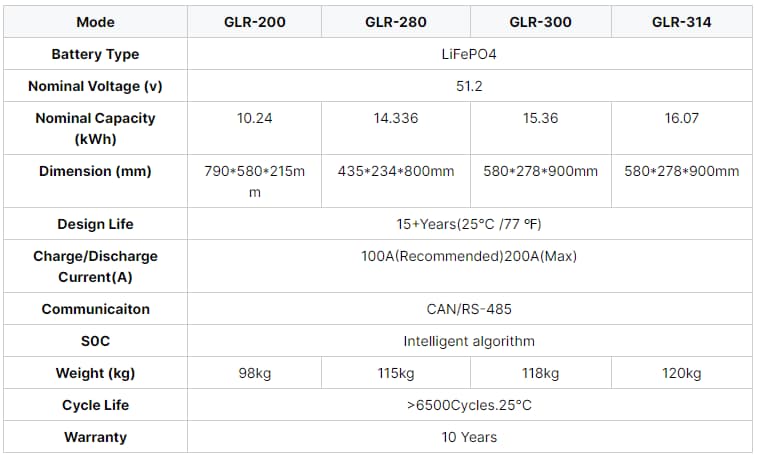

Specification

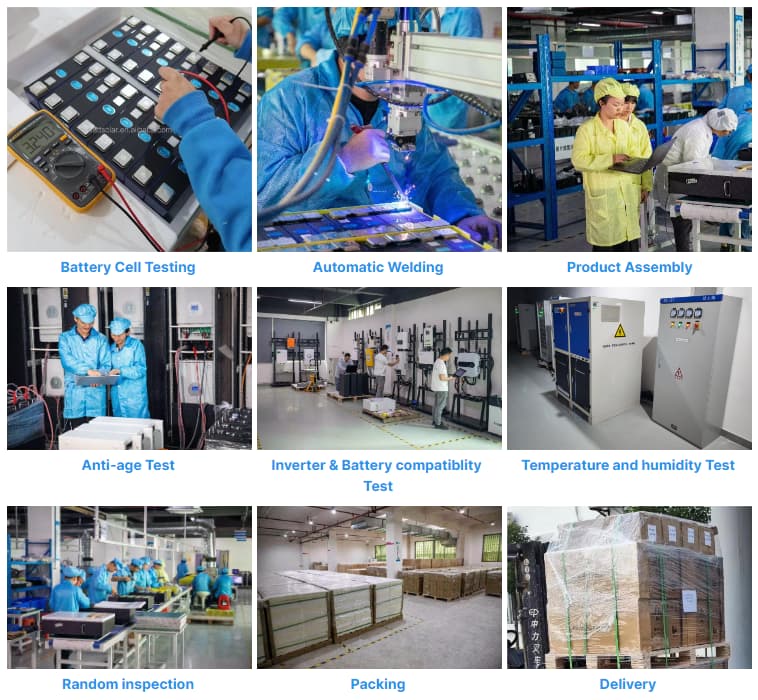

Producing Process

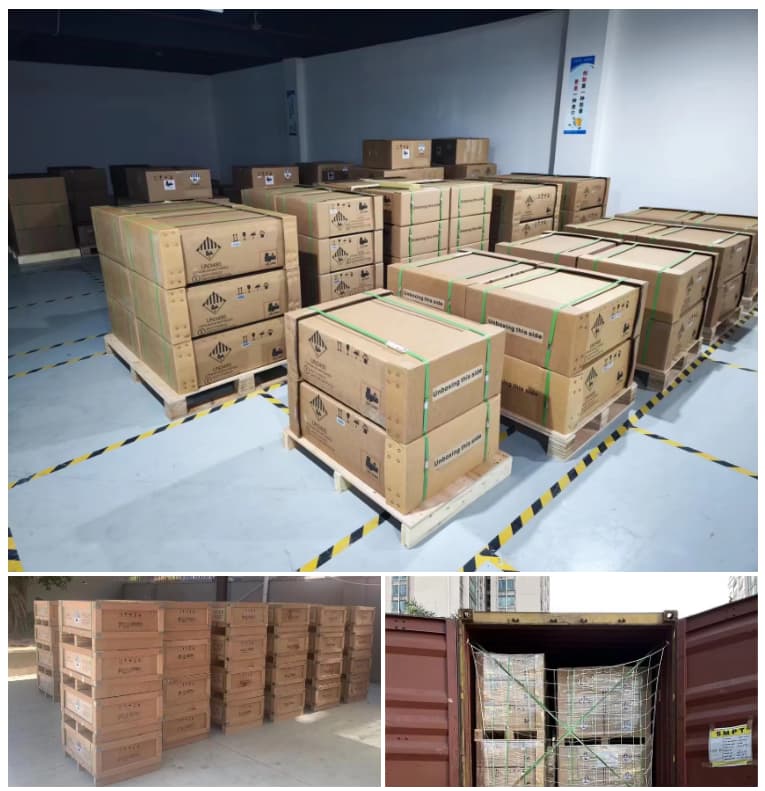

Packing
Company Profile

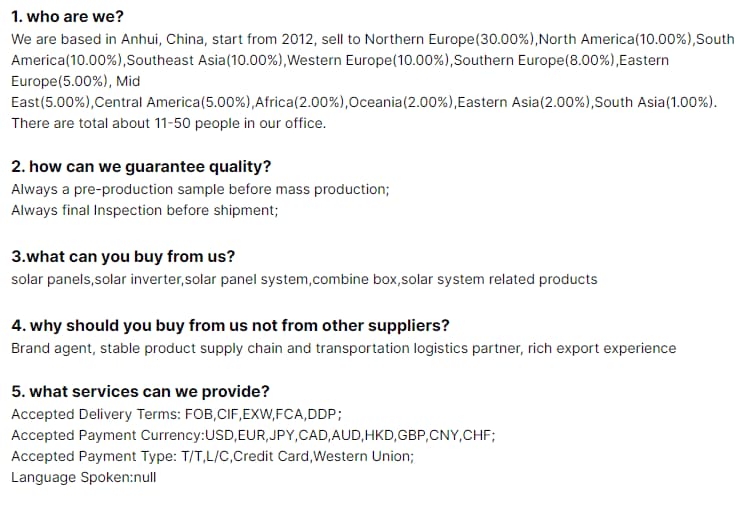

FAQ
Applicable temperature(°C): -30~60(Recommended 10~35) cooling method: Natural air cooling Life cycles: 6000+times at 80% DOD Storage temperature(°C): -20~65(Recommended10~35) Protection level: IP20 Standard charging current(A): 50 Operating voltage range: 42-54.75
Battery Type：LiFePO4 Nominal Voltage (V)：51.2 Nominal Capacity(Ah)：314 Discharge Voltage (V)：44.0V-58.4V Dimension (mm)：580*278*900 Weight (kg)：151 Warranty：10 years Communicaiton：CAN/RS-485
Battery Type：LiFePO4 Nominal Voltage (V)：51.2 Nominal Capacity(Ah)：100 Discharge Voltage (V)：44.0V-58.4V Dimension (mm)：435*234*800 Weight (kg)：50 Warranty：10 years Communicaiton：CAN/RS-485
Battery Type：LiFePO4 Nominal Voltage (V)：51.2 Nominal Capacity(Ah)：280 Discharge Voltage (V)：44.0V-58.4V Dimension (mm)：435*234*800 Weight (kg)：140 Warranty：10 years Communicaiton：CAN/RS-485
