Product Name：Solar Inverter
Application：Solar Energy System
Max. input voltage：1000V
Rated voltage：600V
Rated output power：125KW
Dimensions：1174*814*400mm
Weight：235KG
Product Origin :
ChinaBrand :
SolisMoudle Number :
S6-EH3P125K10-NV-YD-HInput Voltage :
380VWeight :
235KGInverter Type :
Hybrid Solar InverterWarranty :
10 YearsProducts Description

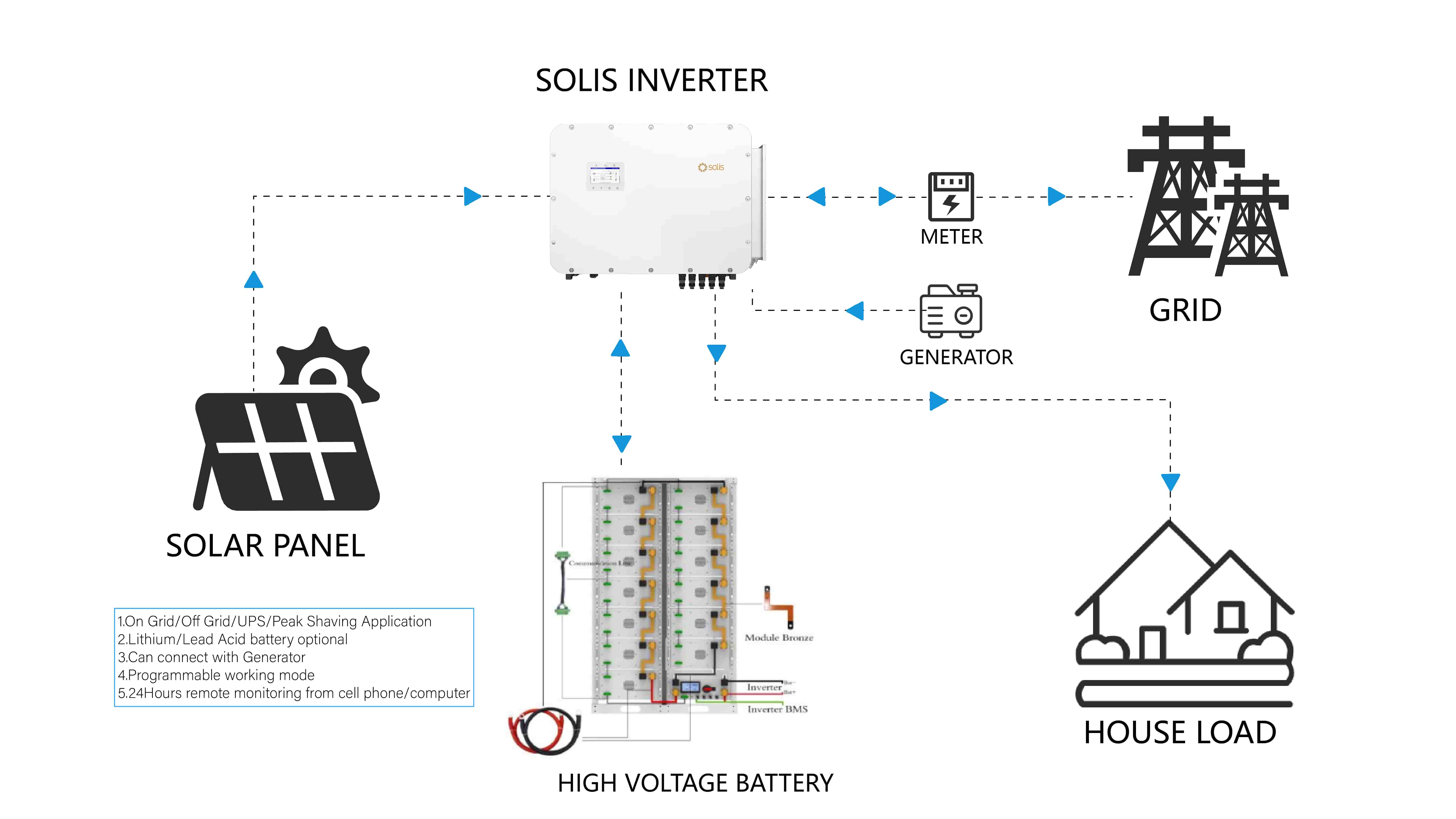

Basic System Architecture
Specification
| Model | S6-EH3P100K10-NV-YD-H | S6-EH3P125K10-NV-YD-H |
| Recommended max. PV array size | 200kw | 240kw |
| Max. input voltage | 1000V | |
| Rated voltage | 600 V | |
| MPPT voltage range | 150 - 950 V | |
| Battery voltage range | 300 - 950 V | |
| Number of battery ports | 2 | |
| Communication | CAN / RS485 | |
| Rated grid voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V | |
| Dimensions (W * H * D) | 1174*814*400 mm | |

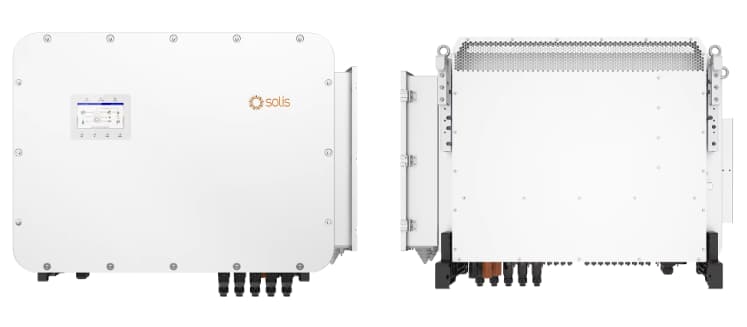

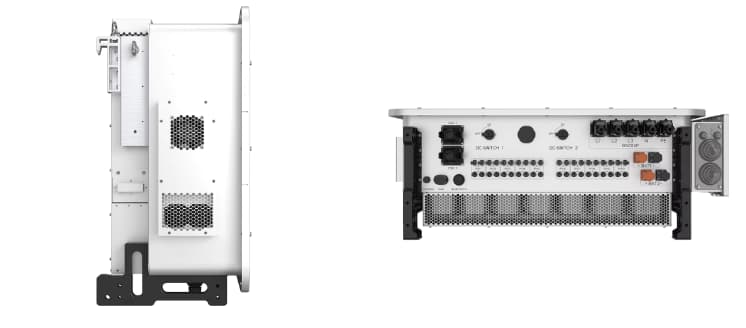

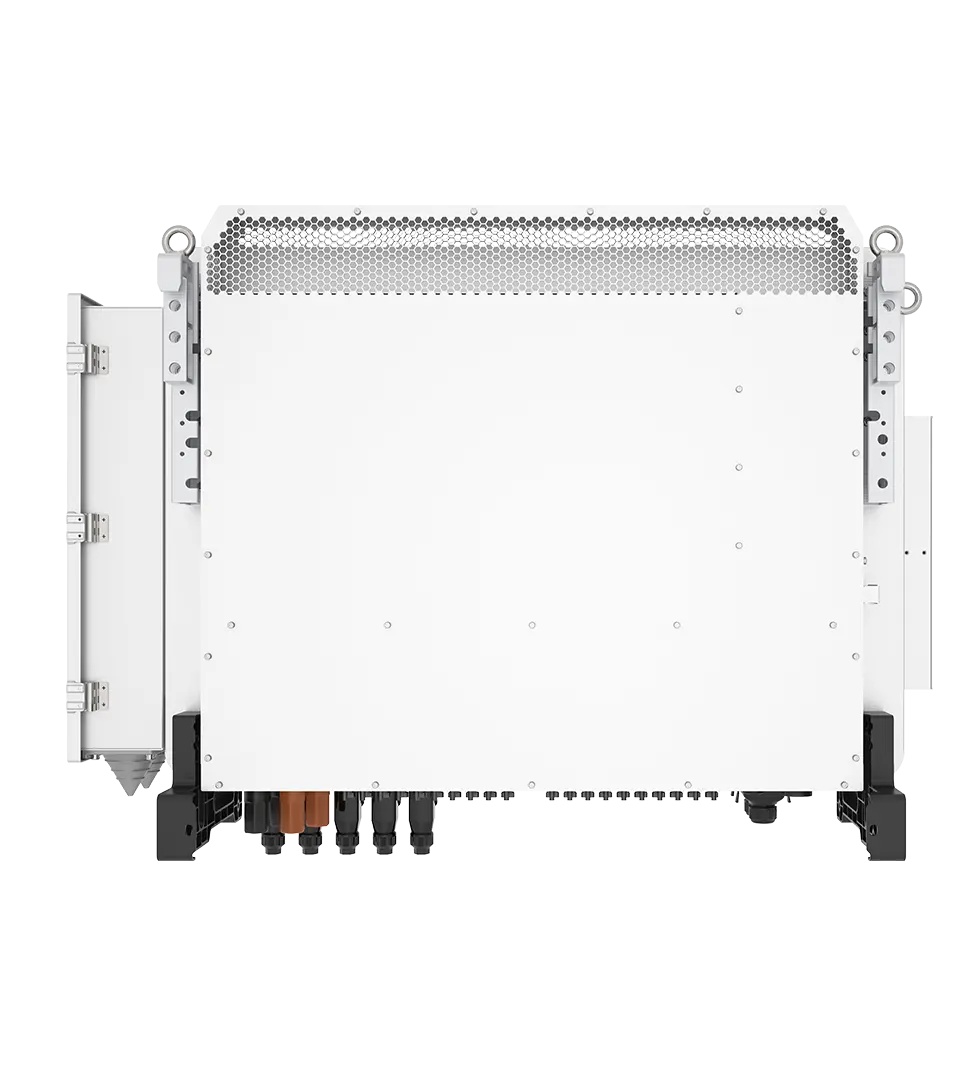

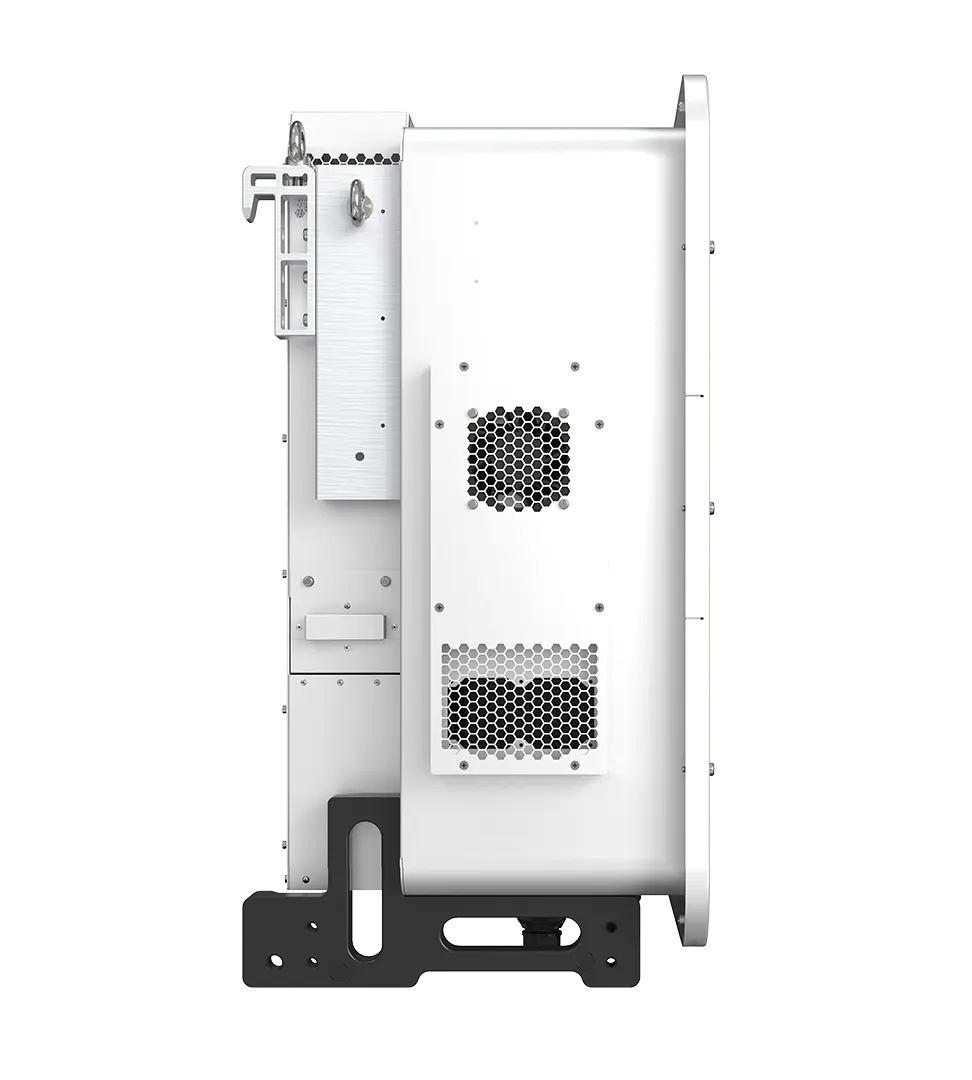

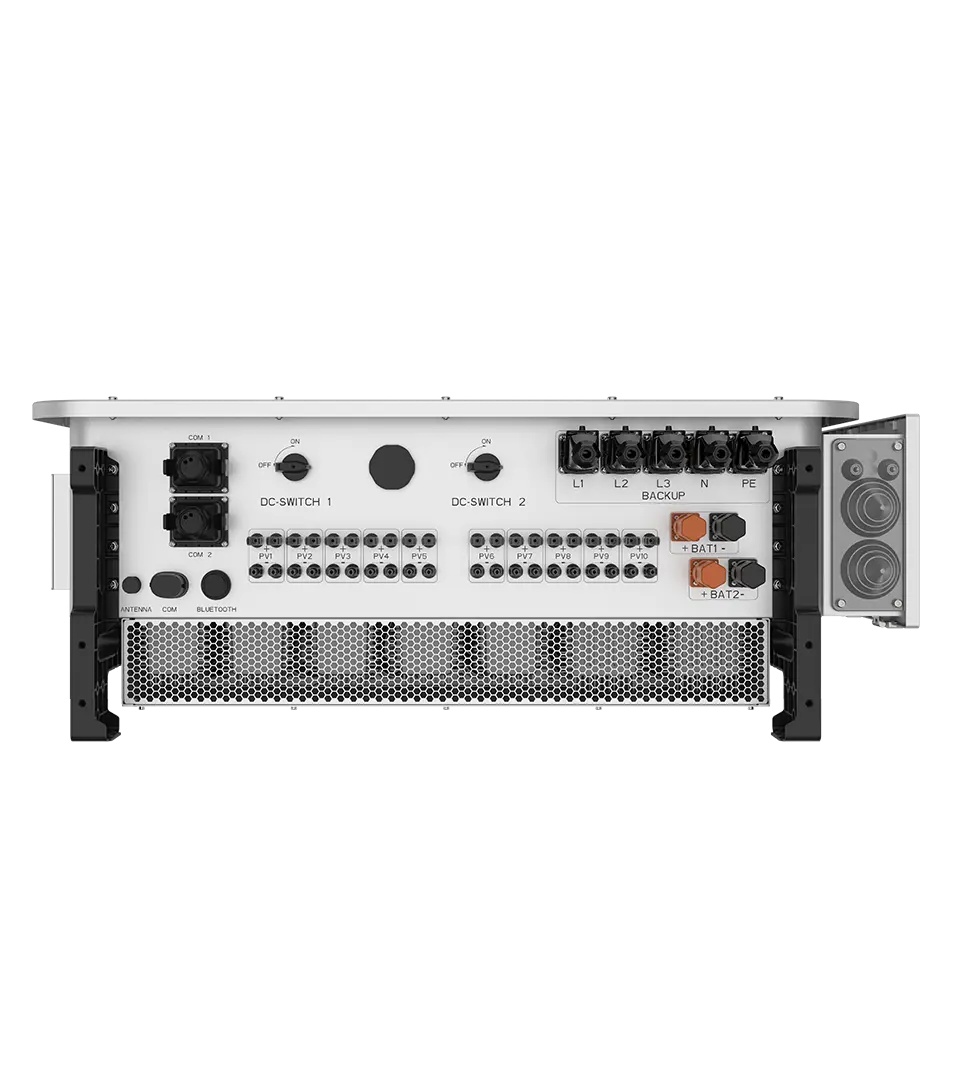

Details Images

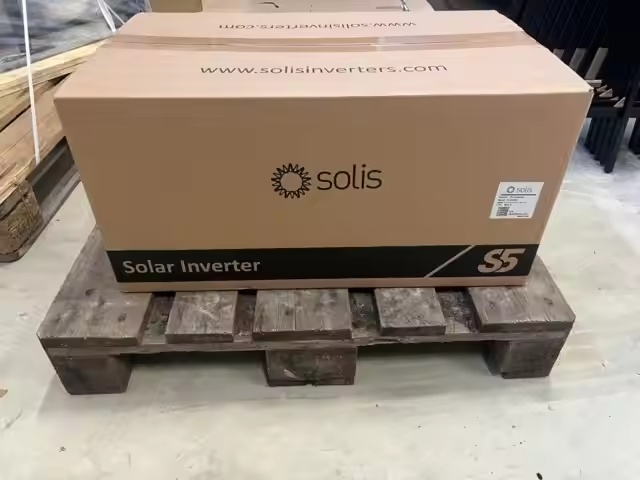

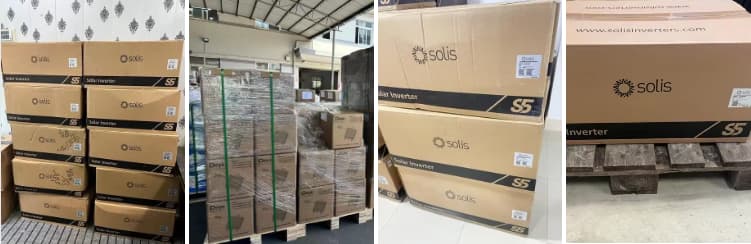

Packing

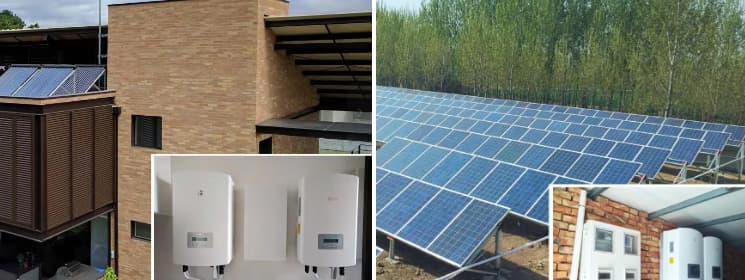

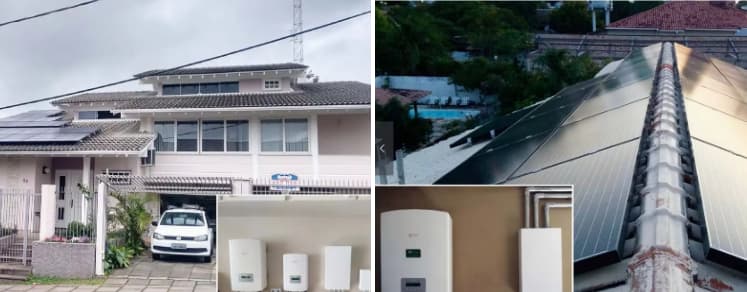

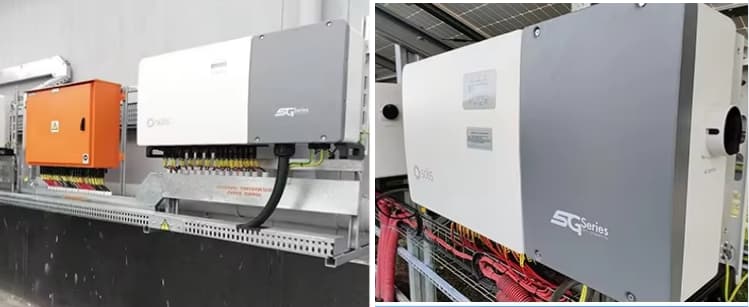

Project

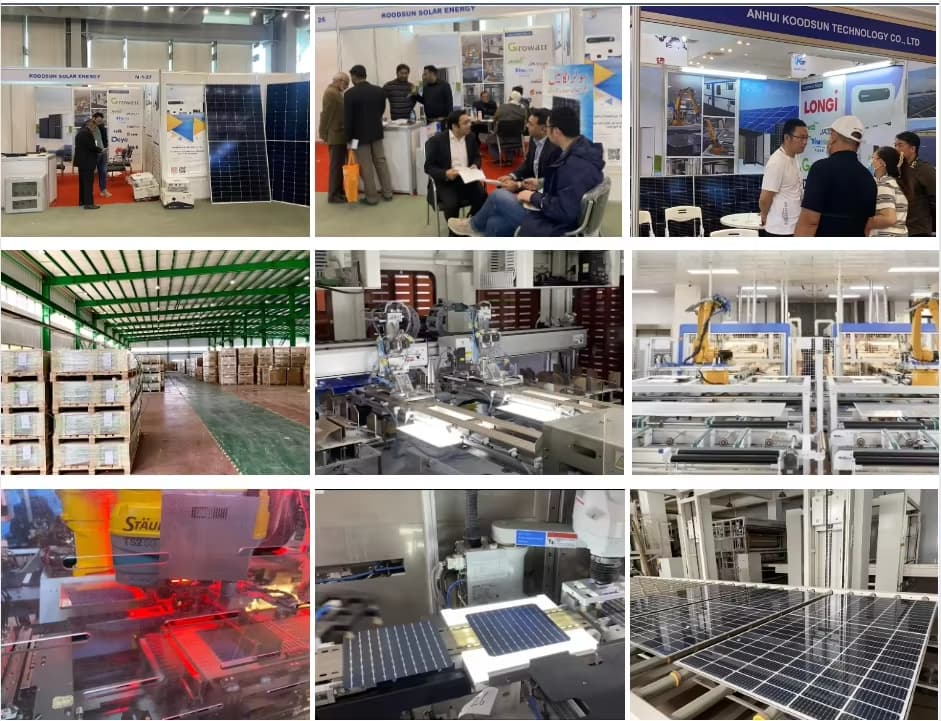

Company Profile
Koodsun Energy Technology Co.,Ltd. is a professional, fast growing company. The company is well known as a world leading manufacturer of cost-effective, high efficiency and good quality photovoltaic panel, inverter, battery, controller, solar system and solar pump system. Having professional engineering team, Koodsun provide best design and customization of solar system and solar pump system. Koodsun was founded in 2012, headquartered in Hefei, Anhui China. Our factory covers 70,000 square meters area and has more than 6,00 employees. Koodsun has 12 years experience in solar industry and is dedicated to research and development,production innovation and strict quality control management. We have comprehensive product range: solar panel, inverter,controller, battery, on grid and off grid solar system, hybrid solar system and solar pump system.
Max. usable PV input power: 240 kW Battery voltage range: 300 - 950 V Battery connection: Terminal connector Topology: Transformerless Operating ambient temperature range: -25 ~ +60°C Ingress protection: IP66 Communication: CAN / RS485 THDi: < 3% Max. input current: 250A Rated output power: 125KW
Max. usable PV input power: 240 kW Battery voltage range: 300 - 950 V Battery connection: Terminal connector Topology: Transformerless Operating ambient temperature range: -25 ~ +60°C Ingress protection: IP66 Communication: CAN / RS485 THDi: < 3% Max. input current: 250A Rated output power: 125KW
Battery Type: Lithium-ion Max. Charging Current (A): 50 Number of Battery Input: 2 MPPT Voltage Range (V): 150-850 No. of MPP Trackers: 2/2+1 2/2+2 Max. AC Input/Output Current (A): 41.7/39.9 Max. Efficiency: 97.60% MPPT Efficiency: >99% Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 Warranty: 5 Years/10 Years
Max. AC apparent power: 110kVA AC grid connection type: 3P3W+PE/3P4W+PE Battery voltage range: 380V-650V Recommended battery voltage: 750-1000V for 3P3W / 820-1000V for 3P4W BMS communication: RS485/CAN Types of battery: Lithium Max. charging / discharging current: 156A Continuous charging / discharging power: 62.3kW Operating temperature range: -22°F~+140°F, >122°F derating Display: OLED+LED/WIFI+APP
Battery Type：Lithium-ion Battery Voltage Range (V)：160-1000 Max. Charging Current (A)：80+80 Charging Strategy for Li-ion Battery：Self-adaption to BMS Number of Battery Input：2 Max. Efficiency：97.60% Rated PV Input Voltage (V)：650
Product Name：Solar Inverter Max. input voltage：1100V Max. efficiency：98.2% Weight：153kKG Dimensions (W/H/D)：820/1350/510mm Nominal AC grid frequency/range：50/60Hz,45-55Hz/55-65Hz MPPT nominal voltage/range：550V,180V~800V Warranty (5/10 years)：Yes/Opt
