Cell Chemistry: LiFePO4
Module Energy ( kwh ): 7.68
Module Nominal Voltage (V ): 38.4
Module Capacity (Ah): 200
Communication Port: CAN2.0
Humidity: 5%~85%RH
Storage Temperature ( °C ): 0~35
Recommend Depth of Discharge: 90%
Warranty: 10 years
Certification: CE/IEC 62619/IEC62040/UN38.3/VDE-2510
Product Origin :
ChinaBrand :
DeyeMoudle Number :
BOS-AInput Voltage :
38.4VWeight :
75KGInverter Type :
High voltage batteryCertificate :
CEWarranty :
10 yearsProduct Description

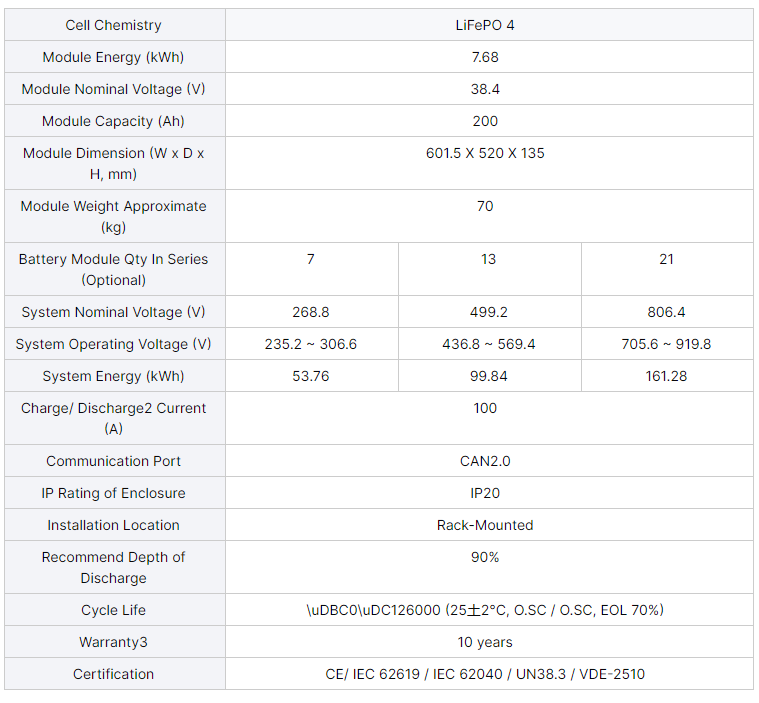

Specification

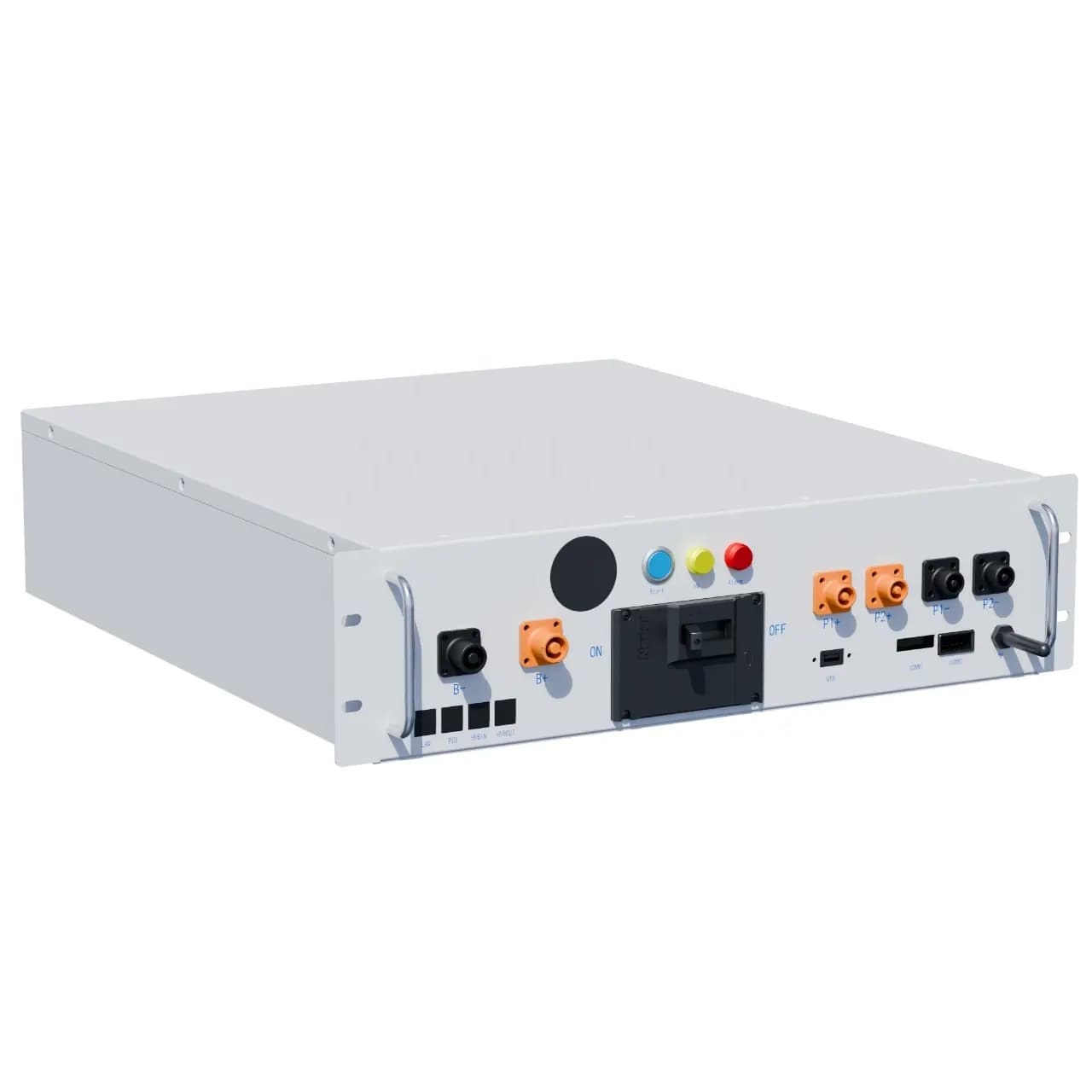

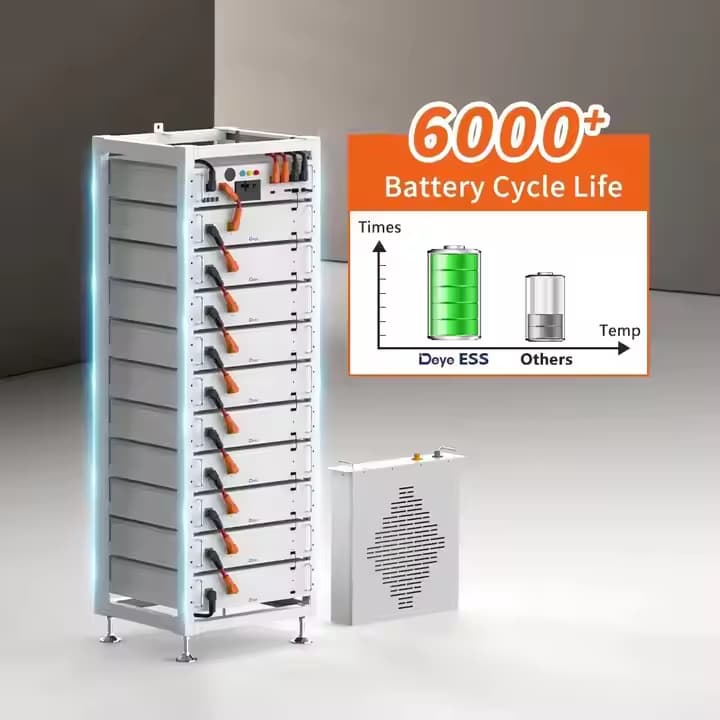

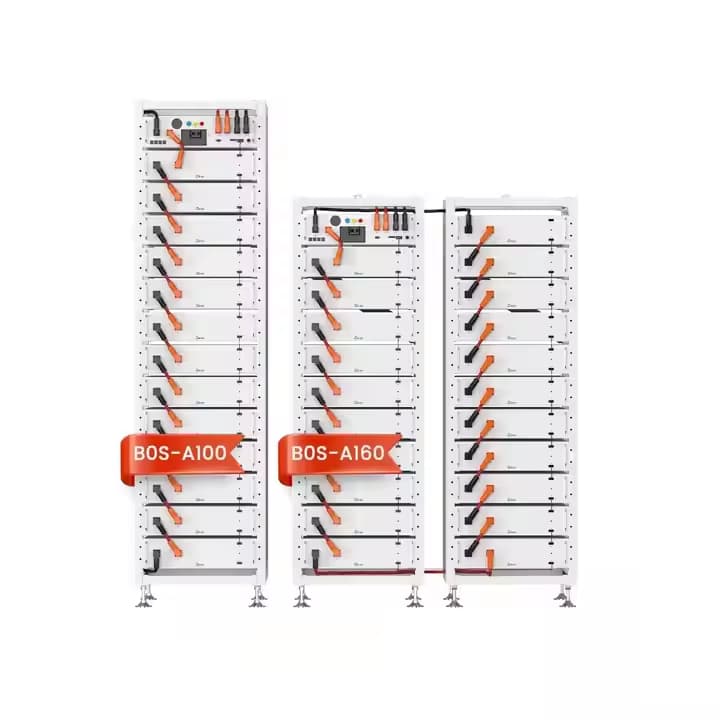

Details Images
Basic System Architecture

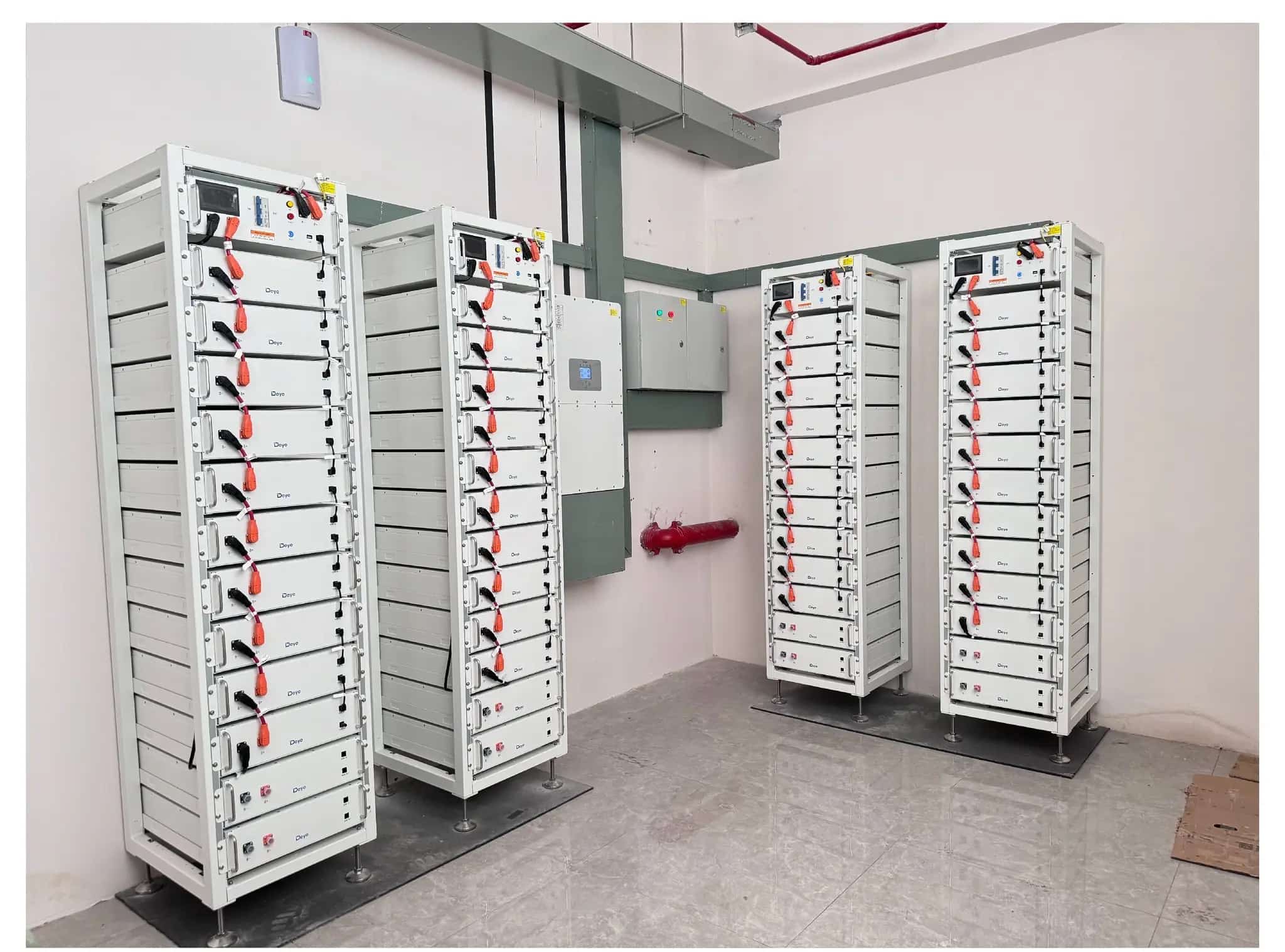

Project
Packing
Company Profile
Applicable temperature(°C): -30~60(Recommended 10~35) cooling method: Natural air cooling Life cycles: 6000+times at 80% DOD Storage temperature(°C): -20~65(Recommended10~35) Protection level: IP20 Standard charging current(A): 50 Operating voltage range: 42-54.75 Nominal voltage(V): 51.2
Brand Name: DEYE Model Number: BOS-G Pro Certification: CE/IEC62619 /VDE2510-50/ UL1973 /UL9540A/UN38.3 Weight: 290kg The charging ratio: 100% The discharge rate: 90% Battery type: Lifepo4 Battery Cell Warranty: 10 Years Installation Location: Rack Mounting IP Rating of Enclosure: IP20
Grid Type: Three phase Number of parallel: 10 Energy Configuration (kWh): 122.8 AC Output Rated Current (A): 75.8 Battery Chemistry: LiFePO4 IP Rating of Enclosure: IP55 Installation Style: Floor-Mounted Display: LCD Inverter Communication: CAN,RS485,WIFI,ETH Battery Module Certification: UN38.3,IEC62619,IEC61000
Battery Type：LiFePO4 Nominal Voltage (V)：51.2 Nominal Capacity(Ah)：280 Discharge Voltage (V)：44.0V-58.4V Dimension (mm)：435*234*800 Weight (kg)：140 Warranty：10 years Communicaiton：CAN/RS-485
Brand Deye Product Origin China Module Nominal Voltage (V) 51.2V Module Capacity ( Ah ) 280Ah Module Energy( kwh ) 14.3kwh Cell Chemistry LiFePO4 Working Temperature (°C) Charge:0~55/Discharge:-20~55 IP Rating of Enclosure IP20 Warranty 10 years Cycle Life 6000+
Brand:Deye Product Origin：China Module Nominal Voltage (V)：51.2V Module Capacity ( Ah )：100Ah Module Energy( kwh ):5.12kwh Cell Chemistry:LiFePO4 Working Temperature (°C)：Charge:0~55/Discharge:-20~55 IP Rating of Enclosure：IP20 Warranty：10 years Cycle Life：6000+
Battery Type：LiFePO4 Nominal Voltage (V)：51.2 Nominal Capacity(Ah)：280 Discharge Voltage (V)：44.0V-58.4V Dimension (mm)：435*234*800 Weight (kg)：140 Warranty：10 years Communicaiton：CAN/RS-485
Brand Deye Product Origin China Module Nominal Voltage (V) 38.4V Module Capacity ( Ah ) 200Ah Module Energy( kwh ) 7.68kwh Cell Chemistry LiFePO4 Working Temperature (°C) Charge:0~55/Discharge:-20~55 IP Rating of Enclosure IP20 Warranty 10 years Cycle Life 6000+
