SOLAR INVERTER
Home /SOLAR INVERTER /Deye hybrid high voltage three-phase Inverter 20kw 25kw Dual MPPT Solar Power Inverter For Home Solar System
Deye hybrid high voltage three-phase Inverter 20kw 25kw Dual MPPT Solar Power Inverter For Home Solar System -Koodsun
Deye hybrid high voltage three-phase Inverter 20kw 25kw Dual MPPT Solar Power Inverter For Home Solar System -Koodsun
Deye hybrid high voltage three-phase Inverter 20kw 25kw Dual MPPT Solar Power Inverter For Home Solar System -Koodsun

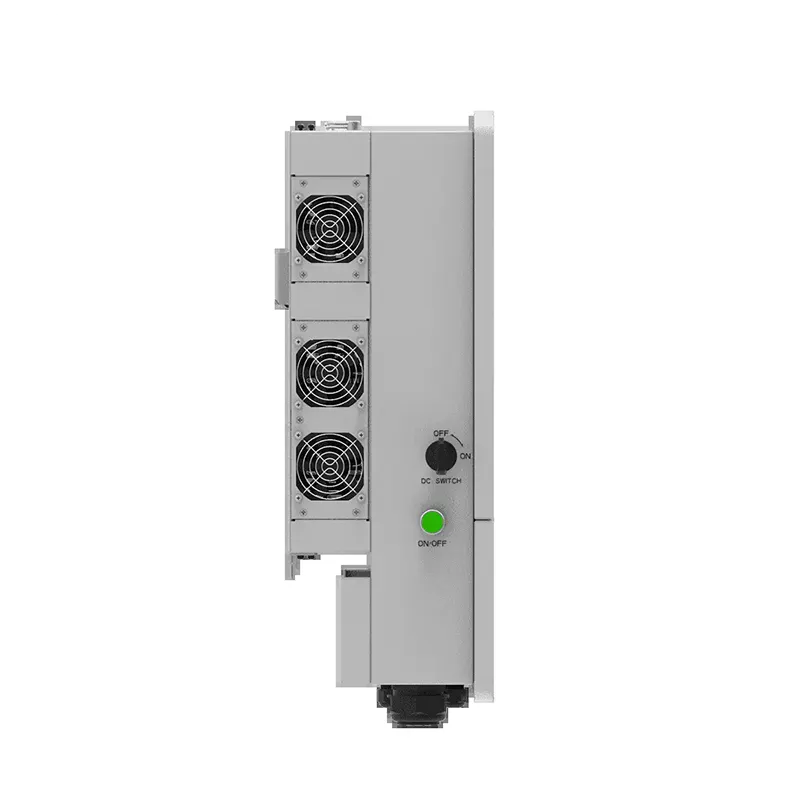

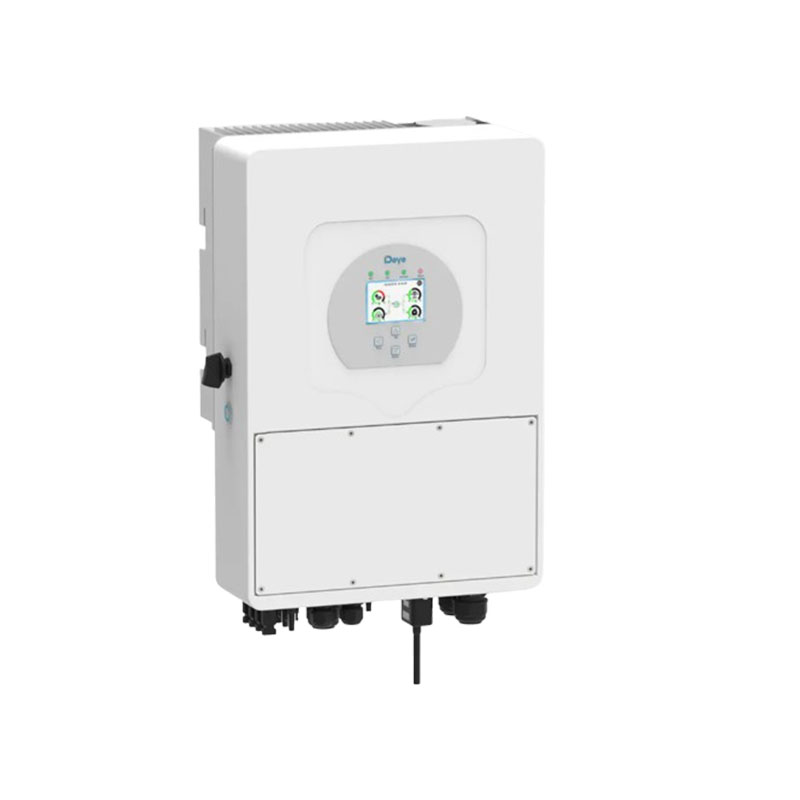

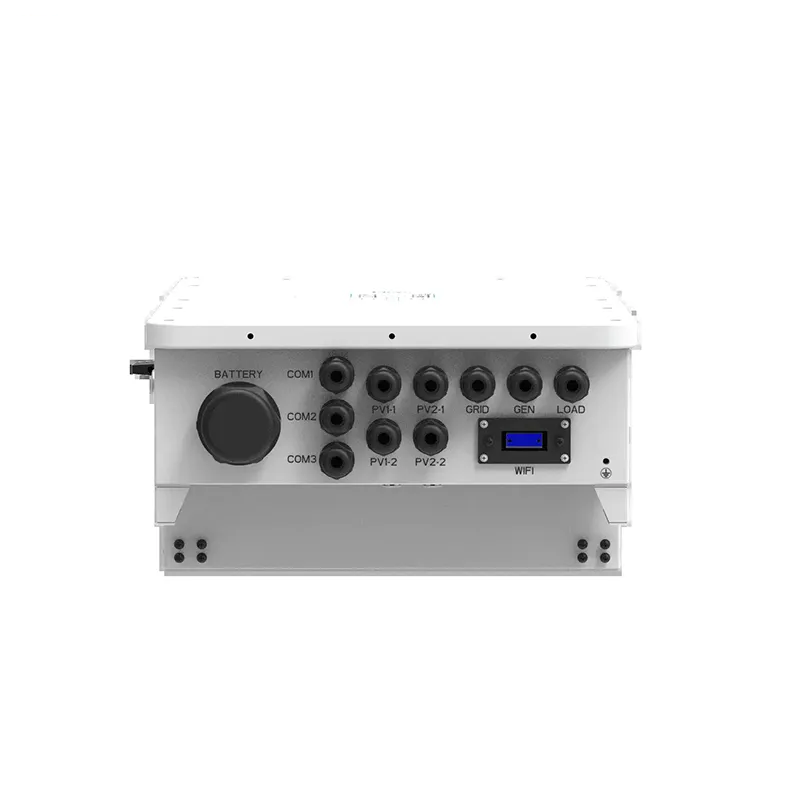

Deye hybrid high voltage three-phase Inverter 20kw 25kw Dual MPPT Solar Power Inverter For Home Solar System

SUN-20K-SG01HP3-EU-AM2

SUN-25K-SG01HP3-EU-AM2



Place of Origin
Anhui, China



Brand Name
DEYE/OEM



Model Number
Hybrid Three Phase 5kw-25kw



Input Voltage
Max Input 1000VDC



Output Voltage
220/380V (According to local standard)



Output Current
13A - 40A



Output Frequency
50/60HZ



Size
408*638*237mm



Certificate
CE IEC UL NRS AS4777 VDE



Warranty
5 Years / 10 Years



Weight
30.8 KG



Product name
Deye hybrid inverter



Inverter type
Hybrid Solar Power Inverter



Protection
Overload, Overcharge



Efficiency
99.9% Max



Application

Datasheets

Hybrid Inverter
SUN-5K-SG01HP3-EU-AM2
SUN-10K-SG01HP3-EU-AM2
SUN-15K-SG01HP3-EU-AM2
SUN-20K-SG01HP3-EU-AM2
SUN-25K-SG01HP3-EU-AM2
Battery Type
Lithium-ion
Battery Voltage Range
160~700V
Max.Charging Current (A)
30A
37A
50A
Max.Discharging Current (A)
30A
37A
50A
BMS
Yes
Max Input Power
6500W
13000W
19500W
26000W
32500W
Max DC Input Voltage
1000V
Start-up Voltage
180V
MPPT Voltage Range
150-850V
Number of MPPT
2
PV Input Current (A)
20A+20A
26A+20A
26A+26A
Output Frequency and Voltage
50/60Hz;3L/N/PE 220/380Vac,230/400Vac
Max Efficiency
97.6%
MPPT Efficiency
99.90%
Certificate
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105, EC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Communication with BMS
RS485;CAN

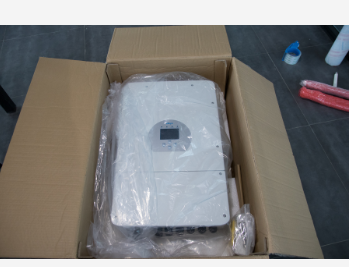

Packing





leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
