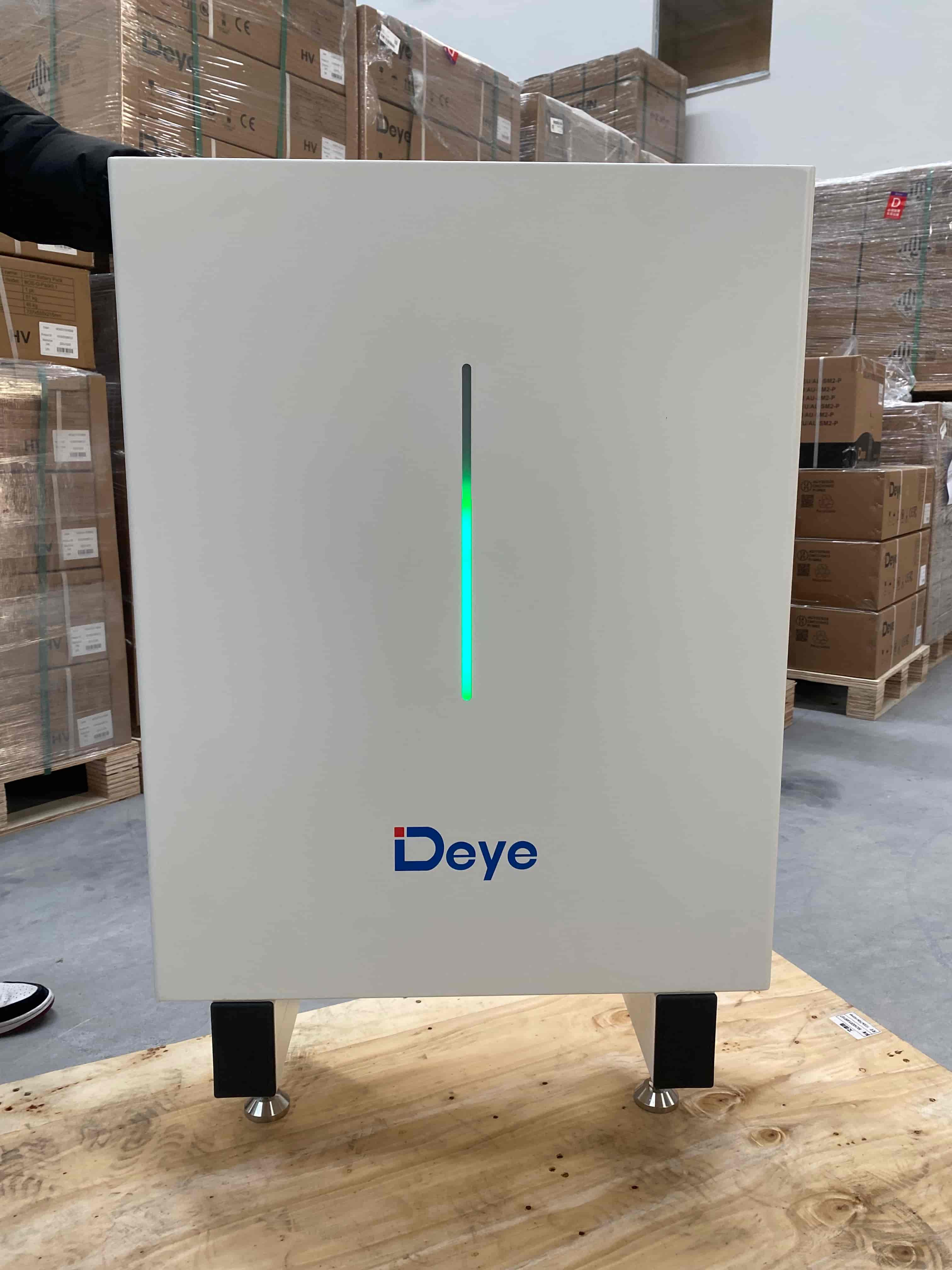

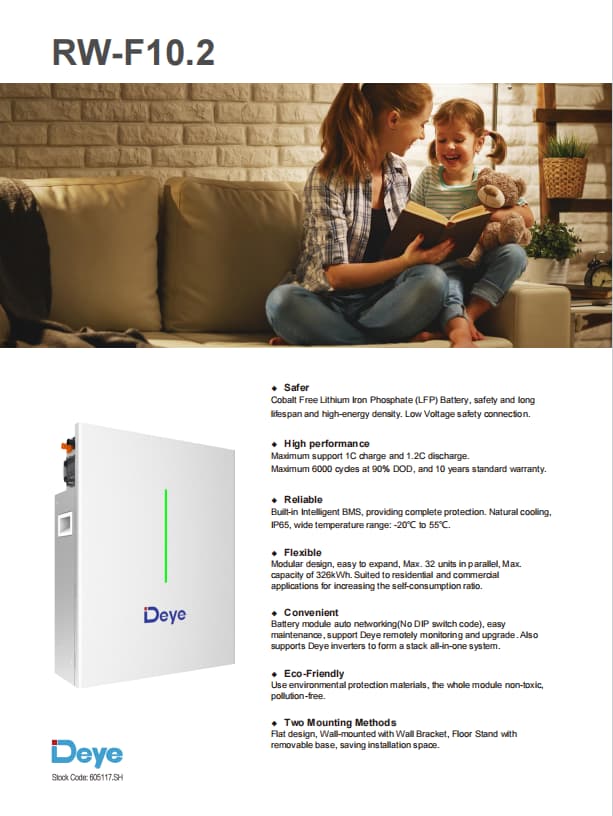

Deye RW-F10.2 LiFePO4 16kWh 51.2V 314 Wall-Mounted All-In-One Home ESS Battery IP20 10-20kW Output Hybrid Grid

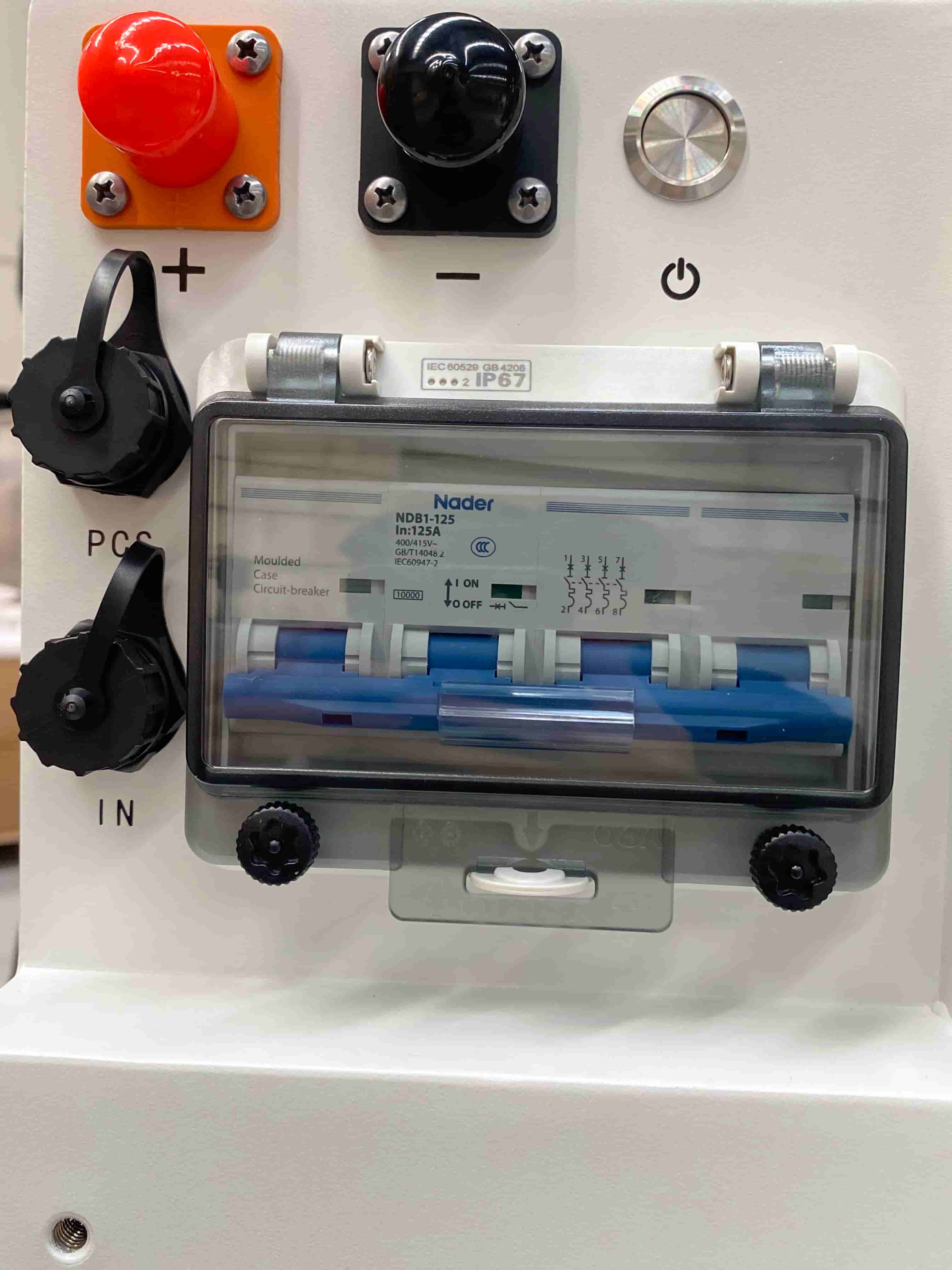

Battery Chemistry: LiFePO4 Built-in Circuit Breaker: 125A 2P, 60Vdc Scalability: Max. 32 pcs pack (Max.340kWh) in parallel Master LED Indicator: LED(SOC:20%~SOC100% and working state) Recommend Operating Temperature: 15℃~35℃ Cycle Life: ≥6000(25℃±2℃,0.5C/1C,90%DOD,70%EOL) Installation: Wall-Mounted Communication Port: CAN2.0, RS485 Warranty Period: 10 years

Battery Chemistry: LiFePO4 Built-in Circuit Breaker: 125A 2P, 60Vdc Scalability: Max. 32 pcs pack (Max.340kWh) in parallel Master LED Indicator: LED(SOC:20%~SOC100% and working state) Recommend Operating Temperature: 15℃~35℃ Cycle Life: ≥6000(25℃±2℃,0.5C/1C,90%DOD,70%EOL) Installation: Wall-Mounted Communication Port: CAN2.0, RS485 Warranty Period: 10 years

Battery Chemistry: LiFePO4 Built-in Circuit Breaker: 125A 2P, 60Vdc Scalability: Max. 32 pcs pack (Max.340kWh) in parallel Master LED Indicator: LED(SOC:20%~SOC100% and working state) Recommend Operating Temperature: 15℃~35℃ Cycle Life: ≥6000(25℃±2℃,0.5C/1C,90%DOD,70%EOL) Installation: Wall-Mounted Communication Port: CAN2.0, RS485 Warranty Period: 10 years

Brand Name: DEYE Model Number: BOS-G Pro Certification: CE/IEC62619 /VDE2510-50/ UL1973 /UL9540A/UN38.3 Weight: 290kg The charging ratio: 100% The discharge rate: 90% Battery type: Lifepo4 Battery Cell Warranty: 10 Years Installation Location: Rack Mounting IP Rating of Enclosure: IP20

Cell Chemistry: LiFePO4 Module Energy ( kwh ): 7.68 Module Nominal Voltage (V ): 38.4 Module Capacity (Ah): 200 Communication Port: CAN2.0 Humidity: 5%~85%RH Storage Temperature ( °C ): 0~35 Recommend Depth of Discharge: 90% Warranty: 10 years Certification: CE/IEC 62619/IEC62040/UN38.3/VDE-2510

Brand                                                    Deye Product Origin                                       China Module Nominal Voltage (V)                 51.2V Module Capacity ( Ah )                          100Ah Module Energy( kwh )                           5.12kwh Cell Chemistry                                       LiFePO4 Working Temperature (°C)                     Charge:0~55/Discharge:-20~55 IP Rating of Enclosure                           IP20 Warranty                                                10 years Cycle Life                                                6000+

Battery Module Energy ( kWh ): 14.3 Battery Module Nominal Voltage ( V ): 51.2 Battery Module Capacity ( Ah ): 280 Module Weight Approximate ( kg ): 122 Scalability: 5 ~ 15 System Nominal Voltage ( V ): 768 System Energy ( kWh ): 214.5 System Usable Energy ( kWh ): 193.05 Storage Temperature ( ℃ ): 0 ~ 35

Cell Chemistry: LiFePO4 Module Energy (kWh): 5.12 System Nominal Voltage (V): 614.4 System Energy (kWh): 61.44 Communication Port: CAN2.0/RS485 Humidity: 5%~85%RH IP Rating of Enclosure: IP55 Installation Location: Rack Mounting Cycle Life: 25°C±2°C, 0.5C/0.5C, EOL70%≥6000 Warranty: 10 Years
