Koodsun Commercial INVT XG3-15KW Three-Phase On-Grid Solar Inverters -Koodsun
Koodsun Commercial INVT XG3-15KW Three-Phase On-Grid Solar Inverters -Koodsun

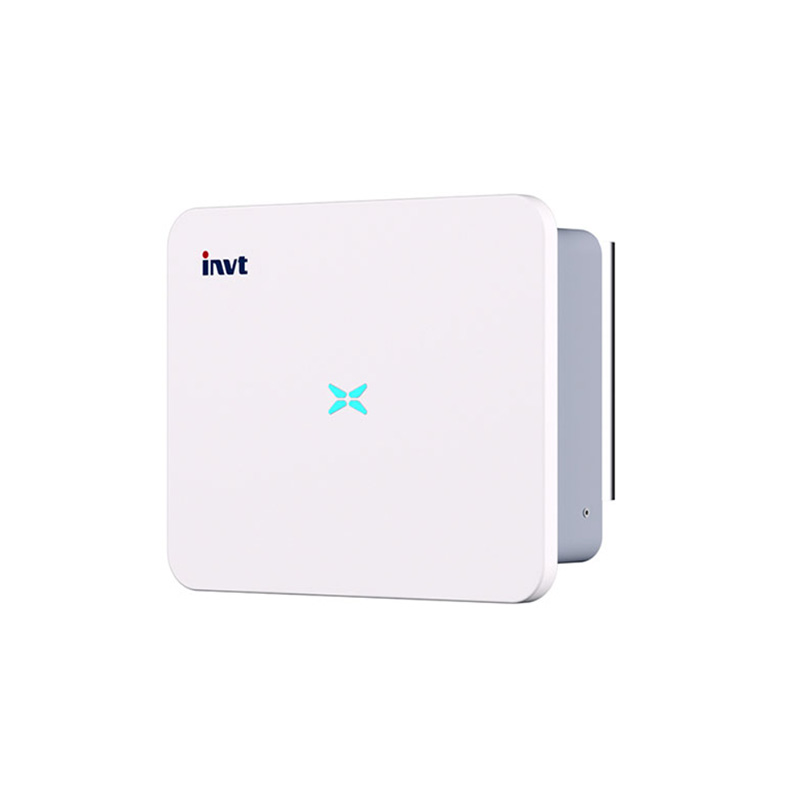

Koodsun Commercial INVT XG3-15KW Three-Phase On-Grid Solar Inverters

INVT XG3-15KW

Place of Origin
Anhui, China



Brand Name
INVT



Model Number
INVT XG3-15KW



Input Voltage
600V



Output Voltage
230Vac / 400Vac, 3L / N / PE



Output Current
12.8A



Output Frequency
50/60Hz



Size
422* 702*281mm



Certificate
CE TUV



Warranty
5 years&10 years



Weight
12kg

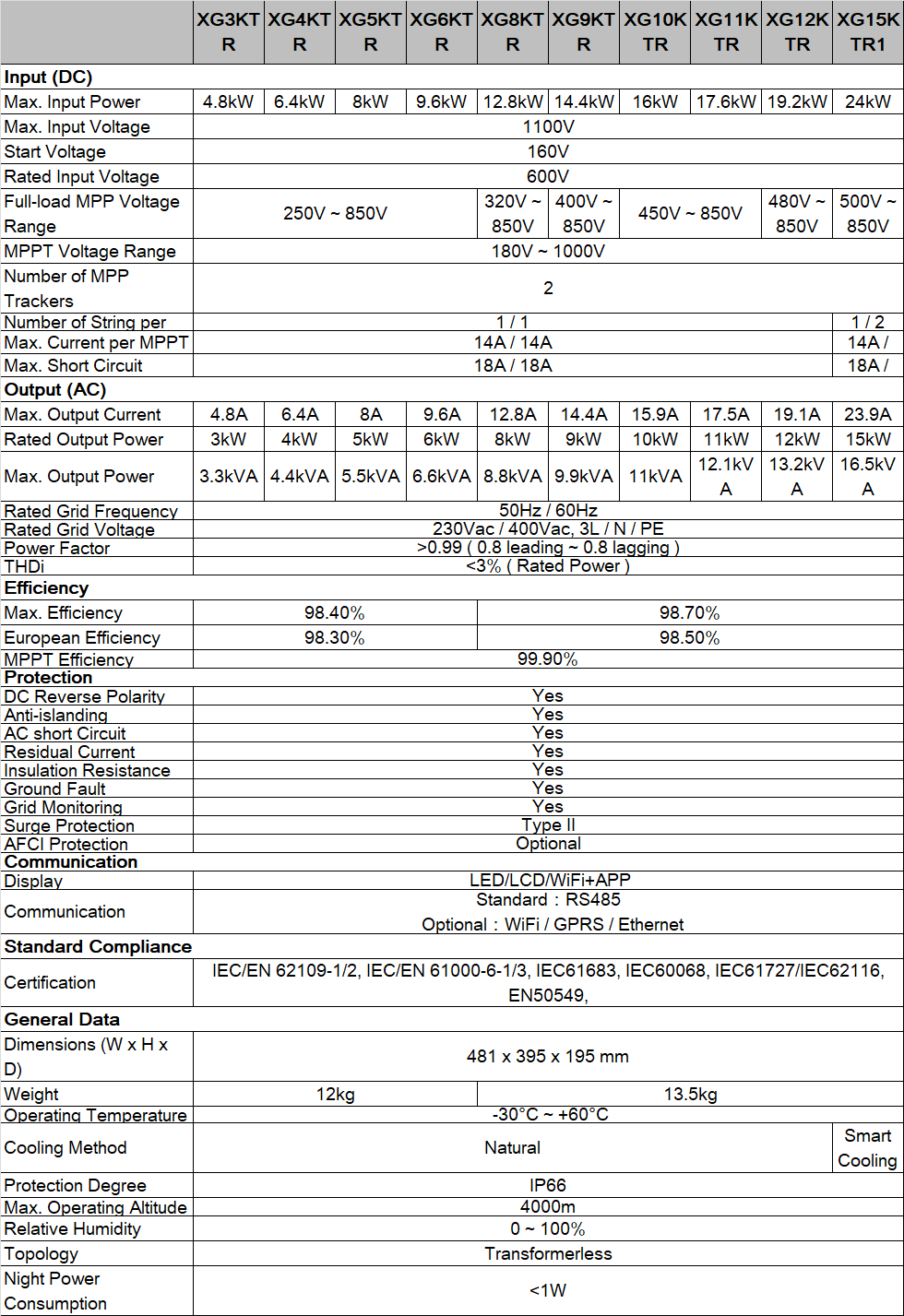

Datasheet

Efficient
Higher Revenue
2MPP Trackers, high single circuit tracking accuracy, fast dynamic response
160% DC Input Oversizing
Wide MPPT voltage range: 180V-1000V
Compatible with high power modules

Intelligent
Simple O&M
Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
Intelligent Fault Detection: ac-side voltage and current waveforms real-time recorded, fast fault location
Support RS485/USB (WiFi/GPRS/Ethernet optional): remote monitoring and operation via PC or mobile phones

Reliable
Worry Free
IP66 Protection degree: support outdoor installation
DC & AC Type II SPD: prevent lightning damage
AFCI Function (Optional): when an arc-fault is detected the inverter immediately stops operation

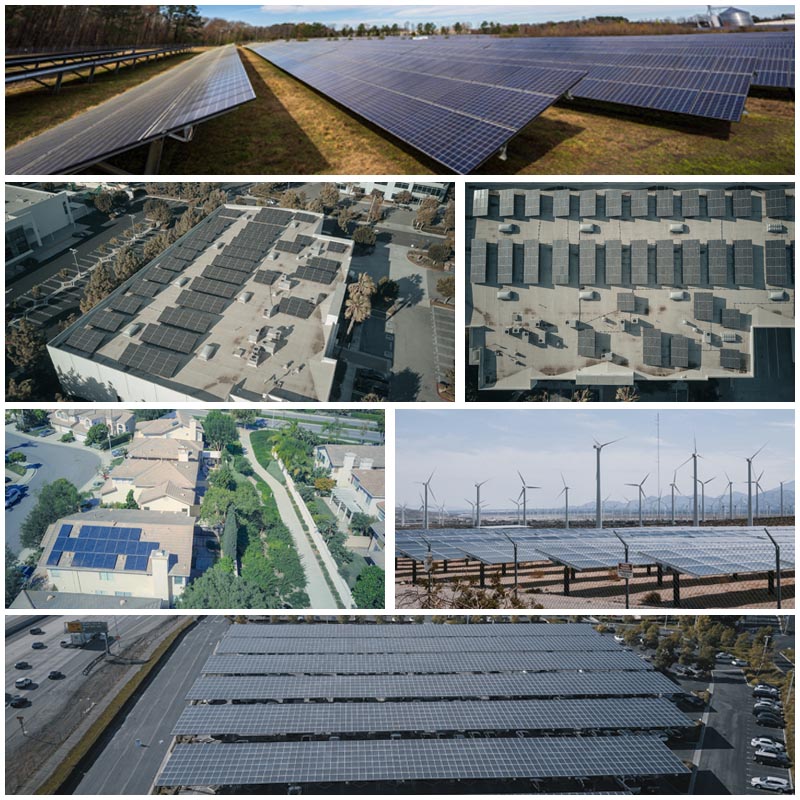

Project
