Kooodsun SRNE 48v 12kw 220/230v three Phase Solar Off-grid Hybrid Inverter -Koodsun

Kooodsun SRNE 48v 12kw 220/230v three Phase Solar Off-grid Hybrid Inverter



Place of Origin
Guangdong, China



Brand Name
SRNE



Model Number
HES120SH3



Input Voltage
48VDC



Output Voltage
220/230/240VAC



Output Current
15A



Output Frequency
50Hz/60Hz



Size
620*550*230mm



Certificate
CE,Rohs,ISO,IEC



Warranty
2 years



Weight
35kg

Datasheet

MODEL
HES80SH3
HES100SH3
HES120SH3
CAN BE SET
INVERTER OUTPUT
Rated Output Power
8800W
10000W
12000W

Max.Peak Power
8,800VA
11,000VA
13,200VA

Rated Output Voltage
230Vac (single-phase)

Rated AC Frequency
50/60Hz

Waveform
pure sine wave

BATTERY
Battery Type
Lead-acid / Li-ion / User Defned
Rated Battery Voltage
48V

Voltage Range
125~600Vdc

Max. Charging Current
37.5A
Max. Discharging Current
37.5A
PV INPUT
Num. of MPPT Trackers
2

Max. DC Input Power
6000W+6000W
7500W+7500W
9000W+9000W

Max. PV Input Voltage
1000V+1000V

PV Input Current
15A+15A

MPPT Voltage Range
180-850Vdc

Min. PV Input Voltage/Start-up Voltage
125V/180V

MAINS/GENERATOR INPUT
Rated input Frequency and Voltage
50/60Hz, 3L+N+PE,220/380V;230/400V;240/415V

Rated apparent power
16000W
20000W
24000W

Max.input Rated apparent power from grid
13200W
17600W
22000W

Max. grid Intput Current
255A
31.9A
38.2A

EFFICIENCY
MPPT Tracking Efficiency
99.9%

Max.Efficiency
97.2%
97.5%

European Effciency
97.9%
98.3%

GENERAL




Dimensions
620*550*230mm

Weight
35kg

Protection Degree
IP65

Operating Temperature Range
-15°C-55C(F~F)

Warranty
5 years

COMMUNICATION
Embedded Interfaces
RS485 / CAN
External Modules (Optional)
Wi-Fi / GPRS
CERTIFACATION
Safety
IEC62109-1,IEC62109-2,CE1-021,VDE4105,VDE0124
EMC
EN61000-6-1,EN61000-6-3,FCC 15 class B

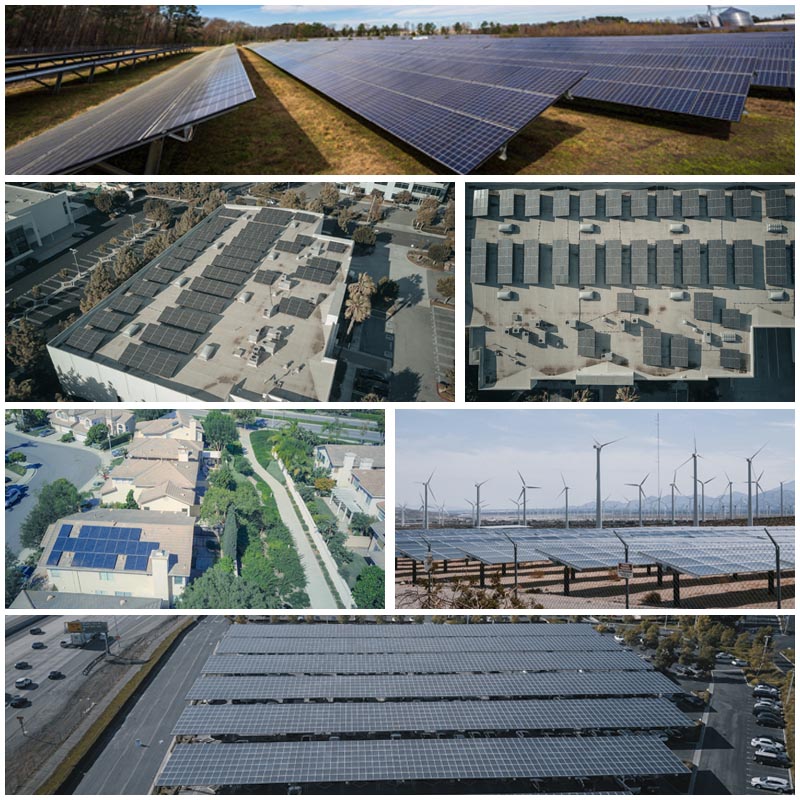

Project
