SOLAR INVERTER
Home /SOLAR INVERTER /Growatt 50KW 60KW 70KW 100KW 115KW 120KW 125KW On Grid Solar Inverters 3 Phase 380V 400V Price
Growatt  50KW 60KW 70KW 100KW 115KW 120KW 125KW On Grid Solar Inverters 3 Phase 380V 400V Price -Koodsun

Growatt 50KW 60KW 70KW 100KW 115KW 120KW 125KW On Grid Solar Inverters 3 Phase 380V 400V Price

  • Brand:

    KOODSUN OR OEM SERVICE
  • Product Origin:

    China
  • Shipping Port:

    Ningbo, Shanghai, Shenzhen
  • Lead Time:

    7-15days
  • Power Ranger:

    50KW-125KW
  • Type:

    On Grid
  • Output Voltage :

    380-415V
  • Item No:

    Three Phase
  • Certification:

    CE, TUV, IEC, UL, VDE,,,,Etc
  • Lead Time:

    15days
  • Warranty:

    5-10 Years

Growatt  50KW 60KW 70KW 100KW 115KW 120KW 125KW On Grid Solar Inverters 3 Phase 380V 400V Price





Model MAX 50KW MAX 60KW MAX 70KW MAX 100KW MAX 110KW MAX 120KW MAX 125KW
Max Input Power 50KW 60KW 70KW 100KW 110KW 120KW 125KW
Max DC Input Voltage 1100V
Start-up Input Voltage 250V 250V 250V 195V 195V 195V 195V
Nominal Grid Voltage                                                                    230/400V
Nominal Frequency 50/60Hz
Grid Connection                                                                       Three Phase
No. of MPP Trackers 3 3 3 10 10 10 10
Max. input current per MPP tracker 26A 26A 26A 32A 32A 32A 32A
Max. short-circuit current
per MPP tracker
16A 32/16A 32A 32A/48A 45A 55A 55A
Max output current 66A 97A 113A 167A 183A 200A 208A
Max Efficiency 98.8% 98.8% 98.8% 98.8% 98.8% 98.8% 98.8%
MPPT Efficiency                                                99.9%
Protection PV array insulation protection, PV array leakage current protection, Ground fault monitoring, Grid Monitoring, Island protection, DC monitoring, Short current protection etc.
Communication Interface                                                           RS485(standard); WIFI
Certification IEC 62116, IEC61727, IEC61683, IEC60068, CE, CGC, AS4777, VDE4105, C10-C11, G83/G59
Warranty    5years, 10years
Temperature Range -25℃ to +60℃
DC Terminal Waterproof Terminals
Demension(H*W*D mm) 650/508/281 650/508/281 650/508/281 970/640/345 970/640/345 970/640/345 970/640/345
Approx Weight 52kg 52kg 52kg 84kg 84kg 84kg 84kg



DESCRIPTION:

High-yield

Max.efficiency 98.8%

40% compact and lighter

Wide input voltage operation range from 200V to 1100V

All in one. Flexible and economical system solution

Dual MPP trackers

OLED and Touch button

DC Switch

Low maintenance cost

High powered density

Rust-free aluminum covers

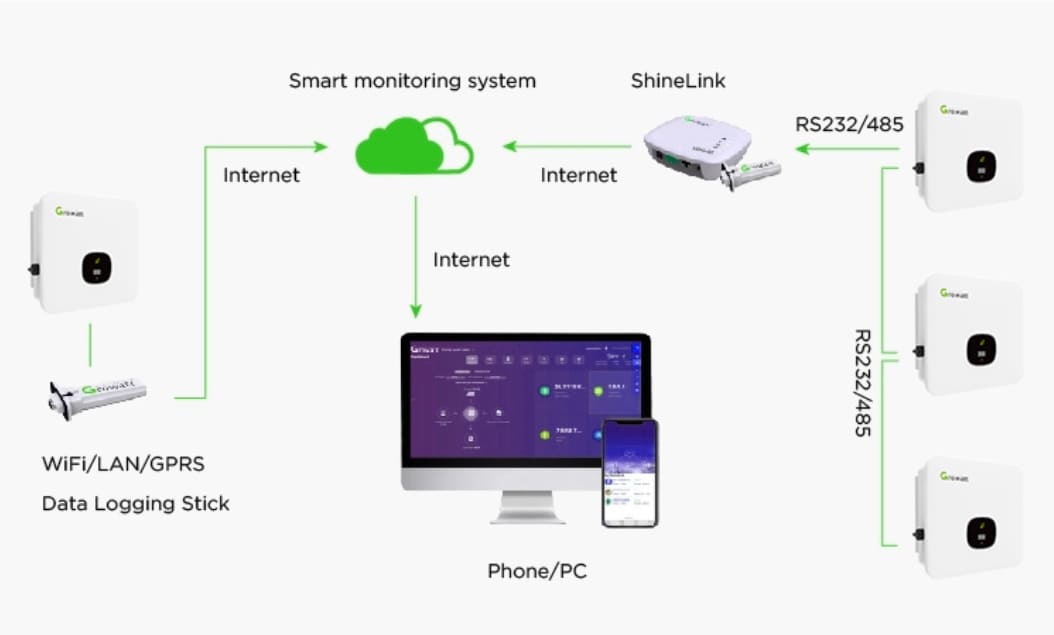

Flexible monitorings solution

Small size,Light weight

Intelligent grid management

Reactive power adjustable

Self power reducer when over frequency

Remote active/reactive power limit control

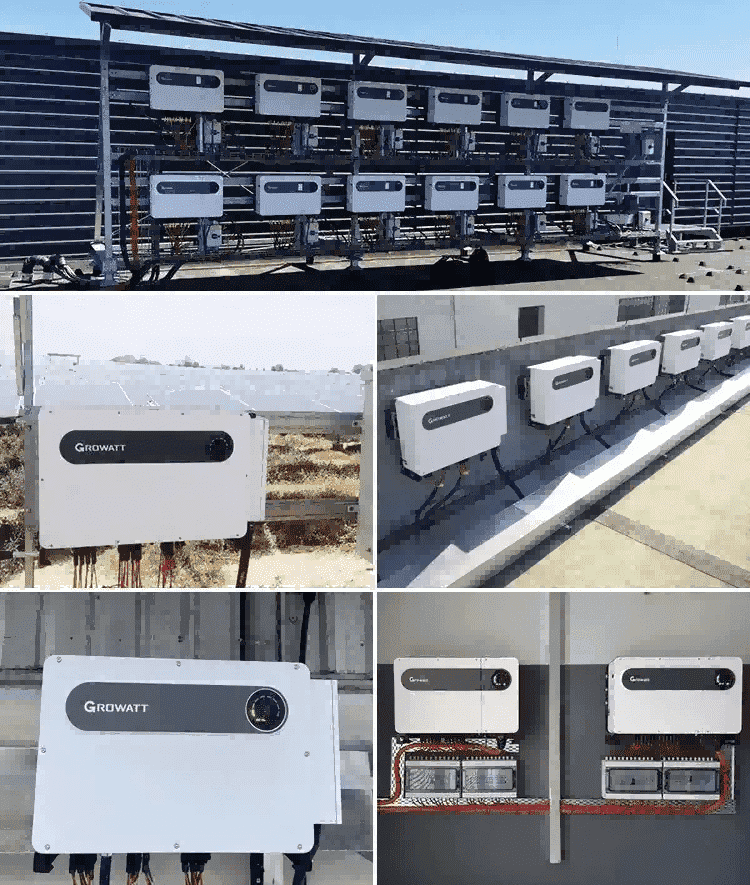

Our Company Growatt Inverter Projects for Reference

One stop solution for solar power system.

For more information, please feel free to contact our team

Email:steve@koodsun.com



Whatsapp: +8613966581702

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
