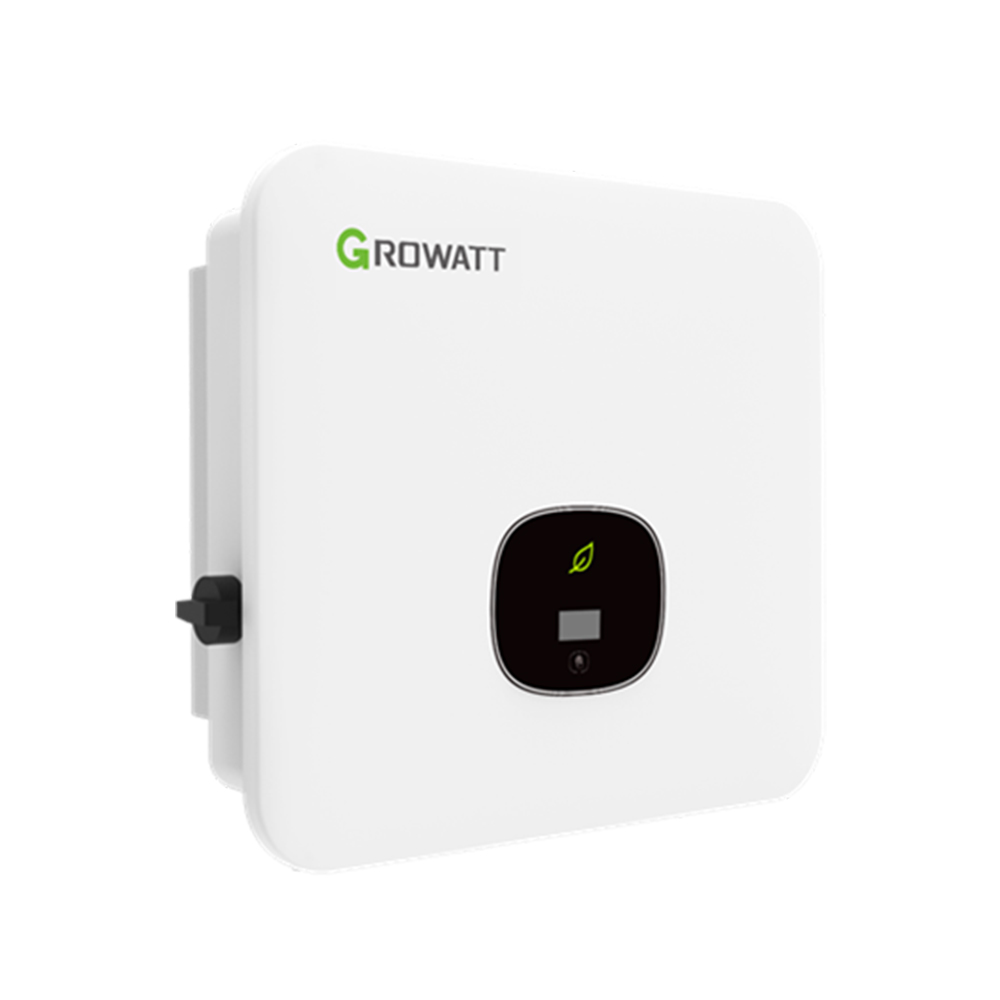

Growatt MOD 3-15KTL3-X inverter 3-15KW on grid solar system for home use three phase



Power: 3KW/4KW/5KW/6KW/7KW/8KW/9KW/10KW/11KW/12KW/13KW/15KW
MPPT Voltage Range: 140V-1000V
Size: 425/387/147mm or 425/387/178mm
Lead time: About 10 days
Payment: T/T
Warranty: 5/10 Years

Product Description





The Growatt MOD 3-15KTL3-X series is a popular on grid inverter for home use and is easy to install.







Datasheets

  MOD 3KTL3-X MOD 5KTL3-X MOD 6KTL3-X MOD 8KTL3-X MOD 10KTL3-X MOD 11KTL3-X MOD 12KTL3-X MOD 13KTL3-X MOD 15KTL3-X
Input data(DC
Max. recommended PV power (for module STC)  4500W 7500W 9000W 12000W 15000W 16500W 18000W 19500W 22500W
Max. DC voltage 1100V
Start voltage 160V
Nominal voltage 580V
MPPT voltage range 140V-1000V
No. of MPPT trackers 2
No. of PV strings per MPP tracker 1 1/2
Max. input current per MPP tracker 13A 13/26A
Max. short-circuit current per MPP tracker 16A 16/32A
Output data (AC)
AC nominal power 3000W 5000W 6000W 8000W 10000W 11000W 12000W 13000W 15000W
Max. AC apparent power 3300VA 5500VA 6600VA 8800VA 11000VA 12100VA 13200VA 14300VA 16500VA
Nominal AC voltage(range*) 220V/380V, 230V/400V (340-440V)
AC grid frequency(range*) 50/60 Hz (45-55Hz/55-65 Hz)
Max. output current 5.0A 8.3A 10.0A 13.3A 16.7A 18.3A 20A 21.7A 25A
Adjustable power factor 0.8leading…0.8lagging
THDi  <3%
AC grid connection type 3W+N+P
Efficiency
MAX. efficiency 98.3% 98.6%
European efficiency 97.5% 98.1%  98.2%
MPPT efficiency 99.9%
Protection devices
DC reverse polarity protection Yes
DC Switch Yes
AC/DC surge protection Type II / Type II
Insulation resistance monitoring Yes
AC short-circuit protection Yes
Ground fault monitoring Yes
Grid monitoring  Yes
Anti-islanding protection Yes
Residual-current monitoring unit Yes
String fault monitoring  Yes
AFCI protection Optional
General data
Dimensions (W / H / D) 425/387/147mm 425/387/178mm
Weight 12.5kg 14kg  16kg
Operating temperature range –25°C ... +60°C
Nighttime power consumption < 1W
Topology Transformerless
Cooling  Natural convection
Protection degree IP66
Relative humidity 0~100%
Altitude 4000m
DC connection H4/MC4(Optional)
AC connection Connector
Display OLED+LED/WIFI+APP
Interfaces: USB/RS485/WiFi/GPRS/LAN/RF yes/yes/Optional/Optional/Optional/Optional
Warranty: 5 / 10 years

Yes/Optional



Packing





Projects





leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
Solar inverter

  Power: 3KW/4KW/5KW/6KW/7KW/8KW/9KW/10KW/11KW/12KW/13KW/15KW MPPT Voltage Range: 140V-1000V Size: 425/387/147mm or 425/387/178mm Lead time: About 10 days Payment: T/T Warranty: 5/10 Years

Learn More
Growatt SPF 3000-5000 ES inverter 3KW 3.5KW 5KW off grid storage inverter for home use single phase -Koodsun

  Brand Koodsun Product Origin China Shipping Port Ningbo, Shanghai, Shenzhen Lead time  7-15days Type Off Hybrid Output voltage 110V-240V Item No 1 Phase, 2 Phase Lead time 10days Warranty 3 Years

Learn More

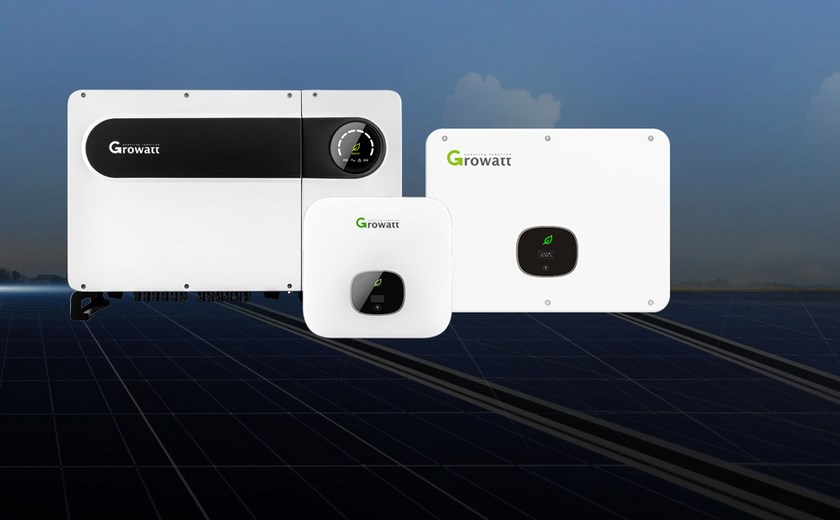

koodsun growatt inverter

  Brand Growatt Product Origin China Shipping Port Ningbo, Shanghai, Shenzhen Lead time  7-15days Time On Grid Item No 3 Phase Lead time 10days Warranty 10Years

Learn More

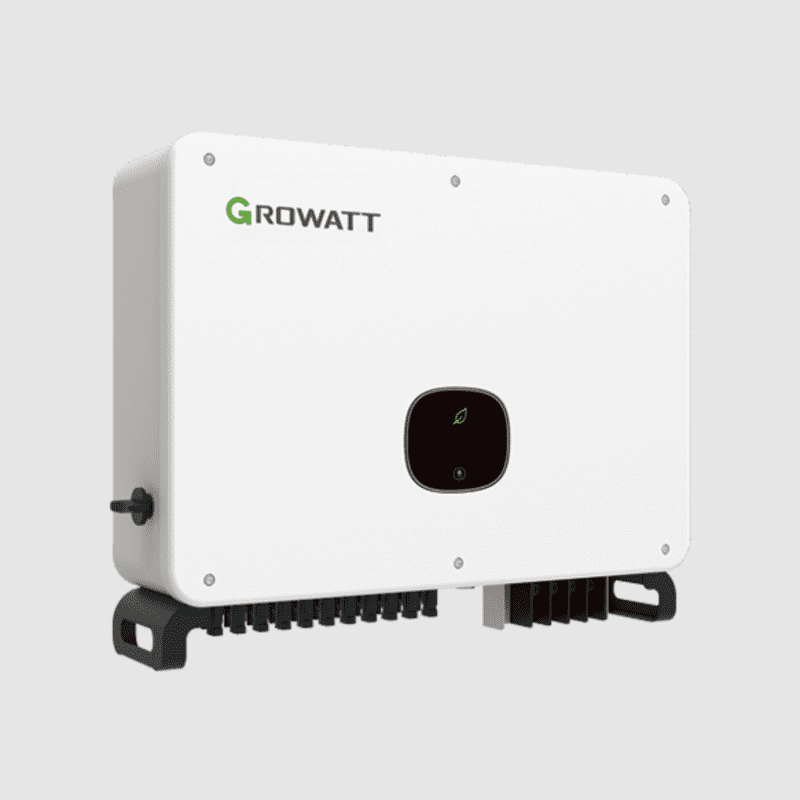

Growatt MAX100~125KTL3-X LV 10 MPPTs Three Phase Solar Inverter for Commercial or Industrial -Koodsun

Brand Koodsun Product Origin China Shipping Port Ningbo, Shanghai, Shenzhen Output Voltage 380-415V Type On grid Power Ranger 100KW - 125KW Item No 3 Phase Lead time 15 days Warranty 5/10 Years

Learn More
Koodsun inverter

  Brand Growatt Product Origin China Shipping Port Ningbo, Shanghai, Shenzhen Lead time  7-15days Time On Grid Item No 3 Phase Lead time 10days Warranty 10Years

Learn More
Growatt MAC 50KTL3-X LV EU Version 50KW AC On Grid Solar Inverter For Solar Power Storage System -Koodsun

MAC 50KTL3-X LV MAC 60KTL3-X LV Place of Origin Shenzhen   Brand Name Growatt   Model Number MAC 50KTL3-X LV   Input Voltage 250V   Output Voltage 230V/400V (340-440V)   Output Current 80.5A/96.6A   Output Frequency 50Hz/60Hz   Size 680*508*1281mm   Certificate CE Rohs   Warranty 5 years   Weight 52kg

Learn More

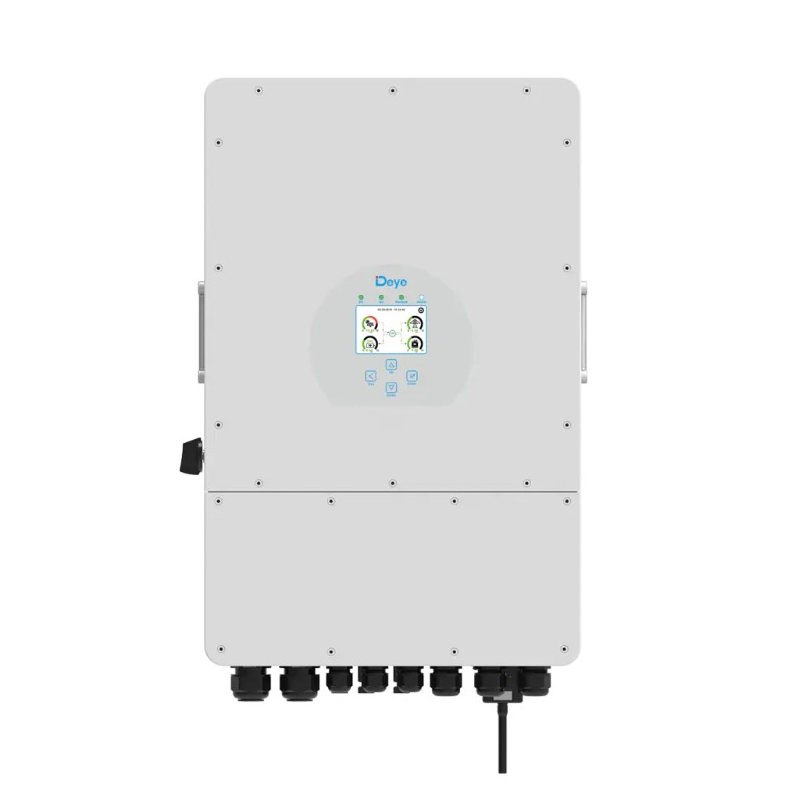

DEYE SUN-5/6/8/10/12K-SG04LP3-EU  5-12kW Three Phase  2 MPPT   Low Voltage Battery  Hybrid Inverter -Koodsun

Place of Origin China Brand Name Deye Model Number SUN-5/6/8/10/12K-SG04LP3-EU Weight 33.6kg Application Hybrid Solar System

Learn More

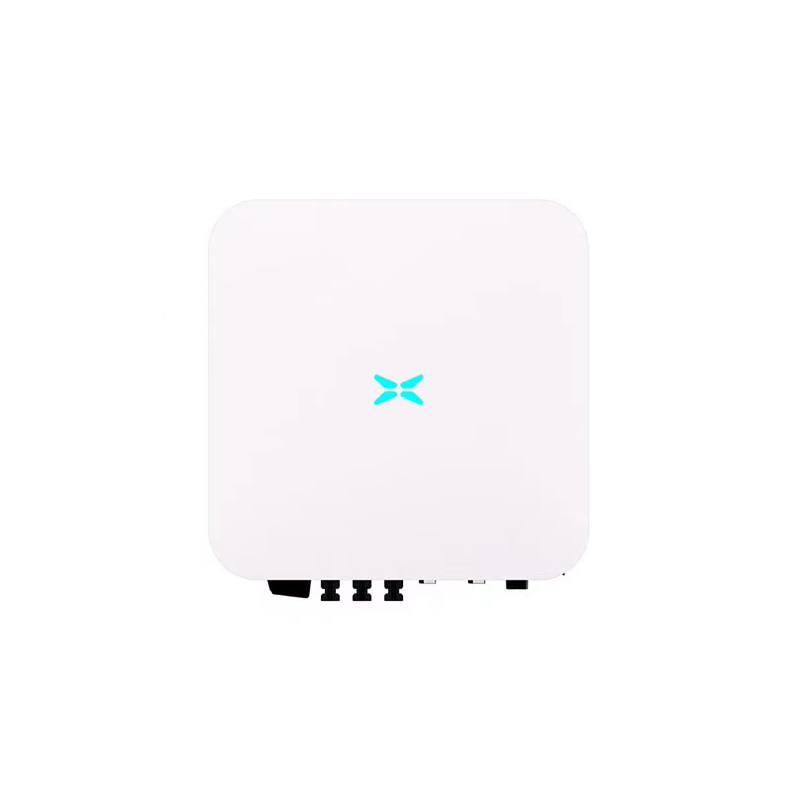

INVT XG3-10kW Single-phase On-grid Solar Inverter with small size, light weight and easy installation -Koodsun
