On-Grid Inverter
Home /On-Grid Inverter /Growatt MID 15-25KTL3-X on grid for commercial and industrial PV Inverter with Three Phase
Growatt MID 15-25KTL3-X on grid for commercial and industrial PV Inverter with Three Phase -Koodsun

Growatt MID 15-25KTL3-X on grid for commercial and industrial PV Inverter with Three Phase



Brand Growatt
Product Origin China
Shipping Port Ningbo, Shanghai, Shenzhen
Lead time  7-15days
Time On Grid
Item No 3 Phase
Lead time 10days
Warranty 10Years



Product Description

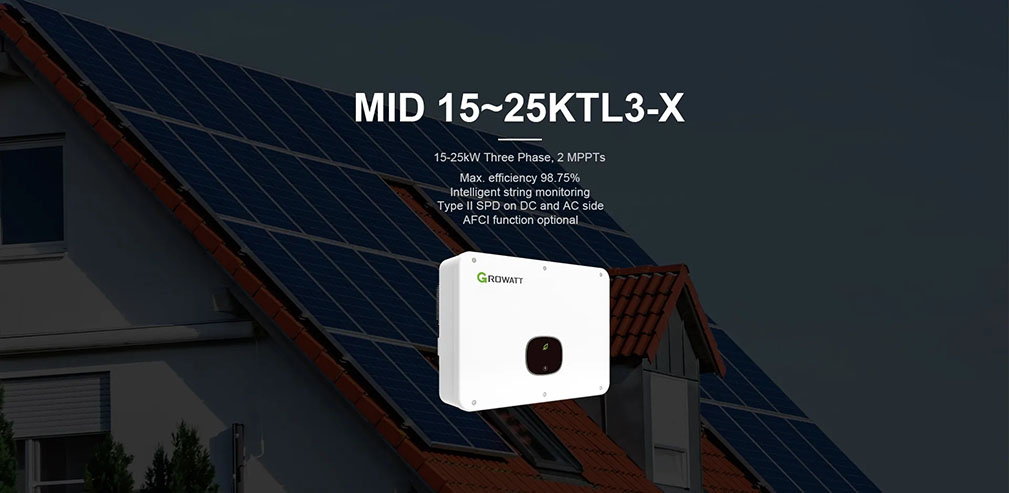

Growatt MID 15-25KTL3-X 15KW 17KW 20KW 22KW 25KW on grid inverter with 2 MPPTs for solar system

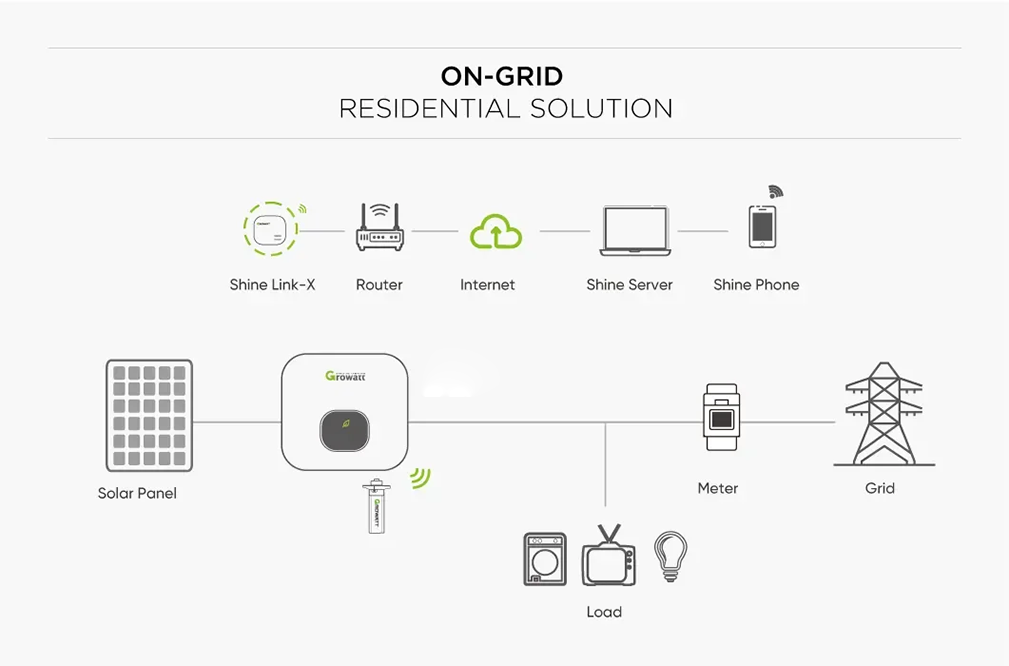

Working Diagrams







Datasheets



Model MID 15KW MID 17KW MID 20KW MID 22KW MID 25KW
Max Input Power 15000W 17000W 20000W 22000W 25000W
Max DC Input Voltage 1100V
Start-up Input Voltage 250V 250V 250V 250V 250V
Nominal Grid Voltage 200V-1000V
Nominal Frequency 50/60Hz
Grid Connection Three Phase
No. of MPP Trackers 2 2 2 2 3
Max. input current per MPP tracker 27A 27A 27A 27A 27A
Max. short-circuit current
per MPP tracker
33.8A 33.8A 33.8A 33.8A 33.8A/50.7A
Max output current 24.2A 27.4A 31.9A 40.2A 40.2A
Max Efficiency 98.6% 98.6% 98.6% 98.6% 98.6%
MPPT Efficiency 99.9%
Protection PV array insulation protection, PV array leakage current protection, Ground fault monitoring, Grid Monitoring, Island protection, DC monitoring, Short current protection etc.
Communication Interface                            RS485(standard); WIFI
Certification IEC 62116, IEC61727, IEC61683, IEC60068, CE, CGC, AS4777, VDE4105, C10-C11, G83/G59
Warranty  10years
Temperature Range -25℃ to +60℃
DC Terminal Waterproof Terminals
Demension(H*W*D mm) 525/395/222mm
Approx Weight 23kg

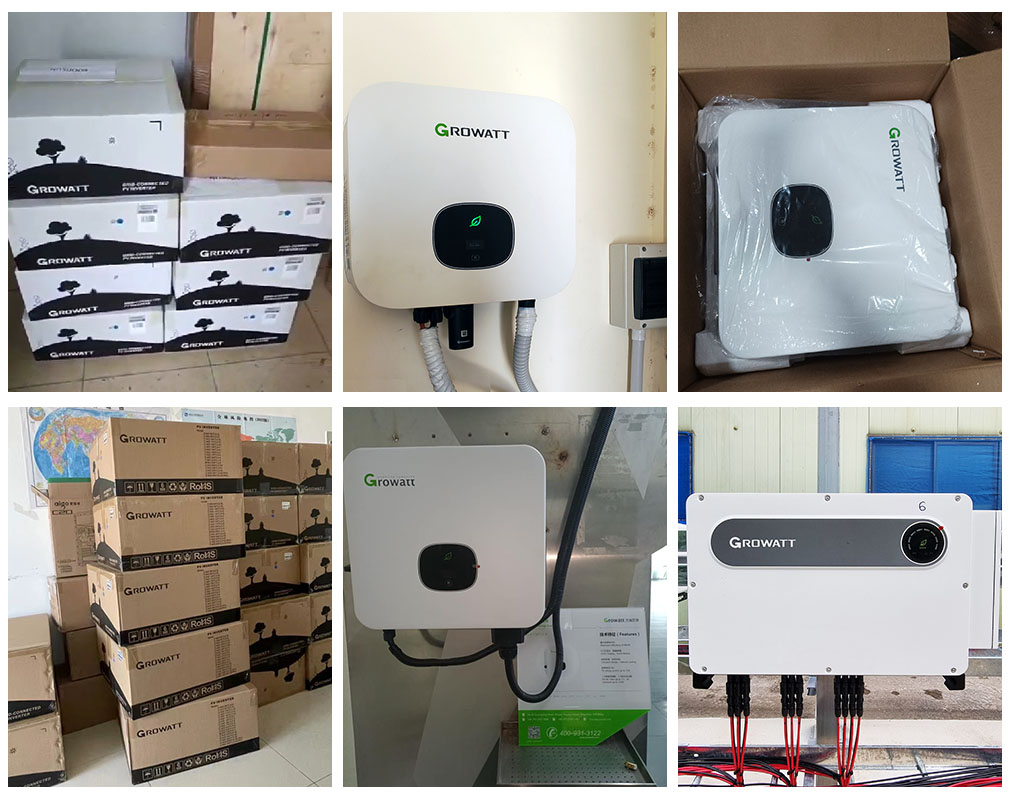

Progam&Packing
