Growatt MAC 50KTL3-X LV EU Version 50KW AC On Grid Solar Inverter For Solar Power Storage System -Koodsun

Growatt MAC 50KTL3-X LV EU Version 50KW AC On Grid Solar Inverter For Solar Power Storage System

MAC 50KTL3-X LV

MAC 60KTL3-X LV

Place of Origin
Shenzhen



Brand Name
Growatt



Model Number
MAC 50KTL3-X LV



Input Voltage
250V



Output Voltage
230V/400V (340-440V)



Output Current
80.5A/96.6A



Output Frequency
50Hz/60Hz



Size
680*508*1281mm



Certificate
CE Rohs



Warranty
5 years



Weight
52kg
Datasheet
MAC 50KTL3-XLV
MAC 60KTL3-XLV

Inputu Data(DC)
Max. recommended PV
power(for module STC)
75000w
90000W
Max.DC voltage
1100V
Start voltage


Nominal voltage
600V
600V
MPPT voltage range
200V-1000V

No.of MPP tackers
200V-1000V

No.of PV stings per MPP tracker
4/3/3
4/4/4
Max. input curent per MPP tacker
52A/39A/39A
52A/52A/52A
Max, shor-circuit current
per MPP fracker
55A
Output Data(AC)
Rated AC output power
50000W
60000W
Max.AC apparent power
55500VA
66600VA
Nominal AC voltage(range*)
230V/400V (340-440v)
230V/400V (340-440V)
AC gid frequency(ange*)
50/60 Hz(45-55Hz/55-65 H2)

Max.ouiput curent
80.5A
96.6A
Adjustable power factor
0.8leading …0.8lagging
THDi
<3%
AC giid connection type
3W+N+PE
3W+N+PE
Efficiency
Max. efficiency
98.8%
European eflclency
98.5%
MPPT efficiency
99.9%
Protection Devices
DC reverse polarity protection
Yes
DC switch
Yes
AC/DC surge protection
Typell / Type II
Insulation resistance monitorng
Yes
AC shor-circuit protection
Yes
Ground fault moniforing
Yes
Gid monitoing
Yes
Anti-slanding protection
Yes
Residual-curent monitoring unit
Yes
General Data
DimensionsW/H/D)
680/508/281mm
Welght
52kg
Operating temperature range
-25℃…+60℃
Nightime power consumption
<1W
Topologv
Tianstormetless
Cooling
Smart air coolng
Protection degree
IP65
Relative humidliy
0~100%
Allitude
4000m
DC connection
H4/MC4(Optional)
AC connection
Cable gland+OT terminal
Display
OLED+LEDMIFI+APP
Interfaces: RS485/USB
WiFi/GPRS /RF
Yes/es /Optional/Opitional/Optional
Warranty: 5 years /10 years
Yes/Optional



packing



leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
Growatt MOD 3-15KTL3-X inverter 3-15KW on grid solar system for home use three phase -Koodsun

  Power: 3KW/4KW/5KW/6KW/7KW/8KW/9KW/10KW/11KW/12KW/13KW/15KW MPPT Voltage Range: 140V-1000V Size: 425/387/147mm or 425/387/178mm Lead time: About 10 days Payment: T/T Warranty: 5/10 Years

Learn More
Growatt MID 15-25KTL3-X on grid for commercial and industrial PV Inverter with Three Phase -Koodsun

  Brand Growatt Product Origin China Shipping Port Ningbo, Shanghai, Shenzhen Lead time  7-15days Time On Grid Item No 3 Phase Lead time 10days Warranty 10Years

Learn More
Growatt MAX100~125KTL3-X LV 10 MPPTs Three Phase Solar Inverter for Commercial or Industrial -Koodsun

Brand Koodsun Product Origin China Shipping Port Ningbo, Shanghai, Shenzhen Output Voltage 380-415V Type On grid Power Ranger 100KW - 125KW Item No 3 Phase Lead time 15 days Warranty 5/10 Years

Learn More
Koodsun Growatt  25KW 30KW 33KW 36KW On Grid Three Phase 25~40kw Inverter with 3-4 MPPT cahrge controller for solar power station commercial projects -Koodsun

  Brand Growatt Product Origin China Shipping Port Ningbo, Shanghai, Shenzhen Lead time  7-15days Time On Grid Item No 3 Phase Lead time 10days Warranty 10Years

Learn More
Growatt WIT 50-100kW Hybrid Inverter 50kw 63kw 75kw 100kw WIT 50-100K-H/HU UPS -Koodsun

  Brand Koodsun Product Origin China Shipping Port Ningbo, Shanghai, Shenzhen Lead time  7-15days Type Off Grid/ hybrid Output voltage 110V-240V Item No 3 Phase Lead time 10days Warranty 10 Years

Learn More
Deye Hybrid 3 Phase Solar Inverter 10KW 12KW 380V 400V 60HZ residential Inverters  Low  Voltage -Koodsun

SUN-10K-SG04LP3-EU SUN-12K-SG04LP3-EU Brand:                  Koodsun Product Origin: China Shipping Port: Ningbo, Shanghai, Shenzhen Type: Hybrid Output Voltage : 360-440V 60hz Item No: 3Phase Voltage : DC 48V Certification: CE, TUV, IEC, UL, VDE,,,,Etc Lead Time: 10-20days Warranty: 10 Years

Learn More
Growatt MAC 50KTL3-X LV EU Version 50KW AC On Grid Solar Inverter For Solar Power Storage System -Koodsun

MAC 50KTL3-X LV MAC 60KTL3-X LV Place of Origin Shenzhen   Brand Name Growatt   Model Number MAC 50KTL3-X LV   Input Voltage 250V   Output Voltage 230V/400V (340-440V)   Output Current 80.5A/96.6A   Output Frequency 50Hz/60Hz   Size 680*508*1281mm   Certificate CE Rohs   Warranty 5 years   Weight 52kg

Learn More

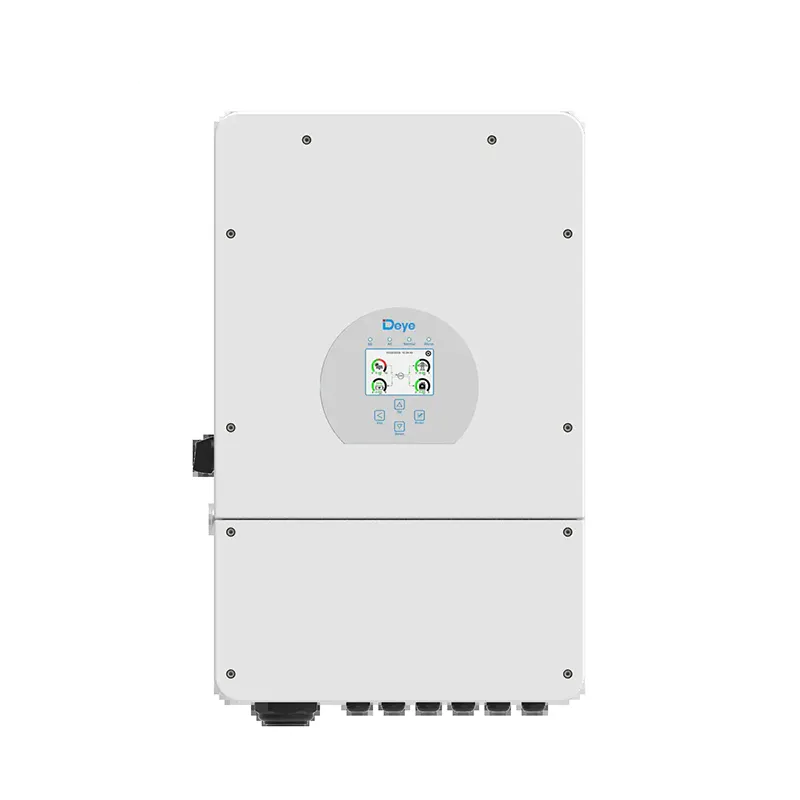

DEYE SUN-5/6/8/10/12K-SG04LP3-EU  5-12kW Three Phase  2 MPPT   Low Voltage Battery  Hybrid Inverter -Koodsun
