Growatt MAX100~125KTL3-X LV 10 MPPTs Three Phase Solar Inverter for Commercial or Industrial -Koodsun
Growatt MAX100~125KTL3-X LV 10 MPPTs Three Phase Solar Inverter for Commercial or Industrial -Koodsun

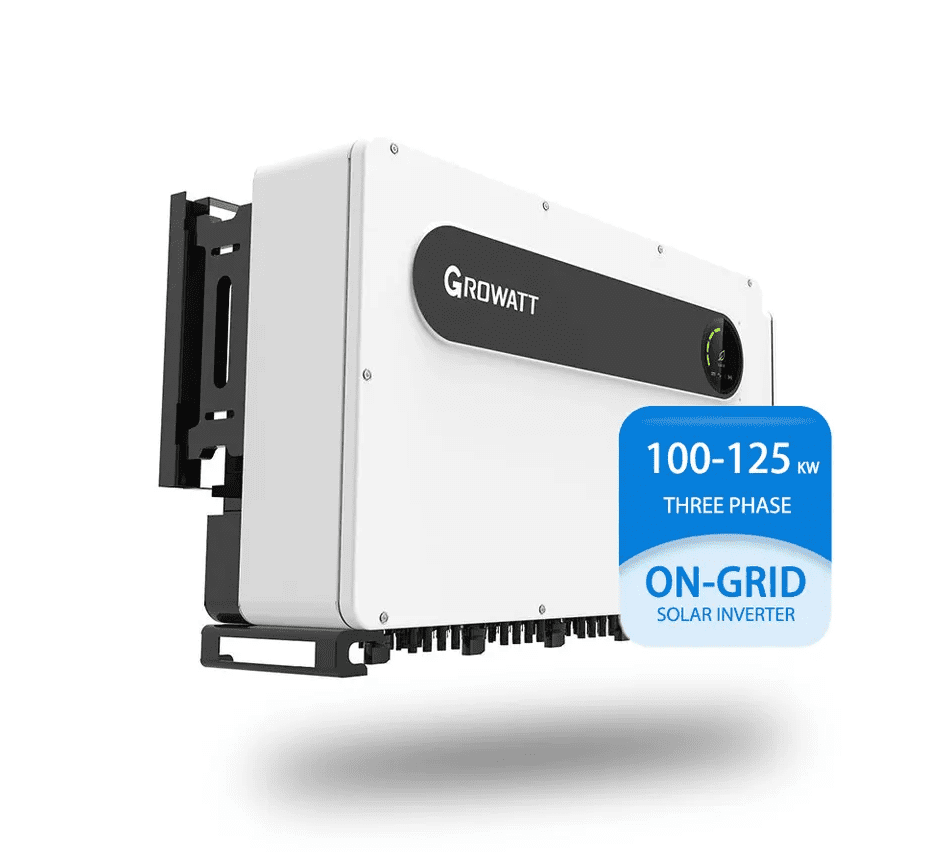

Growatt MAX100~125KTL3-X LV 10 MPPTs Three Phase Solar Inverter for Commercial or Industrial



  • Brand

    Koodsun
    Product Origin China
    Shipping Port Ningbo, Shanghai, Shenzhen
    Output Voltage 380-415V
    Type On grid
    Power Ranger 100KW - 125KW
    Item No 3 Phase
    Lead time 15 days
    Warranty 5/10 Years

Product Description



Growatt  MAX100~125KTL3-X LV 100/110/120/125 KW 10 MPPTs on grid commercial large solar inverter

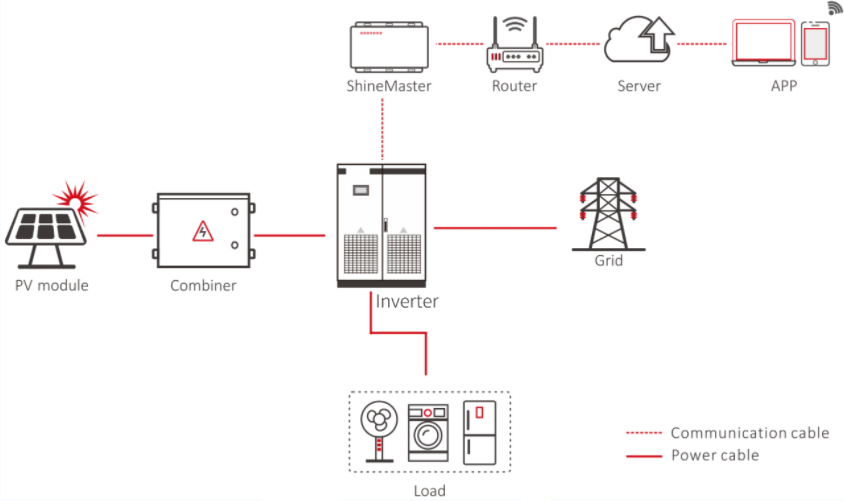

Working Diagrams



Datasheets



Model MAX 100KW MAX 110KW MAX 120KW MAX 125KW
Max Input Power 100KW 110KW 120KW 125KW
Max DC Input Voltage 1100V
Start-up Input Voltage 195V 195V 195V 195V
Nominal Grid Voltage                                    230/400V
Nominal Frequency 50/60Hz
Grid Connection                                   Three Phase
No. of MPP Trackers 10 10 10 10
Max. input current per MPP tracker 32A 32A 32A 32A
Max. short-circuit current
per MPP tracker
32A/48A 45A 55A 55A
Max output current 167A 183A 200A 208A
Max Efficiency 98.8% 98.8% 98.8% 98.8%
MPPT Efficiency  99.9%
Protection PV array insulation protection, PV array leakage current protection, Ground fault monitoring, Grid Monitoring, Island protection, DC monitoring, Short current protection etc.
Communication Interface  RS485(standard); WIFI
Certification IEC 62116, IEC61727, IEC61683, IEC60068, CE, CGC, AS4777, VDE4105, C10-C11, G83/G59
Warranty    5years, 10years
Temperature Range -25℃ to +60℃
DC Terminal Waterproof Terminals
Demension(H*W*D mm) 970/640/345 970/640/345 970/640/345 970/640/345
Approx Weight 84kg 84kg 84kg 84kg

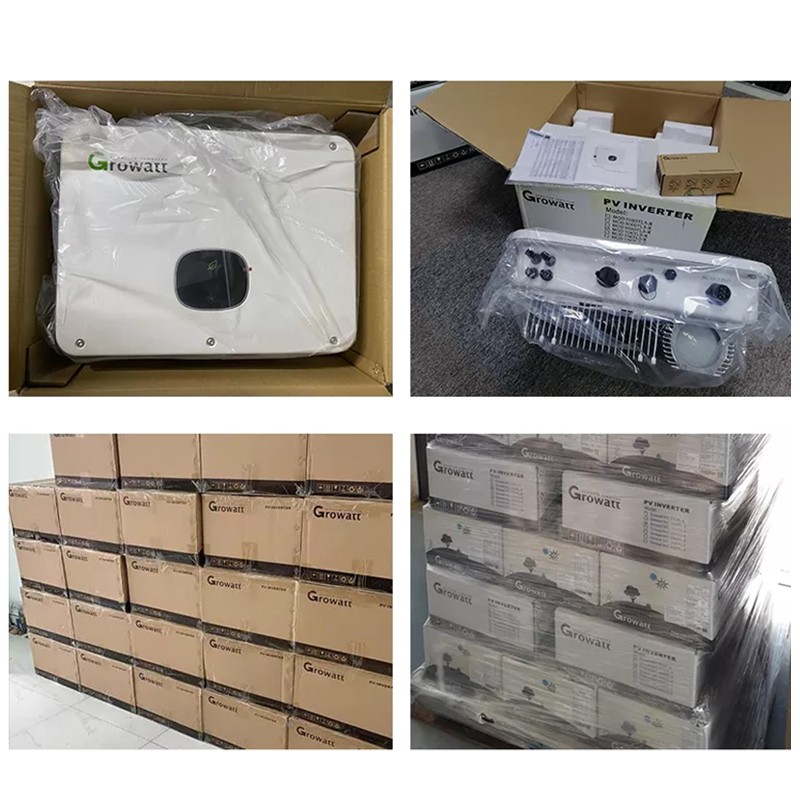

Packing
