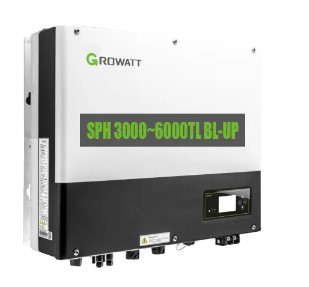

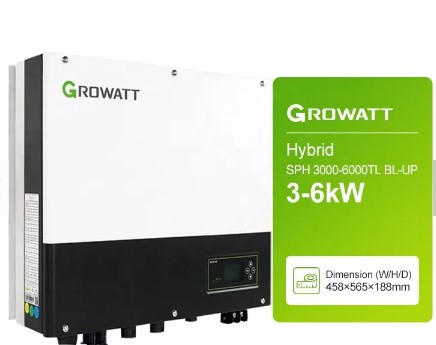

Growatt SPH 3000~6000TL BL-UP Storage Inverter Single Phase Hybrid Solar Inverter

Place of Origin
China
Brand Name
Growatt
Model Number
SPH 3000-6000TL BL-UP
Input Voltage
120V-550V /360V
Output Voltage
230V/(180V-270V)
Inquire Now

Product Description

- Support lithium and lead-acid battery

- VPP interface ready

- Smart load control via dry contact



Datasheet
SPH3000TL BL-UP
SPH3600TL BL-UP
SPH4000TL BL-UP
SPH4600TL BL-UP
SPH5000TL BL-UP
SPH6000TLBL-UP
Input data(PV)
Max. recommended PV power(for module STC)
6000W
7200W
8000W
9200W
10500W
11200W
Max. DC voltage
550V
Start voltage
120V
MPP voltage range
120-550V/360V
No. of MPP trackers
2
No. of PV strings per MPP tracker
1
Max. input current per MPP tracker
13.5A
Max. short-circuit current per MPP tracke
16.5A
Output data(AC)
AC nominal power
3000W
3680W
4000W
4600W
5000W
6000W
Max. AC apparent power
3000VA
3680VA
4000VA
4600VA
5000VA
6000VA
Nominal AC voltage (range)
230V/（180Vac-270Vac)
AC grid frequency (range)
50Hz/60Hz (45Hz-55Hz/55Hz-65Hz)
Max. output current
16A
16A
22A
22A
27A
27A
Adjustable power factor
0.8leading…0.8lagging
THDi
<3%
AC grid connection type
Single phase
Battery data (DC)
Battery voltage range
42~59V
Max charging and discharging current
66A
75A
85A
85A
85A
85A
Continuous charging and
discharging power
3000W
3680W
4000W
4000W
4000W
4000W
Type of battery
Lithium /Lead-acid

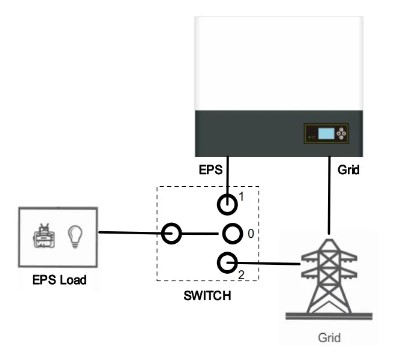

Backup power(AC)
Max. AC output power
3000W
3680W
4000W
4000W
4000W
4000W
Max. output current
17.4A
Nominal AC output voltage
230Vac
Nominal AC output frequency
50/60HZ
THDv
<3%
Switch time
<10ms
Efficiency
MAX. efficiency
97.20%
97.20%
97.30%
97.40%
97.50%
97.60%
European efficiency
97%
97%
97.10%
97.10%
97.20%
97.20%
MPPT efficiency
≥99.5%
Protection devices
DC switch
Yes
DC reverse polarity protection
Yes
AC/DC surge protection
Yes
Battery reverse protection
Yes
AC short-circuit protection
Yes
Ground fault monitoring
Yes
Grid monitoring
Yes
Anti-islanding protection
Yes
Residual-current monitoring unit
Yes
Insulation resistance monitoring
Yes
General data
Dimensions (W / H / D)
458/565/188mm
Weight
31kg
Operating temperature range
–25°C ... +60°C
Nighttime power consumption
< 10 W
Topology
Transformerless
Cooling
Natural
Protection degree
IP65
Relative humidity
0~100%
Altitude
2000m
PV DC Connection
H4/MC4(Optional)
Battery DC Connection
OT Terminal
AC connection
Connector
Display
LCD+LED
Interfaces:RS485/CAN/USB
Yes
Monitor : RF/WIFI/GPRS
Optional
Warranty: 5 years / 10 years
Yes/Optional
CE, IEC62109, G98/G99, VDE0126-1-1, AS4777, CEI 0-21, VDE-AR-N4105, UTE C 15-712，EN50549, IEC 61727, IEC 62116, IEC 62040, C10/11, NRS 097-2-1

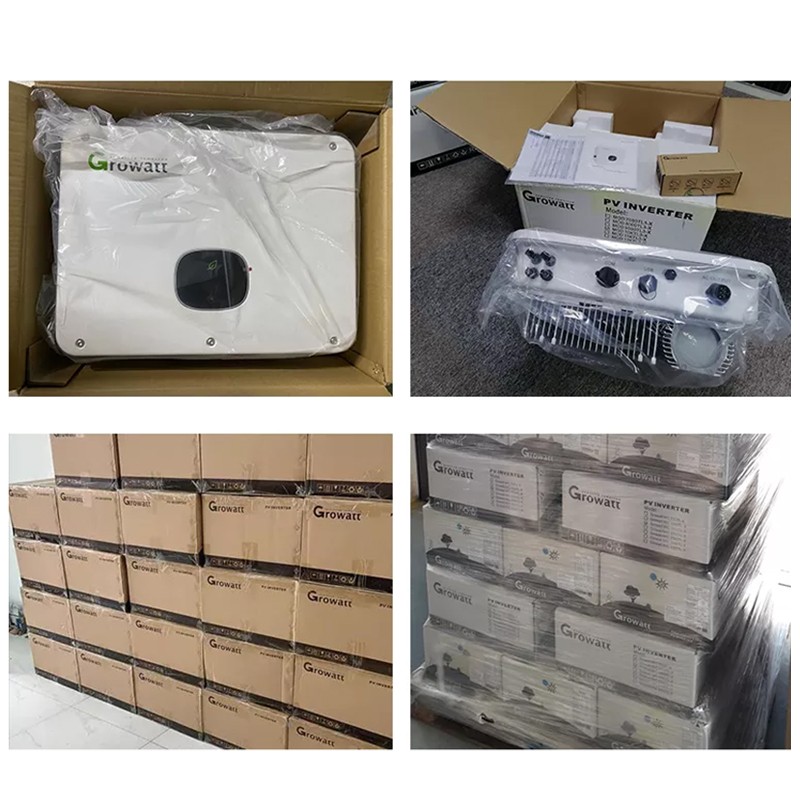

Packing

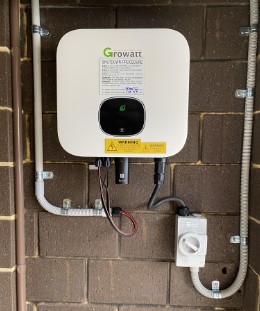

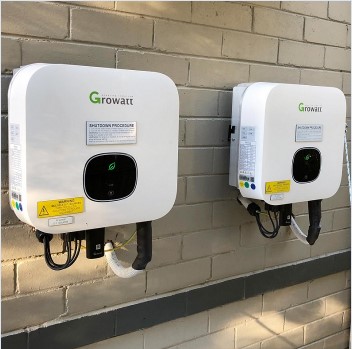

Projects





Hot Tags : hybrid solar inverter Energy storage inverter 3KW 4KW 6KW solar inverter Single Phase solar inverter Solar energy system with battery Koodsun solar inverter
