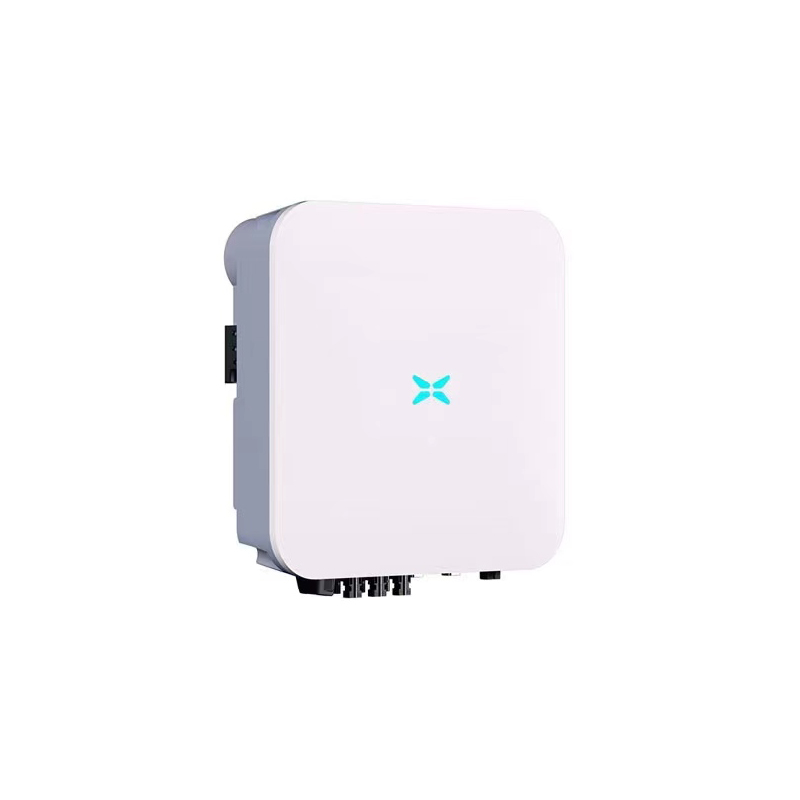

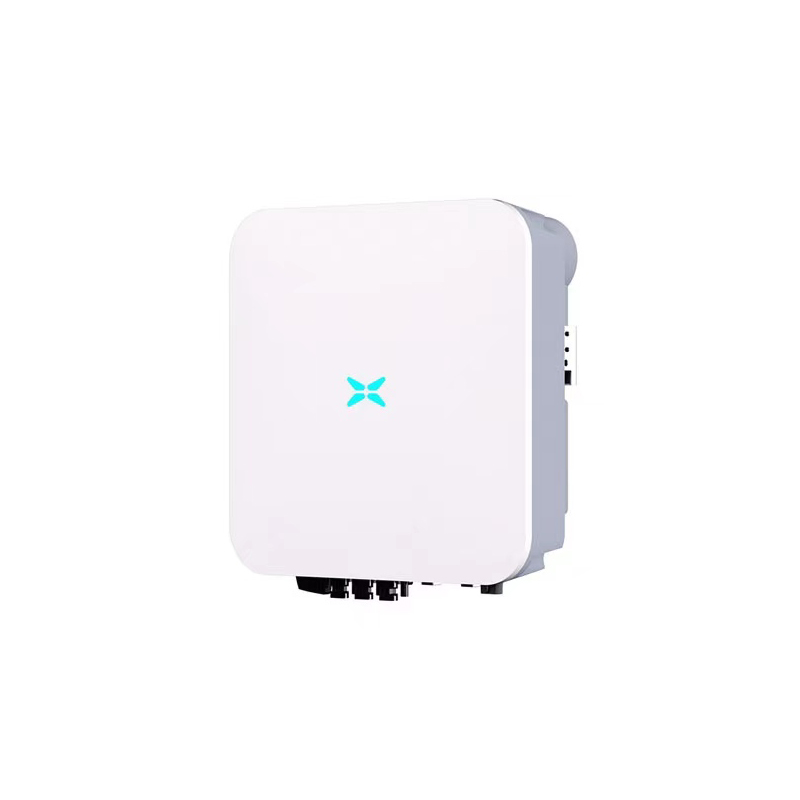

INVT XG3-10kW Single-phase On-grid Solar Inverter with small size, light weight and easy installation

Place of Origin
China
 Model type
On-grid Solar Inverter
Model Number
XG3-10kW
Weight
13kg

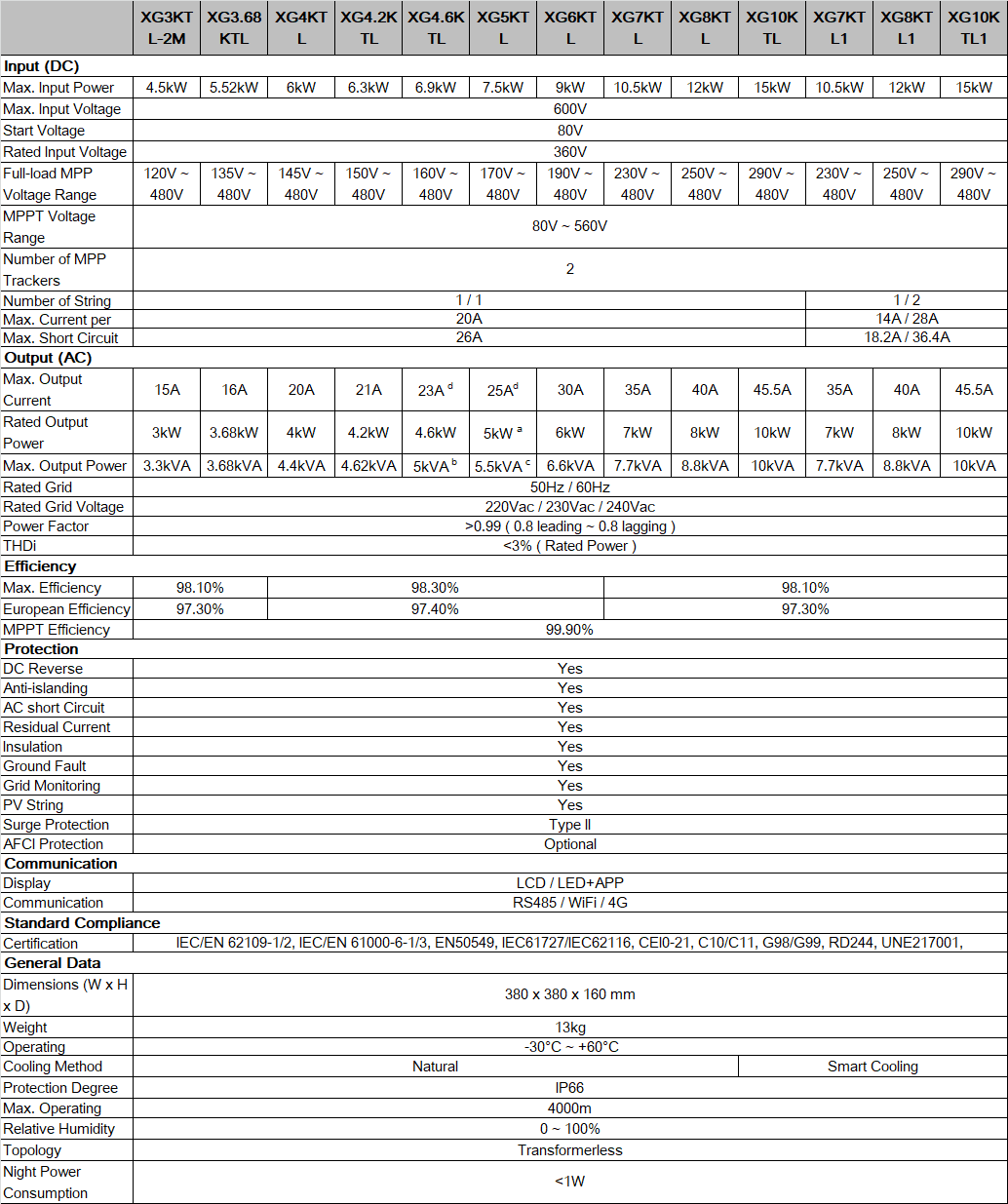

Product Description



Efficient
Higher Revenue

2 MPP Trackers , Max. input current per string: 20A
150% DC Input Oversizing
Compatible with high power modules

Intelligent
Simple O&M

Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
Intelligent Fault Detection: ac-side voltage and current waveforms real-time recorded, fast fault location
Support RS485/WiFi/4G: remote monitoring and operation via PC or mobile phone

Reliable
Worry Free

IP66 Protection degree: support outdoor installation
DC & AC Type II SPD: prevent lightning damage
AFCI Function (Optional): when an arc-fault is detected the inverter immediately stops operation





Packing

1.Standard exporting Wooden and Carton Box

2.The packaging can be customized according to the needs of different customers

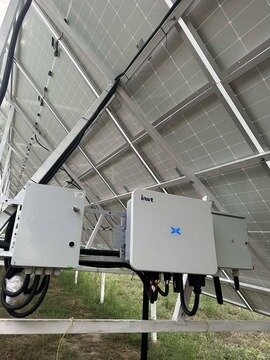

Projects
