Datasheet
|
XD5KTR |
XD6KTR |
XD8KTR |
XD10KTR |
XD12KTR |
|
|
Input (PV) |
|||||
|
Max. PV Input Power |
8kW |
9.6kW |
12.8kW |
16kW |
19.2kW |
|
Max. PV Input Voltage |
1100V |
||||
|
Start-up Voltage |
160V |
||||
|
Rated Voltage |
600V |
||||
|
MPPT Voltage Range |
150V - 1000V |
||||
|
Number of MPP Trackers |
2 |
||||
|
Number of String per MPPT |
1 / 1 |
||||
|
Max. PV Input Current |
20A |
||||
|
Max. Short Circuit Current per MPPT |
40A |
||||
|
Output (AC) |
|||||
|
Rated Output Power |
5kVA |
6kVA |
8kVA |
10kVA |
12kVA |
|
Max. Output Power |
5.5kVA |
6.6kVA |
8.8kVA |
11kVA |
13.2kVA |
|
Max. Output Current |
7.2A |
8.7A |
11.6A |
14.5A |
17.4A |
|
Rated Voltage |
230V / 400V |
||||
|
Rated Frequency |
50Hz / 60Hz |
||||
|
THDi (@Rated Power) |
<2% |
||||
|
Power Factor |
0.8 leading~0.8 lagging |
||||
|
Battery |
|||||
|
Battery Type |
Lithium, Lead-acid |
||||
|
Battery Voltage Range |
160V - 800V |
||||
|
Max. Charge / Discharge Current |
50A |
||||
|
Communication |
CAN / RS485 |
||||
|
Efficiency |
|||||
|
Max. Efficiency |
>98.2% |
>98.4% |
|||
|
EU Efficiency |
>97.6% |
>97.8% |
|||
|
Battery Charge / Discharge Efficiency |
>97.6% |
>97.8% |
|||
|
Communication |
|||||
|
Display |
LCD |
||||
|
Communication |
RS485 / CAN / WIFI / 4G / LAN / Bluetooth |
||||
|
General Data |
|||||
|
Dimension (W x H x D) |
534 x 440 x 220 mm |
||||
|
Weight |
<30Kg |
||||
|
Operating Temperature Range |
-30℃~+60℃ |
||||
|
Cooling Method |
Natural |
||||
|
Protection Degree |
IP66 |
||||
|
Max. Operating Altitude |
4000m |
||||
|
Noise |
≤35dB |
||||
|
Relative Humidity |
0~100% |
||||
|
Self-consumption |
<10W |
||||
|
Topology |
Transformerless |
||||

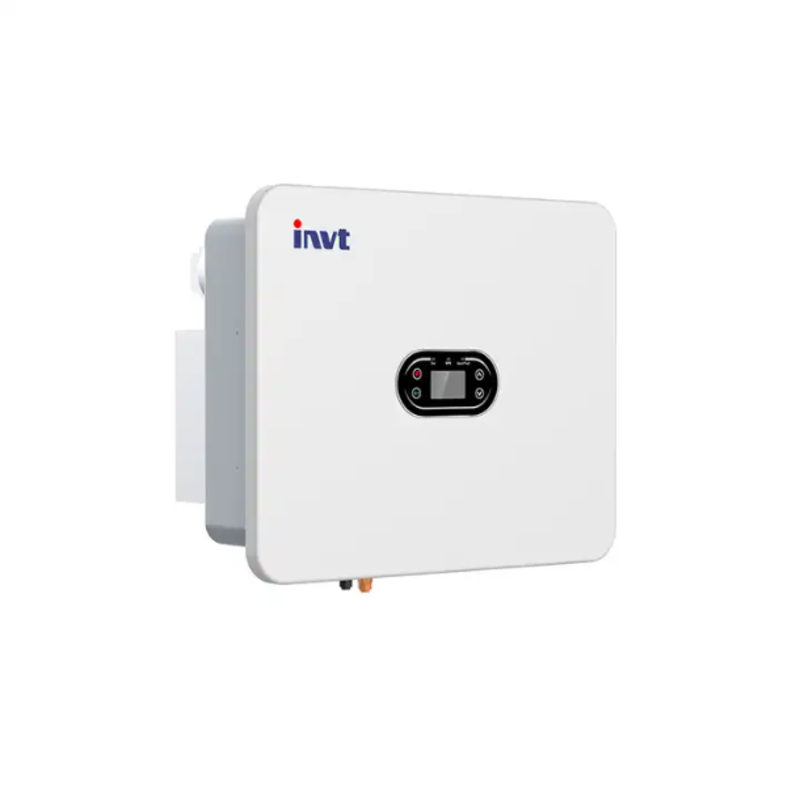

XD5-12kW is the latest three-phase energy storage inverter designed for households and small commercial solar power plants. It has built-in self-generation and self-consumption, peak shaving and valley filling, battery priority, backup power, and other operating modes. Additionally, it also boasts a range of energy storage solutions, including multiple units in parallel, three-phase unbalanced output, Anti-reflux, etc. With its comprehensive feature set, the XD5-12kW is an ideal choice for those seeking a reliable and efficient hybrid inverter for their solar power plant.

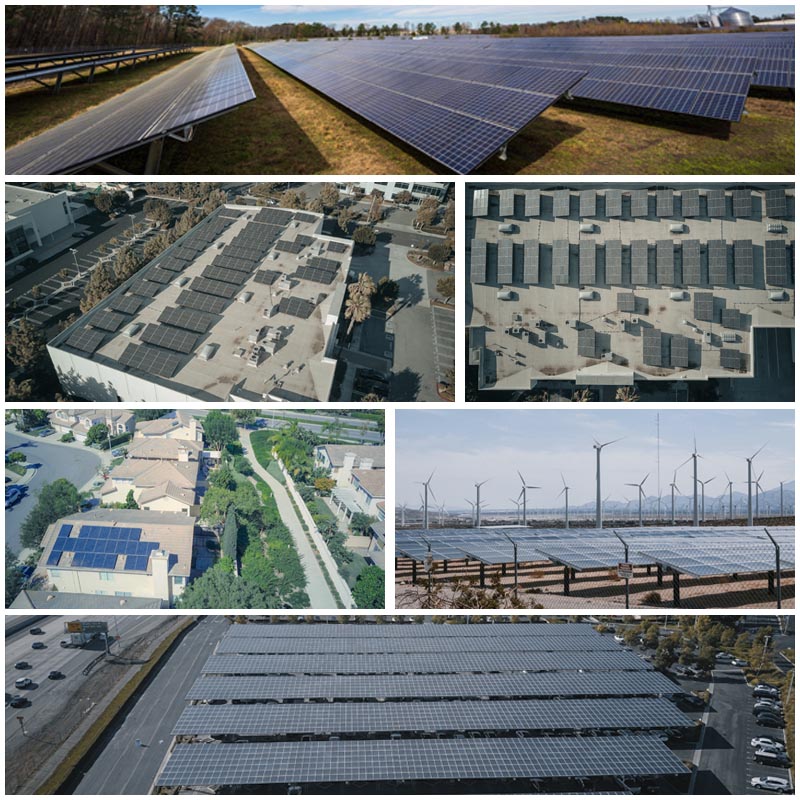

Project
