Brand |
Koodsun |
| Product Origin | China |
| Shipping Port | Ningbo, Shanghai, Shenzhen |
| Lead time | 7-15days |
| Time | On Grid |
| Output voltage | 110V-240V |
| Item No | 1 Phase |
| Warranty | 5-10Years |
Product Description

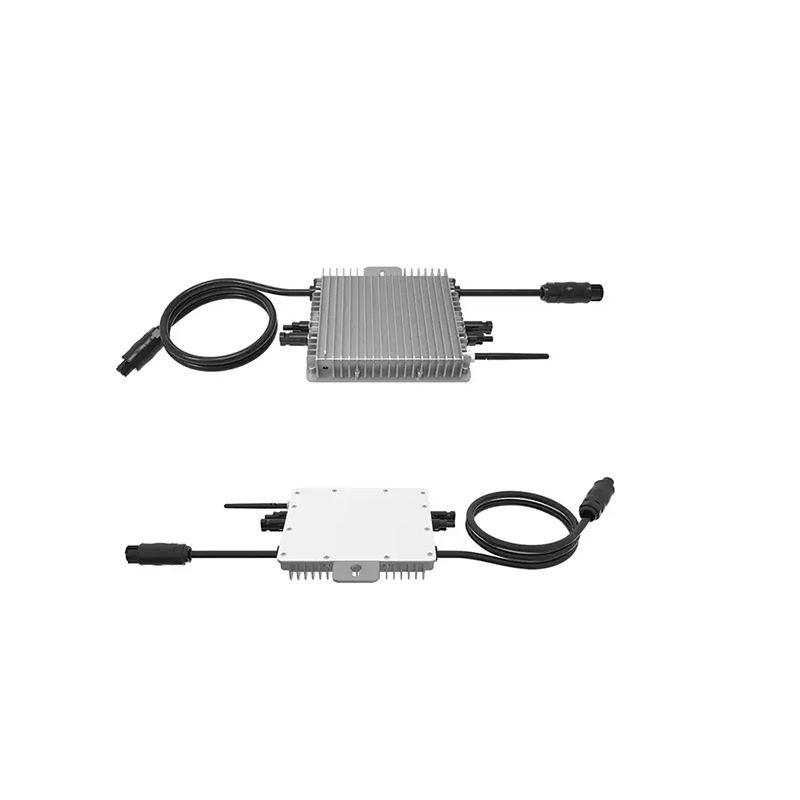

DEYE Micro Inverter SUN-M130/160/200 G3-EU single Phase 2 MPPT
Working Diagrams

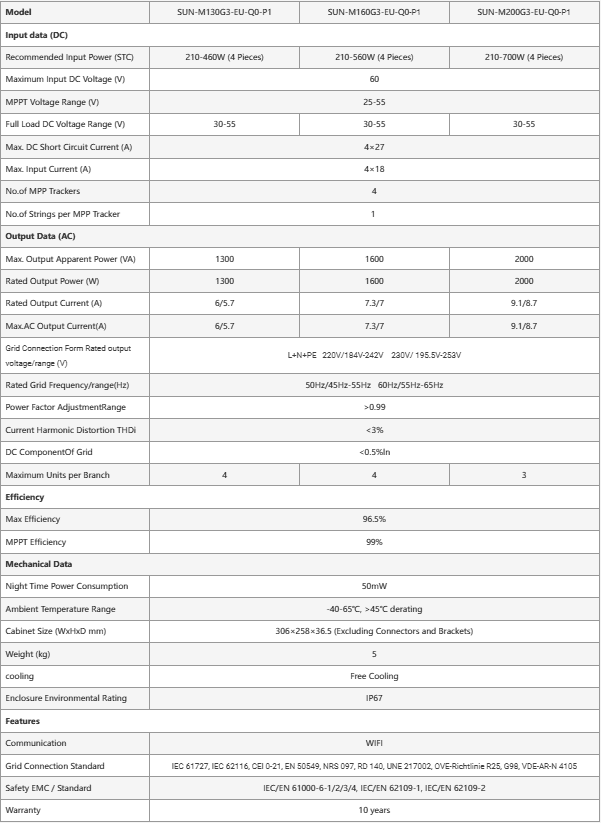

Datasheets
Packing
Max. usable PV input power: 240 kW Battery voltage range: 300 - 950 V Battery connection: Terminal connector Topology: Transformerless Operating ambient temperature range: -25 ~ +60°C Ingress protection: IP66 Communication: CAN / RS485 THDi: < 3% Max. input current: 250A Rated output power: 125KW
Learn More
Max. usable PV input power: 240 kW Battery voltage range: 300 - 950 V Battery connection: Terminal connector Topology: Transformerless Operating ambient temperature range: -25 ~ +60°C Ingress protection: IP66 Communication: CAN / RS485 THDi: < 3% Max. input current: 250A Rated output power: 125KW
Learn More
Battery Type: Lithium-ion Max. Charging Current (A): 50 Number of Battery Input: 2 MPPT Voltage Range (V): 150-850 No. of MPP Trackers: 2/2+1 2/2+2 Max. AC Input/Output Current (A): 41.7/39.9 Max. Efficiency: 97.60% MPPT Efficiency: >99% Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 Warranty: 5 Years/10 Years
Learn More
Max. AC apparent power: 110kVA AC grid connection type: 3P3W+PE/3P4W+PE Battery voltage range: 380V-650V Recommended battery voltage: 750-1000V for 3P3W / 820-1000V for 3P4W BMS communication: RS485/CAN Types of battery: Lithium Max. charging / discharging current: 156A Continuous charging / discharging power: 62.3kW Operating temperature range: -22°F~+140°F, >122°F derating Display: OLED+LED/WIFI+APP
Learn More
Product Name：Solar Inverter Application：Solar Energy System Max. input voltage：1000V Rated voltage：600V Rated output power：125KW Dimensions：1174*814*400mm Weight：235KG
Learn More
Product Name：Solar Inverter Max. input voltage：1100V Max. efficiency：98.2% Weight：153kKG Dimensions (W/H/D)：820/1350/510mm Nominal AC grid frequency/range：50/60Hz,45-55Hz/55-65Hz MPPT nominal voltage/range：550V,180V~800V Warranty (5/10 years)：Yes/Opt
Learn More
R3KL1 R3K6L1 R4KL1 R4K6L1 R5KL1 R6KL1 Place of Origin Jiangsu, China Brand Name MEGAREVO Model Number R3KL1 Input Voltage 550V Output Voltage 230/176~270V Output Current 13~26A Output Frequency 50/60(HZ) Size 550*200*515mm Certificate IEC/EN 61000-6-1 Warranty 5 Years Weight 25KG MPPT Voltage Range 125~500V MPP Tracker/Strings 2/1 Battery Voltage Range 40~58V Battery Type Lithium /Lead-acid Communication Interface CAN/RS485
Learn More
R6KH3 R8KH3 R10KH3 R12KH3 R15KH3 Place of Origin Anhui, China Brand Name MEGAREVO Model Number R6KH3/R8KH3/R10KH3/R12KH3/R15KH3 Input Voltage 1000V Output Voltage 6000V/8000V/10000V/12000V/15000V Output Current 11.5A/14.4A/17.3A/21.7A Size 530*560*220mm Weight 31kg/32kg/34kg, 30kg/31kg/32kg/34kg Product name R8KH3/R10KH3/R12KH3/R15KH3 Application Solar Power System Home Inverter type On-grid Inverter Display LCD Display Color White Protection IP65 Battery type Lithium and Lead Acid Battery Communication RS485,CAN
Learn More
