Megarevo Three Phase  Hybrid Solar Inverter For solar energy system -Koodsun
Megarevo Three Phase  Hybrid Solar Inverter For solar energy system -Koodsun

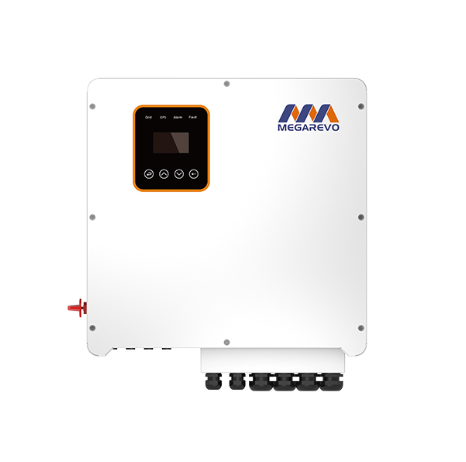

Megarevo Three Phase Hybrid Solar Inverter For solar energy system

R6KH3 R8KH3 R10KH3 R12KH3 R15KH3

Place of Origin
Anhui, China



Brand Name
MEGAREVO



Model Number
R6KH3/R8KH3/R10KH3/R12KH3/R15KH3



Input Voltage
1000V



Output Voltage
6000V/8000V/10000V/12000V/15000V



Output Current
11.5A/14.4A/17.3A/21.7A



Size
530*560*220mm



Weight
31kg/32kg/34kg, 30kg/31kg/32kg/34kg



Product name
R8KH3/R10KH3/R12KH3/R15KH3



Application
Solar Power System Home



Inverter type
On-grid Inverter



Display
LCD Display



Color
White



Protection
IP65



Battery type
Lithium and Lead Acid Battery



Communication
RS485,CAN



Datasheets

Model
R6KH3
R8KH3
R10KH3
R12KH3
R15KH3
PV string input

Max. PV voltage (V)
1,000
MPPT voltage range (V)
180~850
Max. short-circuit current (A)
16/16
16/16
16/16
16/16
25/25
No. of strings per MPPT trackers
1/1
Rated PV input voltage (V)
700
AC Output

Max.output current to grid (A)
9.5
12.7
15.9
19.1
23.8
Nominal grid voltage (V)
380/400,3W+N+PE
Battery

Battery voltage range (V)
125~600
Battery optimal operating voltage
range (V)
150~550
Max.charging /discharging current
(A)
50
Battery type
Lithium /Lead acid
Communication interface
CAN
EPS output

Max.output current (A)
9.5
12.7
15.9
19.1
23.8
Nominal output voltage (V)
400 ,3W+N+PE,50/60
Max.effiffifficiency
97.9%
97.9%
98.2%
98.2%
97.6%
General Data

Ingress protection
IP65
Operating altitude (m)
4,000 (>2,000 Derating)
Dimensions W*H*D (mm)
530*560*220
Net weight (kg)
30
31
32
33
34
Safety standard
IEC/EN62109-1:2010, IEC/EN62109-2:2011
Display and communication

HMI
LCD; APP
BMS
CAN
EMS/Meter
RS485/RS485

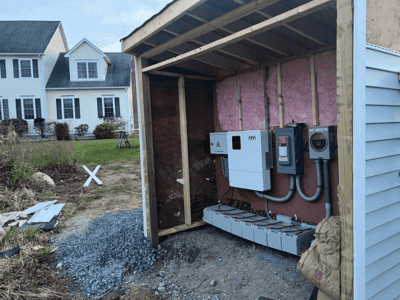

Project
