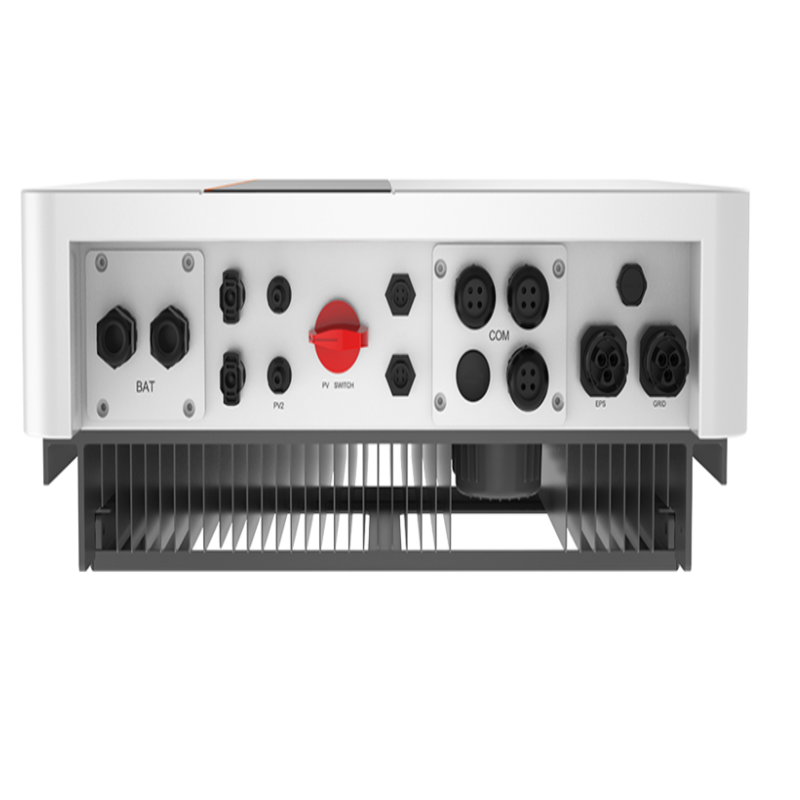

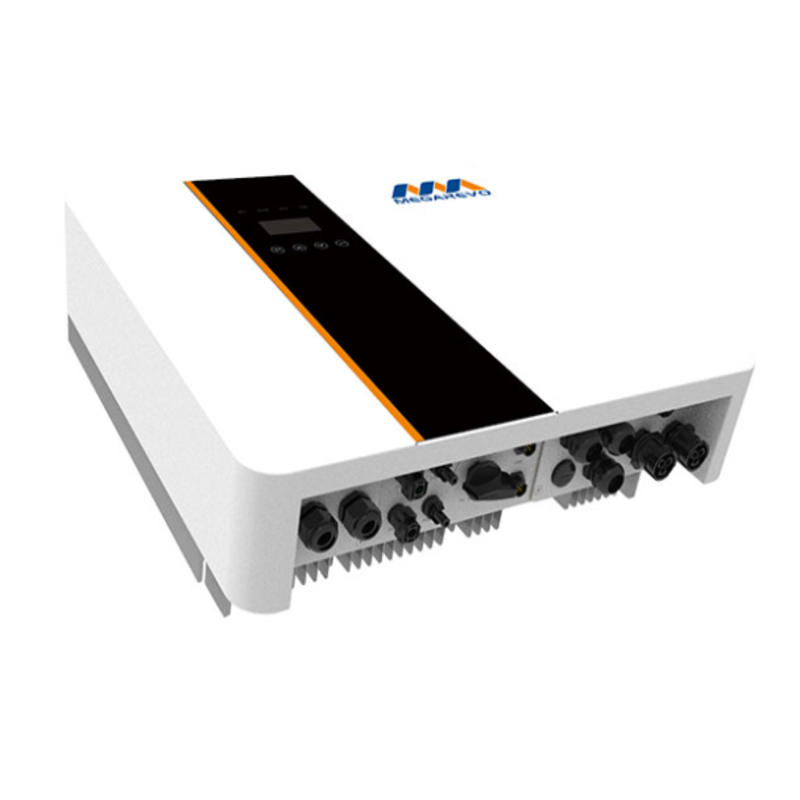

Megarevo Hybrid Solar Power Inverter 3KW 4KW 5KW 6KW with Low Voltage Battery

R3KL1 R3K6L1  R4KL1  R4K6L1  R5KL1  R6KL1



Place of Origin
Jiangsu, China



Brand Name
MEGAREVO



Model Number
R3KL1



Input Voltage
550V



Output Voltage
230/176~270V



Output Current
13~26A



Output Frequency
50/60(HZ)



Size
550*200*515mm



Certificate
IEC/EN 61000-6-1



Warranty
5 Years



Weight
25KG



MPPT Voltage Range
125~500V



MPP Tracker/Strings
2/1



Battery Voltage Range
40~58V



Battery Type
Lithium /Lead-acid



Communication Interface
CAN/RS485
Inquiry now

  • Datasheets



    Technical specification
    R3KL1
    R3K6L1
    R4KL1
    R4K6L1
    R5KL1
    R6KL1
    Input (PV)
    Max. power(kW)
    4.6
    4.6
    6
    6
    7
    7
    Max. DC voltage(V)
    550
    MPPT voltage range(V)
    125~500
    Max.input current of single MPPT(A)
    14
    MPPT tracker/strings
    2/1
    AC output
    Rated output power(kVA)
    3
    3.68
    4
    4.6
    5
    6
    Max. output current(A)
    13
    16
    17.4
    20
    21.7
    26
    Grid voltage/range(V)
    230/176~270
    Frequency (Hz)
    50 / 60
    PF
    0.99lagging-0.99leading
    THDi
    <3%
    AC output topology
    L+N+PE
    Battery
    Battery voltage range(V)
    40~58
    Max. charging voltage(V)
    58
    Max. charge/discharge current(A)
    95/62.2
    95/75
    95/83.3
    95/95.8
    95/104.2
    95/110
    Battery type
    Lithium /Lead-acid
    Communication interface
    CAN/RS485
    EPS output
    Rated power (kVA)
    3
    3. 68
    4
    4.6
    5
    6
    Rated output voltage(V)
    230
    Rated output current(A)
    13
    16
    17.4
    20
    21.7
    26
    Rated frequency (Hz）
    50 / 60
    Automatic switching time (ms)
    <20
    THDu
    ＜2%
    Overload capacity
    110%, 30S/120%, 10S/150%, 0.02S
    General data
    Battery chage/dischage efficiency
    95.0%
    DC Max. efficiency
    97.6%
    Europe efficiency
    97.0%
    MPPT efficiency
    99.9%
    Ingress protection
    IP65
    Noise emission (dB)
    <35
    Operation temperature
    - 25℃～ 60℃
    Cooling
    Natural
    Relative humidity
    0 ~95%（non-condensing）
    Operation altitude (m)
    2,000 (>2,000 Derating)
    Dimensions W * D * H (mm)
    550*200*515
    Weight (kg)
    25
    Isolation transformer
    No
    Self-consumption(W)
    15~25
    Display and communication
    Display
    LCD
    Interface:RS485/Wifi/4G/ CAN/DRM
    Yes/ Opt/ Opt/ Yes/ Yes
    Safety standard
    IEC/EN62109-1/-2, IEC/EN62477-1
    EMC
    IEC/EN 61000-6-1, IEC/EN 61000-6-3
    On-grid
    South Africa NRS097-2-1:2017, UK G98,G99 ,EN 50549-1

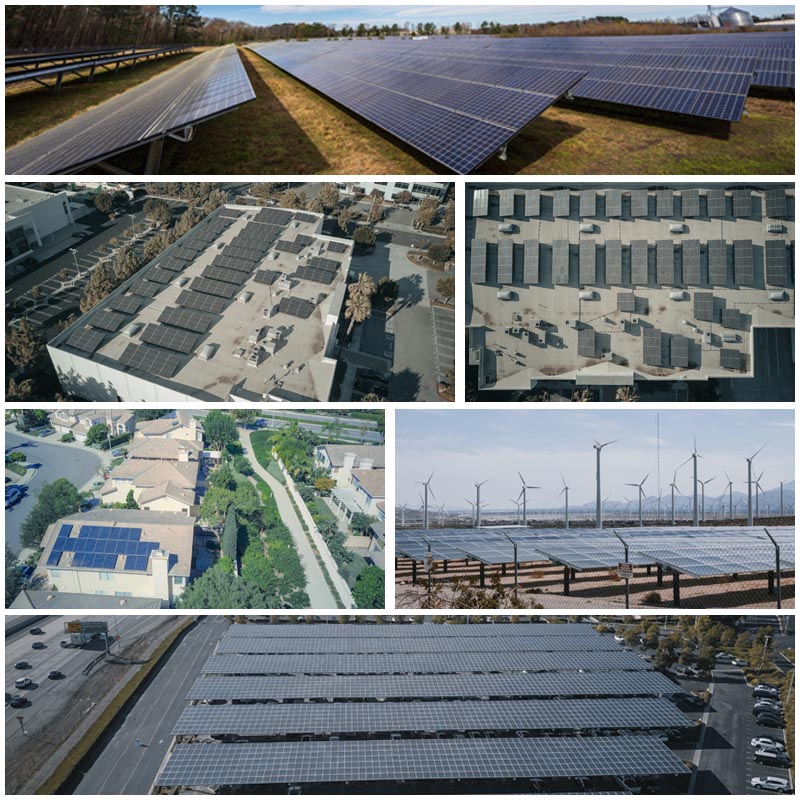

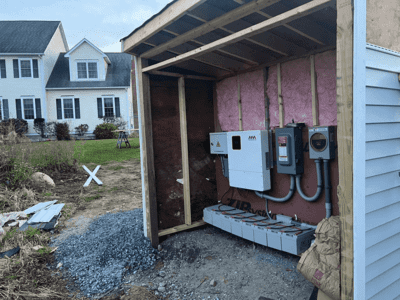

    Projects
