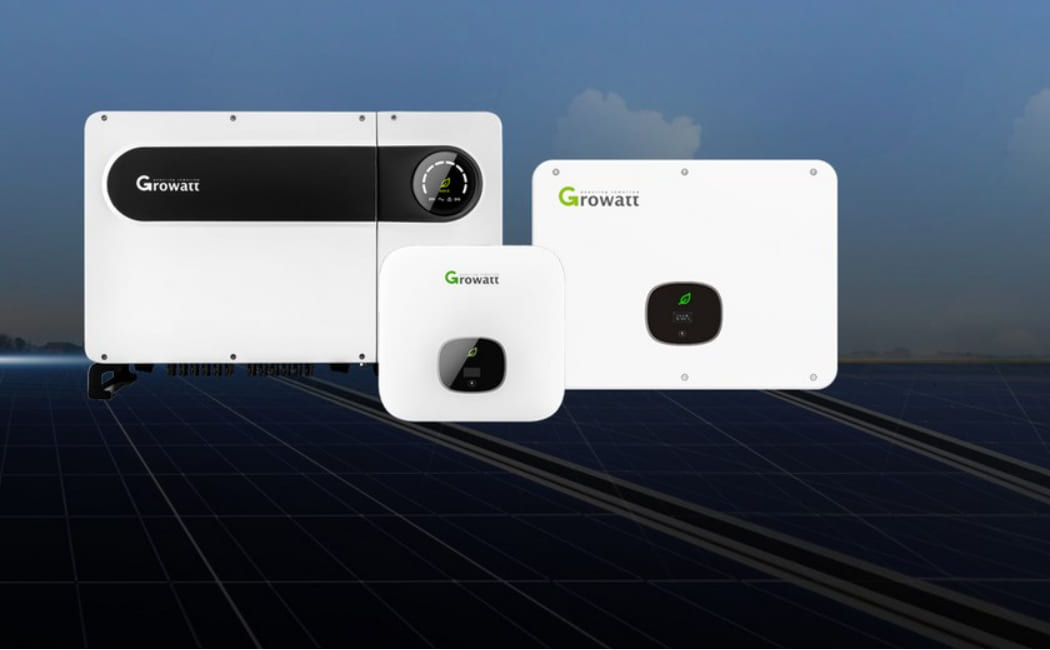

Growatt 10KW 15KW 20KW 25KW 30KW 50KW 60KW On Grid Home Solar Inverters 3 Phase 400V For Sale -Koodsun

Growatt 10KW 15KW 20KW 25KW 30KW 50KW 60KW On Grid Home Solar Inverters 3 Phase 400V For Sale

  • Brand:

    KOODSUN OR OEM SERVICE
  • Product Origin:

    China
  • Shipping Port:

    Ningbo, Shanghai, Shenzhen
  • Lead Time:

    7-15days
  • Power Ranger:

    10KW - 60KW
  • Type:

    On Grid
  • Output Voltage :

    380-415V
  • Item No:

    Three Phase
  • Certification:

    CE, TUV, IEC, UL, VDE,,,,Etc
  • Lead Time:

    15days
  • Warranty:

    5-10 Years

Growatt 10KW 15KW 20KW 25KW 30KW 50KW 60KW On Grid Home Solar Inverters 3 Phase 400V For Sale



Model MOD 10KW MOD 15KW MID 20KW MID 25KW MAC 30KW MAC 50KW MAC 60KW
Max Input Power 15000W 22500W 30000W 37500W 45000W 75000W 90000W
Max DC Input Voltage 1100V
Start-up Input Voltage 200V 200V 250V 250V 250V 250V 250V
Nominal Grid Voltage                                                                    230/400V
Nominal Frequency 50/60Hz
Grid Connection                                                                       Three Phase
No. of MPP Trackers 2 2 2 2 3 3 3
Max. input current per MPP tracker 13A 26/13 25A 25A/37.5A 37.5A/37.5A/25A 50A/37.5A/37.5A 50A/50A/50A
Max. short-circuit current
per MPP tracker
16A 32/16A 32A 32A/48A 45A 55A 55A
Max output current 16.7A 25A 31.9A 40.2A 48.3A 80.5A 96.6A
Max Efficiency 98.6% 98.6% 98.75% 98.75% 98.7% 98.7% 98.8%
MPPT Efficiency                                                99.9%
Protection PV array insulation protection, PV array leakage current protection, Ground fault monitoring, Grid Monitoring, Island protection, DC monitoring, Short current protection etc.
Communication Interface                                                           RS485(standard); WIFI
Certification IEC 62116, IEC61727, IEC61683, IEC60068, CE, CGC, AS4777, VDE4105, C10-C11, G83/G59
Warranty    5years, 10years
Temperature Range -25℃ to +60℃
DC Terminal Waterproof Terminals
Demension(H*W*D mm) 425/387/178 425/387/178 525/395/222 525/395/222 680/508/281 680/508/281 680/508/281
Approx Weight 14kg 16kg 23kg 23kg 52kg 52kg 52kg



Grid tie (utility tie) PV systems consist of solar panels and an on grid inverter, without batteries.



The solar panel provides a special inverter that directly converts the DC voltage of the solar panel into an AC power source matching the power grid.

Extra power can sale to local city grid to reduce your home electricity fee.

On-grid inverter specifications include single-phase 220-240v, 50hz; three-phase 380-415V 50hz; single-phase 120v / 240v ,240v 60hz and three-phase 480v.



High-yield

Max.efficiency 98.8%

40% compact and lighter

Wide input voltage operation range from 200V to 1100V

All in one. Flexible and economical system solution

Dual MPP trackers

OLED and Touch button

DC Switch

Low maintenance cost

High powered density

Rust-free aluminum covers

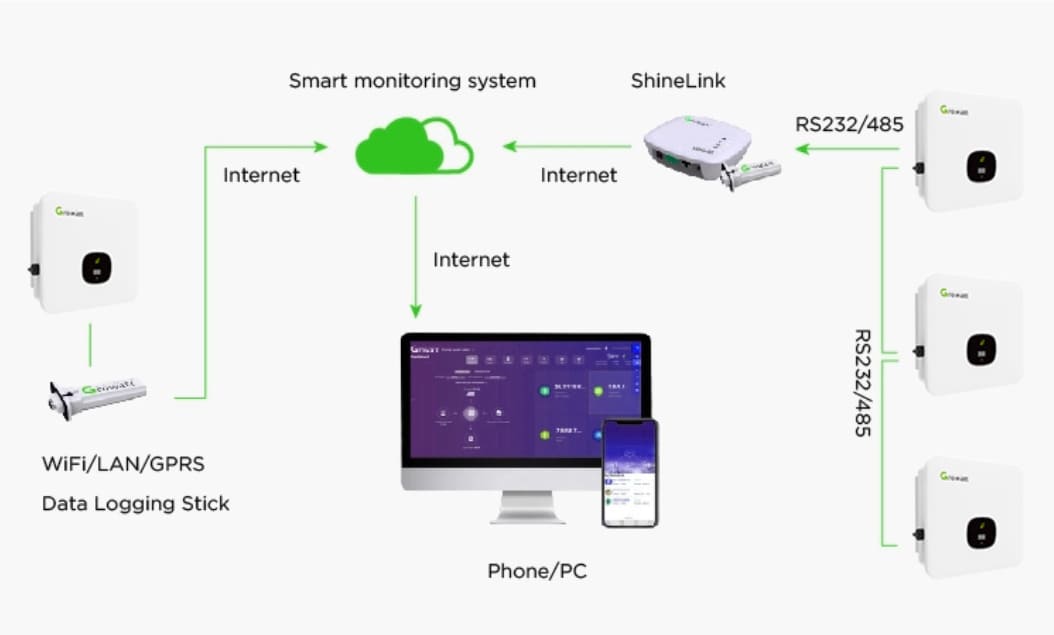

Flexible monitorings solution

Small size,Light weight

Intelligent grid management

Reactive power adjustable

Self power reducer when over frequency



Remote active/reactive power limit control

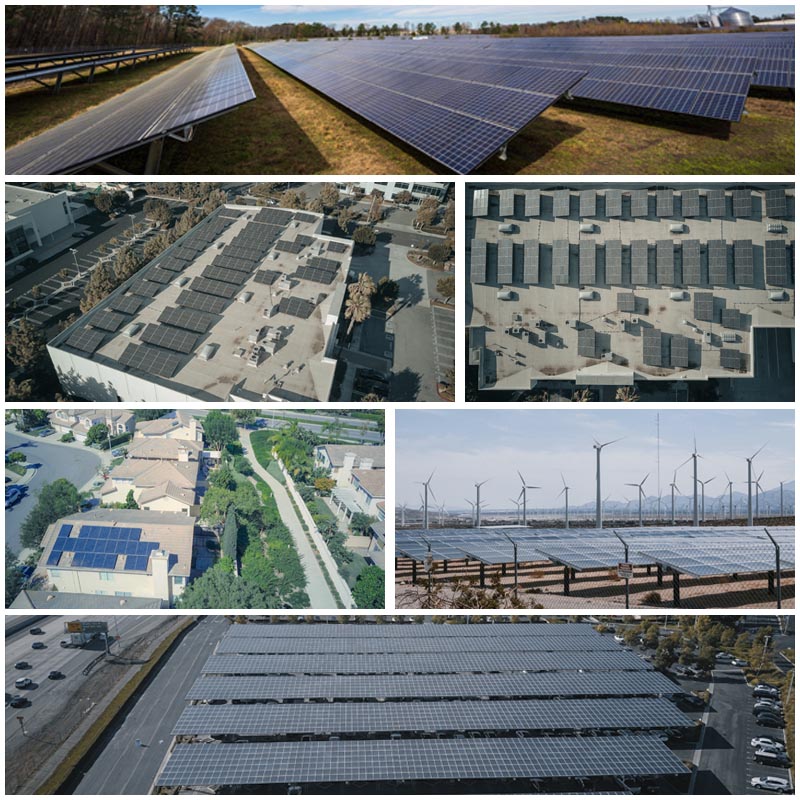

Project

One stop solution for solar power system.

For more information, please feel free to contact our team

Email: steve@koodsun.vom

Whatsapp&Wechat: +86 13966581702

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
