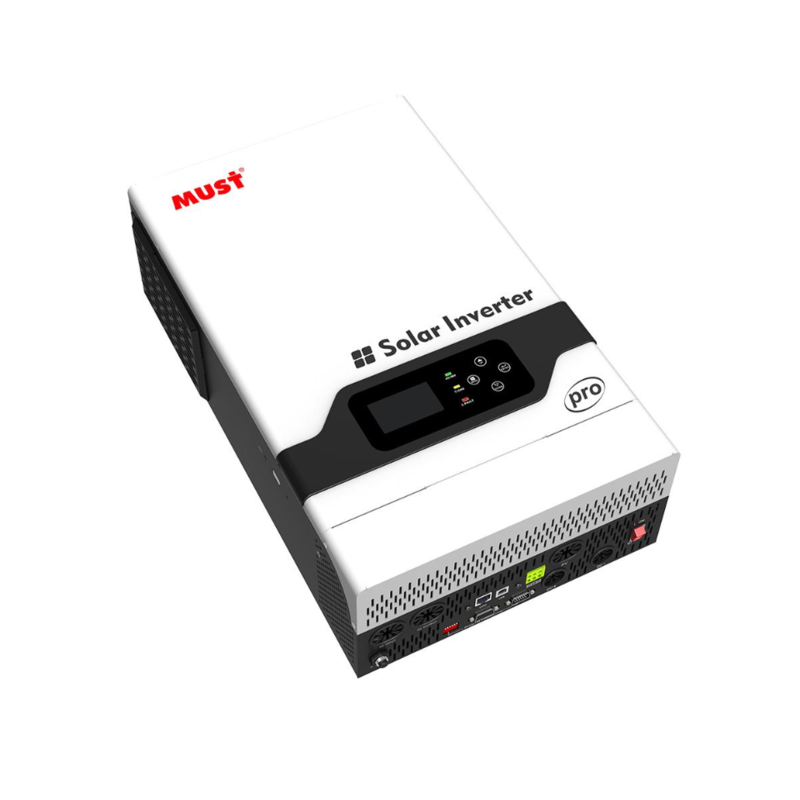

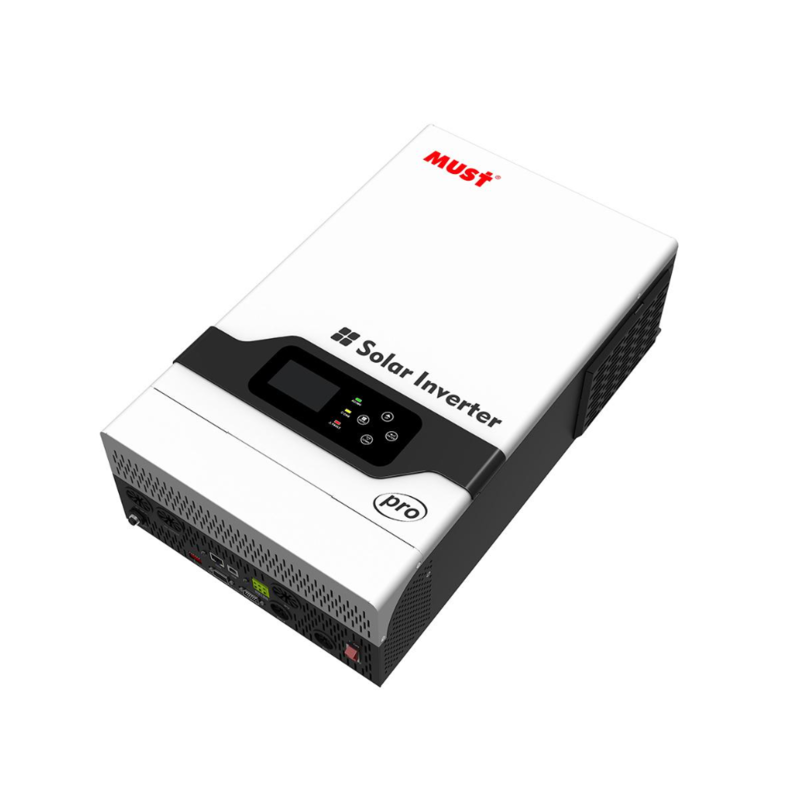

Koodsun MUST PV1800 Pro Series 3000W 24V Power Solar Inverter 5.2KW MPPT Pure Sine Wave Solar Inverter

 PV18-5248 PRO

 PV18-5248 PRO

Place of Origin
Guangdong, China



Brand Name
MUST



Model Number
PH1800 Pro



Input Voltage
24V/48V



Output Voltage
220V/230V/240V



Output Current
13.6A-23.63A



Output Frequency
50/60Hz



Size
272*355*100mm



Certificate
CE TUV FCC



Warranty
1 Years



Weight
13kg
Inquiry now

  • Datasheet

    MODEL
    PV18-3024 PRO
    PV18-5248 PRO
    Nominal Battery System Voltage
    24VDC
    48VDC
    INVERTER OUTPUT
    Rated Power
    3000VA / 3000W
    5200VA / 5200W
    Surge Power
    6000W
    10400W
    Waveform
    Pure sine wave
    AC Voltage Regulation (Batt.Mode)
    230VAC±5%(Setting)
    Inverter Efficiency(Peak)
    93%
    Transfer Time
    10ms (UPS / VDE4105) / 20ms (APL)
    AC INPUT
    Voltage
    230VAC±5%
    Selectable Voltage Range
    170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105)
    Frequency Range
    50Hz / 60Hz(Auto sensing)
    BATTERY

    Normal voltage
    24VDC
    48VDC
    Floating Charge Voltage
    27.4VDC
    54.8VDC
    Overcharge Protection
    30VDC
    60VDC
    SOLAR CHARGER & AC CHARGER
    Maximum PV Array Open Circuit Voltage
    450VDC
    Maximum PV current
    18A
    PV Array MPPT Voltage Range
    150~430 VDC
    Maximum Solar Charge Current
    80Amp
    Maximum AC Charge Current
    60Amp
    Maximum Charge Current
    80Amp
    MECHANICAL SPECIFICATIONS
    Machine Dimensions (W*H*D)(mm)
    272*355*100
    295*528*121
    Package Dimensions (W*H*D)(mm)
    540*395*241
    628*425*251
    Net Weight(kg)
    11
    14
    Gross Weight(kg)
    12
    15
    OTHER
    Humidity
    5% to 95% Relative humidity (Non-condensing)
    Operating Temperature
    0°C~50°C
    Storage Temperature
    -15℃~60℃



    Features

    • Pure sine wave output

    • Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).

    • Built-in MPPT solar charge controller

    • MAX PV Array Open Circuit Voltage: 450V

    • Can provide the power to the load without battery

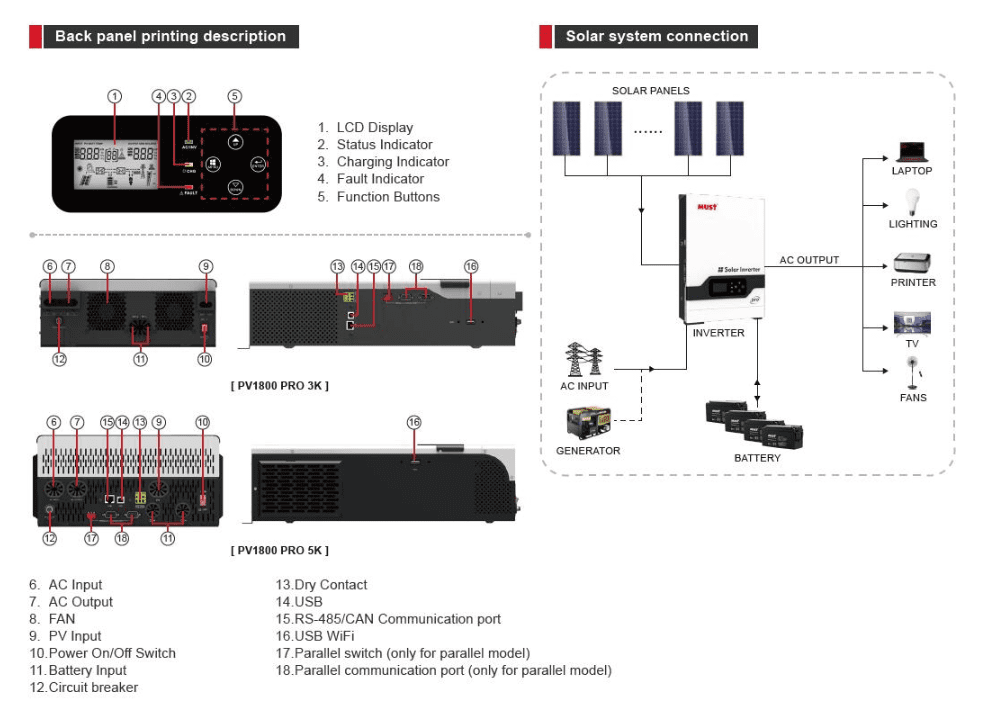

    • Combining solar system, AC utility, and battery power source to supply continuous power

    • Overload, short circuit and Deep discharge protection

    • Cold start function

    • Support USB, RS485 monitoring function

    • Parallel operation with up to 3 units

    • WIFI remote monitoring (optional)

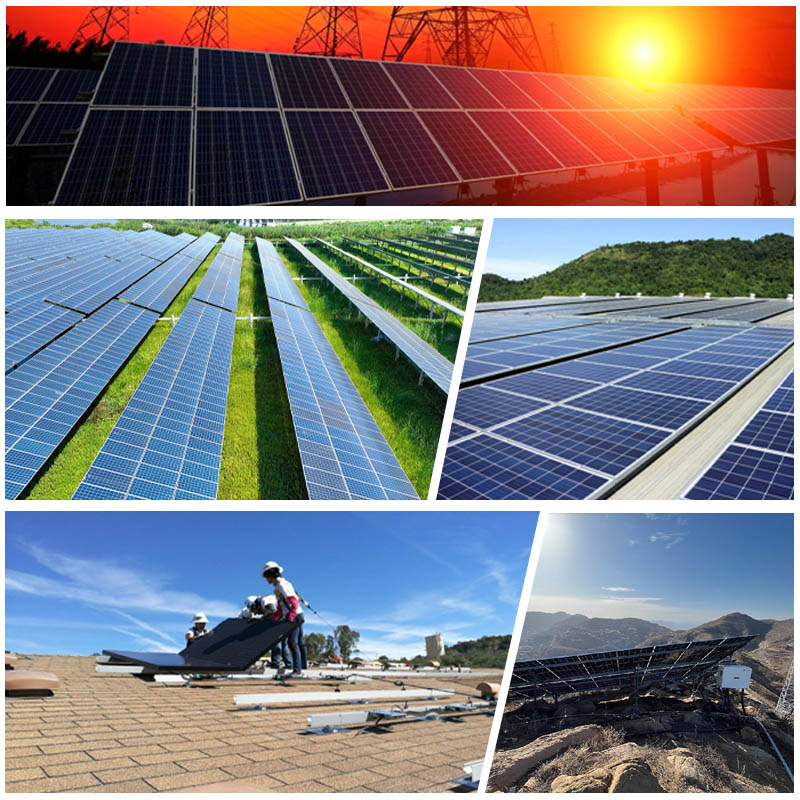

    Project
