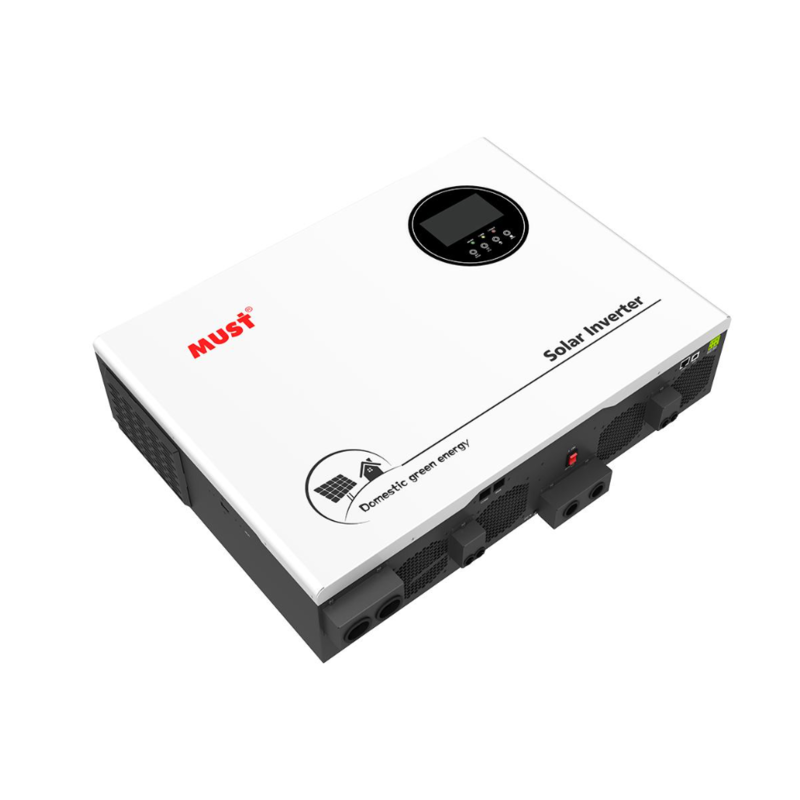

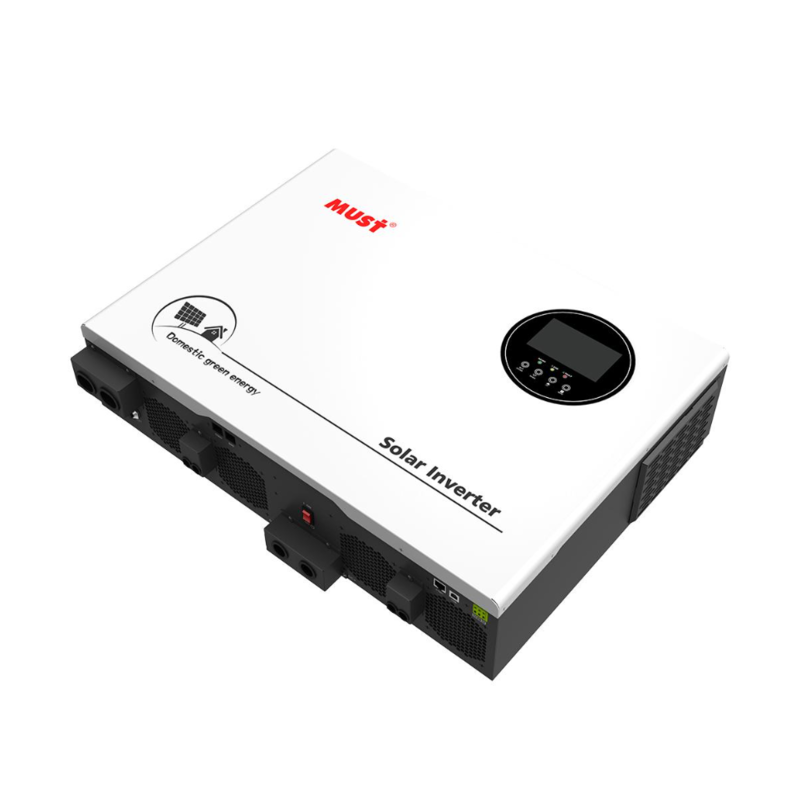

Datasheet
item
|
value
|
Place of Origin
|
China
|
|
Guangdong
|
Brand Name
|
MUST
|
Model Number
|
PV1800 PRO-PV18-3524 PRO
|
Input Voltage
|
24VDC
|
Output Voltage
|
230VAC±5%(Setting)
|
Output Current
|
100A
|
Output Frequency
|
50/60Hz
|
Output Type
|
Single
|
Size
|
322*486*134
|
Type
|
DC/AC Inverters
|
Inverter Efficiency
|
90%
|
Certificate
|
CE,IEC
|
Warranty
|
1 Years
|
Weight
|
10kg
|
communication port
|
USB
|
VOC
|
145VDC
|
controller type
|
MPPT
|
Rated power
|
1000W-5000W
|
DC voltage
|
12V 24V 48V
|
Maximum PV Array Open Circuit Voltage
|
450VDC
|
PV Array MPPT Voltage Range
|
150~430 VDC
|
Operating Temperature
|
0°C~50°C
|
Storage Temperature
|
-15℃ ~60℃
|
Transfer Time
|
10ms (UPS / VDE4105) / 20ms (APL)
|
