Datasheet
Datasheet
|
SOFAR 5KTLM-G3-A
|
SOFAR 6KTLM-G3
|
Input (DC)
|
||
Max. input voltage
|
600V
|
|
Rated input voltage
|
380V
|
|
Start-up voltage
|
90V
|
|
MPPT operating voltage range
|
80V-550V
|
|
Number of MPPTs
|
2
|
|
Number of DC inputs
|
1 for each MPPT
|
|
Max. input MPPT current
|
15A/15A
|
|
Max. input short circuit current
|
22.5A/22.5A
|
|
Output (AC)
|
||
Rated output power
|
5000W
|
6000W
|
Max. apparent power
|
5000VA
|
6000VA
|
Max. output current
|
21.7A
|
29A
|
Rated output voltage
|
L/N/PE 230Vac
|
|
Output voltage range
|
180Vac-276Vac
|
|
Rated output frequency
|
50/60Hz
|
|
Output frequency range
|
45Hz-55Hz/55Hz-65Hz
|
|
Active power adjustable range
|
0~100%
|
|
THDi
|
<3%
|
|
Power factor
|
1 (adjustable +/-0.8)
|
|
Efficiency
|
||
Max. efficiency
|
98.4%
|
98.4%
|
European efficiency
|
97.5%
|
97.5%
|
Protection
|
||
DC reverse polarity protection
|
Yes
|
|
Anti-islanding protection
|
Yes
|
|
Leakage current protection
|
Yes
|
|
Ground fault monitoring
|
Yes
|
|
PV-array string fault monitoring
|
Yes
|
|
DC switch
|
Yes
|
|
SPD
|
PV: type III, AC: type III
|
|
General Data
|
||
Ambient temperature range
|
-30℃~+60℃
|
|
Self-consumption at night
|
<1W
|
|
Topology
|
Transformerless
|
|
Degree of protection
|
IP65
|
|
Allowable relative humidity range
|
0~100%
|
|
Max. operating altitude
|
4000m
|
|
Cooling
|
Natural
|
|
Dimension (W×H×D)
|
349×344×164mm
|
|
Weight
|
10kg
|
|
Display
|
LCD & Bluetooth +APP
|
|
Communication
|
RS485/WiFi
|
|
Standard
|
IEC/EN 61000-6-2/3, IEC/EN 61000-3-2/3, IEC/EN 61000-3-11/12,
IEC 62116, IEC 61727, IEC 61683, IEC 60068-1/2/14/30, IEC/EN 62109-1/2
VDE-AR-N 4105, VDE V 0126-1-1, CEI0-21, C10/11, UNE 217002: 2020, G98/G99, EN 50549-1, ANRE 208
|

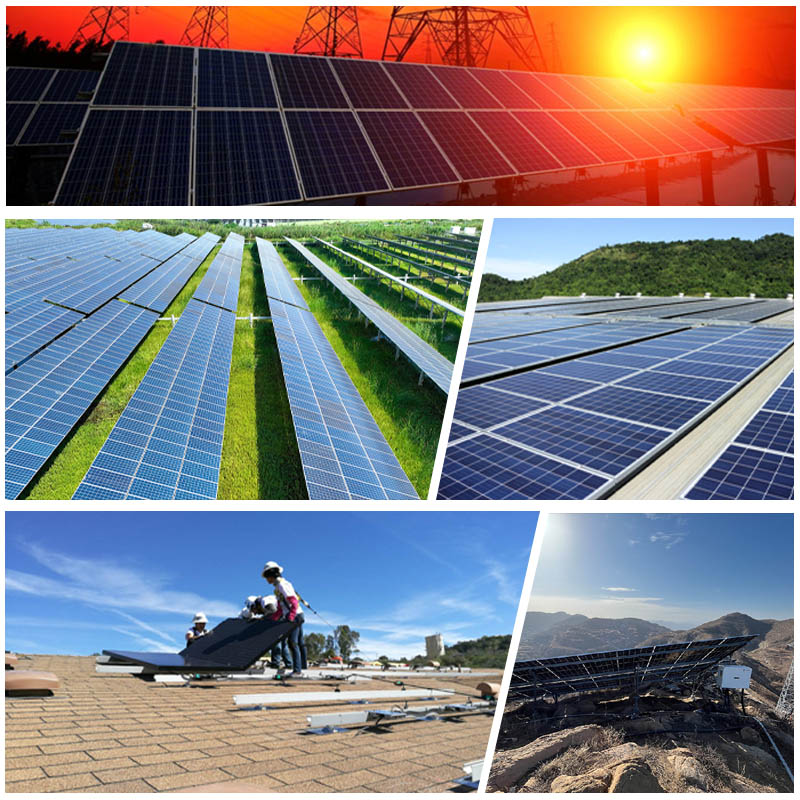

Project
