SOLAR INVERTER
Home /SOLAR INVERTER /Megarevo 3kw/4kw/5kw/6kw/8kw G2 Series Energy Storage Inverter with screen optional
Megarevo 3kw/4kw/5kw/6kw/8kw G2 Series Energy Storage Inverter with screen optional -Koodsun
Megarevo 3kw/4kw/5kw/6kw/8kw G2 Series Energy Storage Inverter with screen optional -Koodsun
Megarevo 3kw/4kw/5kw/6kw/8kw G2 Series Energy Storage Inverter with screen optional -Koodsun

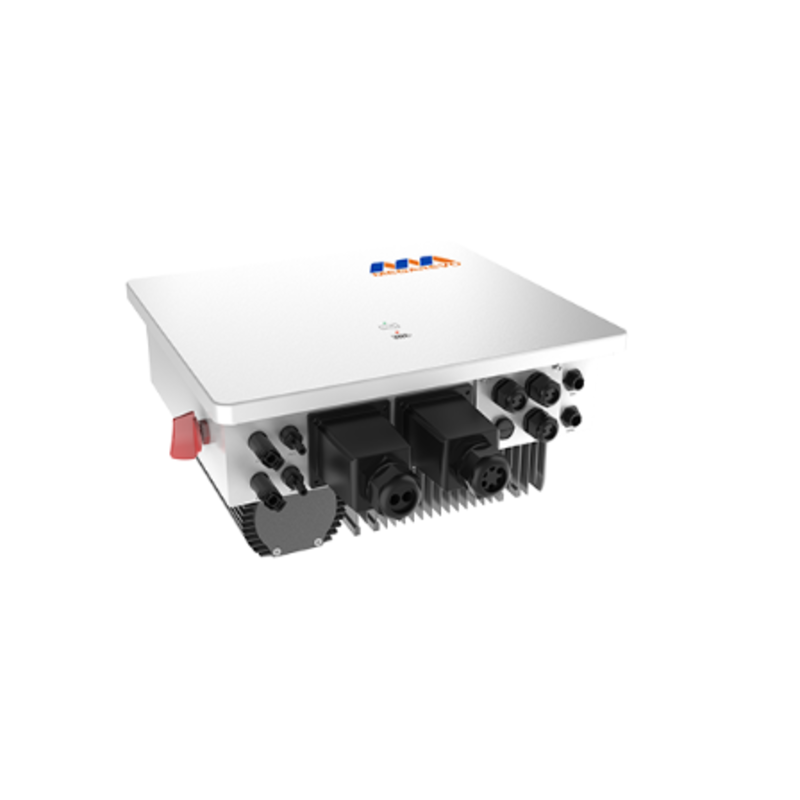

Megarevo 3kw/4kw/5kw/6kw/8kw G2 Series Energy Storage Inverter with screen optional

R3KL1-AC  R3K6L1-AC  R4KL1-AC   R4K6L1-AC

R5KL1-AC   R5KL1-AC   R6KL1-AC   R8KL1-AC




Place of Origin
Guangdong, China



Brand Name
Megarevo



Model Number
R5KLNA



Input Voltage
125-550V



Output Voltage
120/240V,208V,230V



Output Current
24A



Output Frequency
50Hz/ 60Hz



Size
430*220*710mm



Certificate
CE,TUV



Warranty
5 years



Weight
41kg



Product name
America ESS Split- Phase Inverter



Color
White



Output waveform
Pure Sine Wave Output Inverter



Display
LCD



Battery type
<div class="right" style="border: 1px solid #dddddd; --tw-border-spacing-x: 0; --tw-border-spacing-y: 0; --tw-translate-x: 0; --tw-tra

Datasheets

Model R3KL1-AC R3K6L1-AC R4KL1-AC R4K6L1-AC R5KL1-AC R6KL1-AC R8KL1-AC
  R3KL1D-AC R3K6L1D-AC R4KL1D-AC R4KL1D-AC R5KL1D-AC R6KL1D-AC R8KL1D-AC
AC output
Rated power (kW) 3 3.68 4 4.6 5 6 8
Max.AC current output to grid (A) 14.3 16 19.1 20 21.7 28.7 38.3
Nominal voltage/range(V) 230 /176~270
Frequency (Hz) 50 /60
Power factor 1(0.8 leading-0.8 lagging)
THDi <2%
AC grid type L+N+PE
Battery
Battery voltage range(V) 40~58
Max. charging voltage(V) 58
Max. charge/discharge current(A) 60/60 72/72 80/80 92/92 100/100 120/120 160/160
Battery type Lithium /Lead-acid
Communication interface CAN/RS485
Max.battery output power/ duration (kW/min) / 8/20
EPS output
Rated power (kW) 3 3.68 4 4.6 5 6 8
Rated voltage(V) 230
Max.AC current output to grid (A) 14.3 16 19.1 20 21.7 28.7 38.3
Rated frequency(Hz) 50/60
Automatic switchover time(ms) <10
THDu <2%
Overload capacity 110%, 60S/ 120%, 30S/ 150%, 10S
General data
Battery charge/discharge efficiency 96%
Max. efficiency 98%
Europe efficiency 97%
MPPT efficiency 99.9%
Ingress protection IP65
Noise emission (dB) <35
Operation temperature (℃) -25~ 60
Cooling Natural
Relative humidity 0 ~95%(non-condensing)
Operating altitude 0-2000m (no derating below 2000m)
Dimensions W*D*H (mm) 454*200*467 484*200*467
Net weight (kg) 19 22
Topology Non-isolated
Self-consumption at night (W) <15

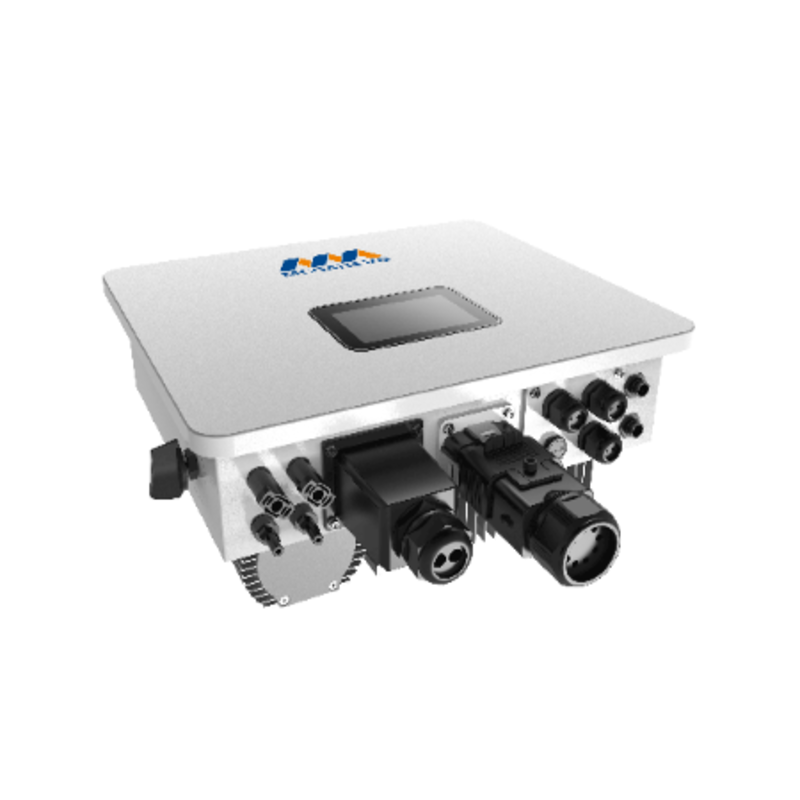

Display Optional (colorful touch screen /no screen)
Interface:RS485 / Wifi / 4G / CAN / DRM Yes/ Opt/ Opt/ Yes/ Yes

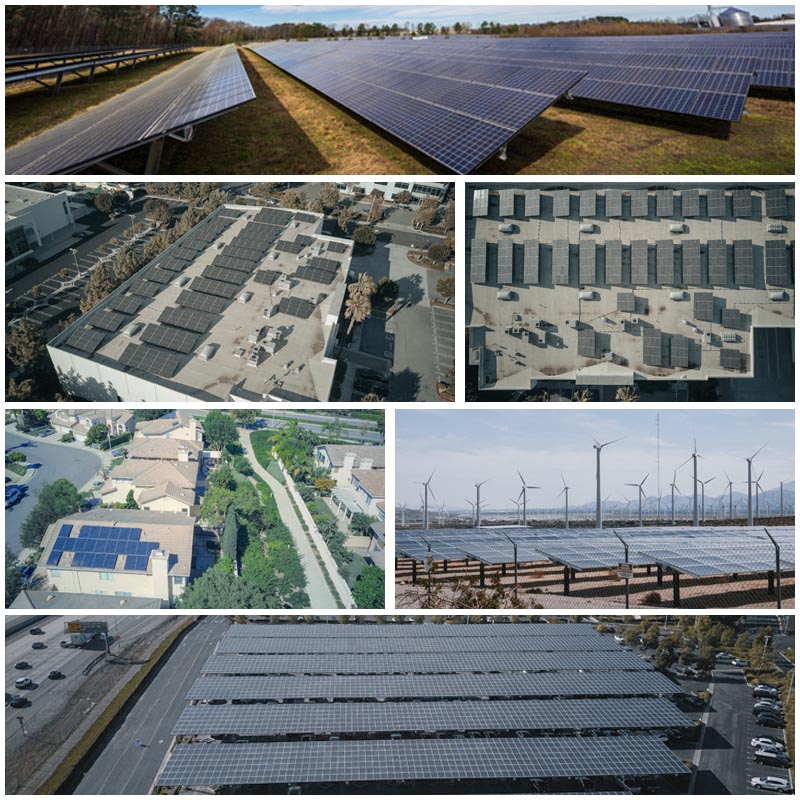

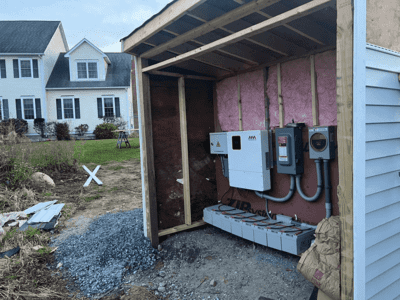

Project











leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
