SRNE ASF H3 Series  Off-Grid Inverters 8kw 10kw 12kw three-phase 2 MPPTs -Koodsun
SRNE ASF H3 Series  Off-Grid Inverters 8kw 10kw 12kw three-phase 2 MPPTs -Koodsun

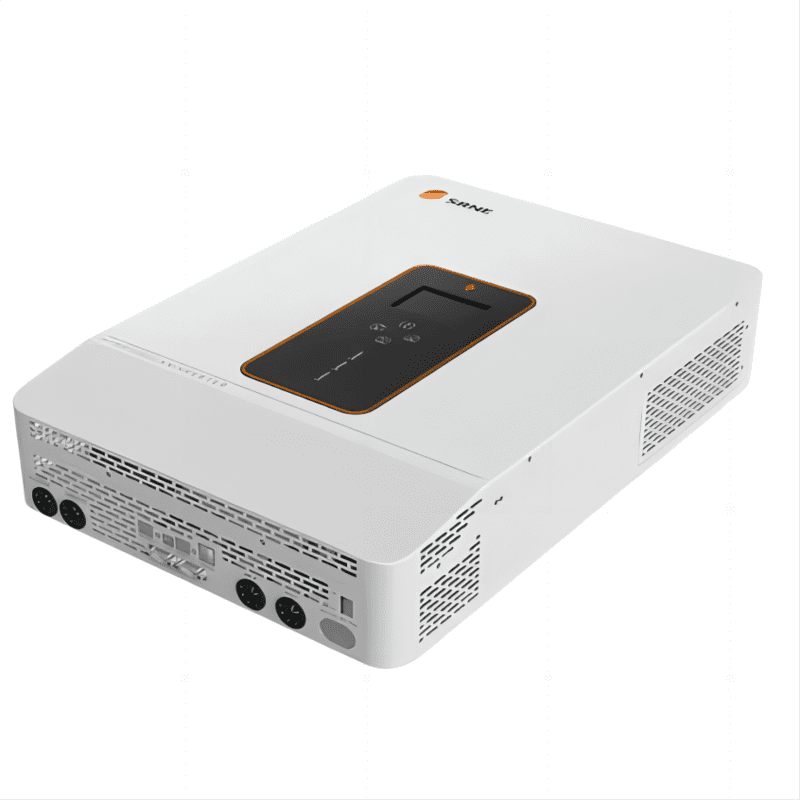

SRNE ASF H3 Series Off-Grid Inverters 8kw 10kw 12kw three-phase 2 MPPTs

ASF4880SH3

ASF48100SH3

ASF48120SH3

Place of Origin
Guangdong, China



Brand Name
SRNE



Model Number
ASF4880SH3



Input Voltage
<800Vdc/800Vdc



Output Voltage
230/400Vac



Output Current
<22A/22A



Output Frequency
50/60Hz



Size
620*445*130mm



Certificate
IEC62109-1, IEC62109-2,UL1741/RoHS/EMC



Warranty
2 years



Weight
27kg

Datasheet



MODEL
ASF4880SH3
ASF48100SH3
ASF48120SH3
INVERTER OUTPUT
Rated Output Power
8,000W
10,000W
12,000W
Max. Peak Power
16,000W
20,000W
24,000W
Rated Output Voltage
230/400Vac(three-phase)
Capacity of Motor Load
5HP
6HP
6HP
Rated Frequency
50/60Hz
Output Waveform
pure sine wave
Switching Time
10ms(typical)
BATTERY
Battery Types
Li-ion / Lead-Acid / User Defined
Rated Battery Voltage
48Vdc
Voltage Range
40~60Vdc
Max. PV Charging Current
180A
220A
260A
Max. Utility / Generator Charging Current
100A
120A
120A
Max. Hybrid Charging Current
180A
220A
260A
PV INPUT
No. of MPPT
2
Max. Input Power
6,000W/6,000W
7,500W/7,500W
9,000W/9,000W
Max. Input Current
22A/22A
Max. Open-circuit Voltage
800Vdc/800Vdc
MPPT Operating Voltage Range
200~650Vdc/200~650Vdc
UTILITY / GENERATOR INPUT
Input Voltage Range
phase voltage 170~280V, line voltage 305~485V
Input Frequency Range
50/60Hz
Bypass Overload Current
63A
EFFICIENCY
MPPT Tracking Efficiency
99.9%
Max. Battery Inverter Efficiency
≥92%
European Efficiency
97.2%
97.5%
97.5%
GENERAL
Dimensions
620*445*130mm(2.03*1.46*0.43ft)
Weight
27kg(59.52lb)
Protection Degree
IP20,indoor only
Ambient Temp
-10~55℃, >45℃ derated
Noise
<60dB
Cooling Method
air cooling
Warranty
2 years
COMMUNICATION
Internal Interface
RS485 / CAN / USB / Dry contact
External Module (optional)
Wi-Fi / GPRS
CERTIFICATION
Safety
IEC62109-1, IEC62109-2,UL1741
EMC
EN61000-6-1,EN61000-6-3,FCC15 classB
RoHS
Yes

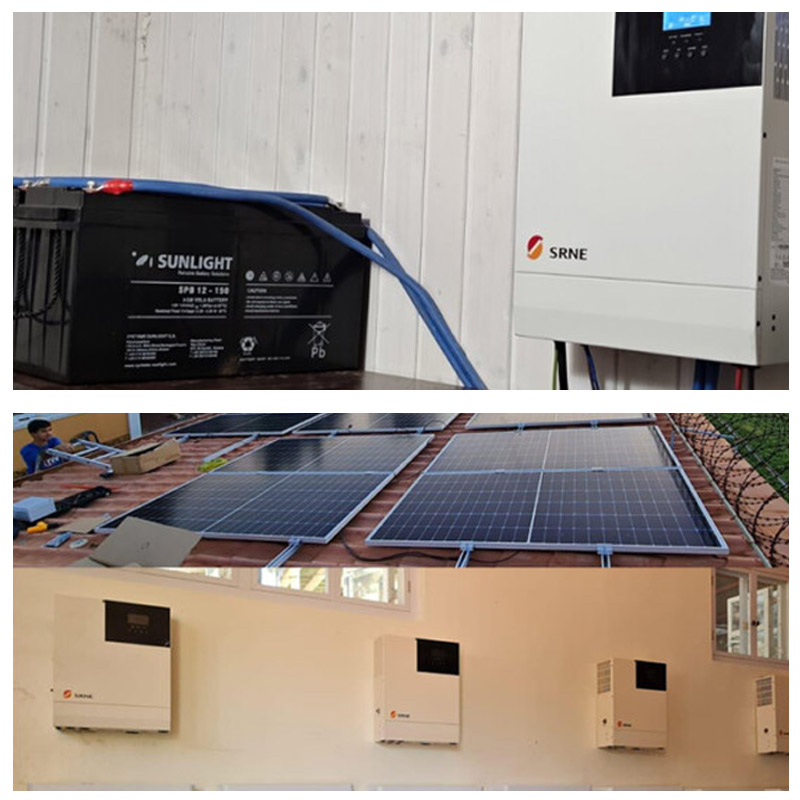

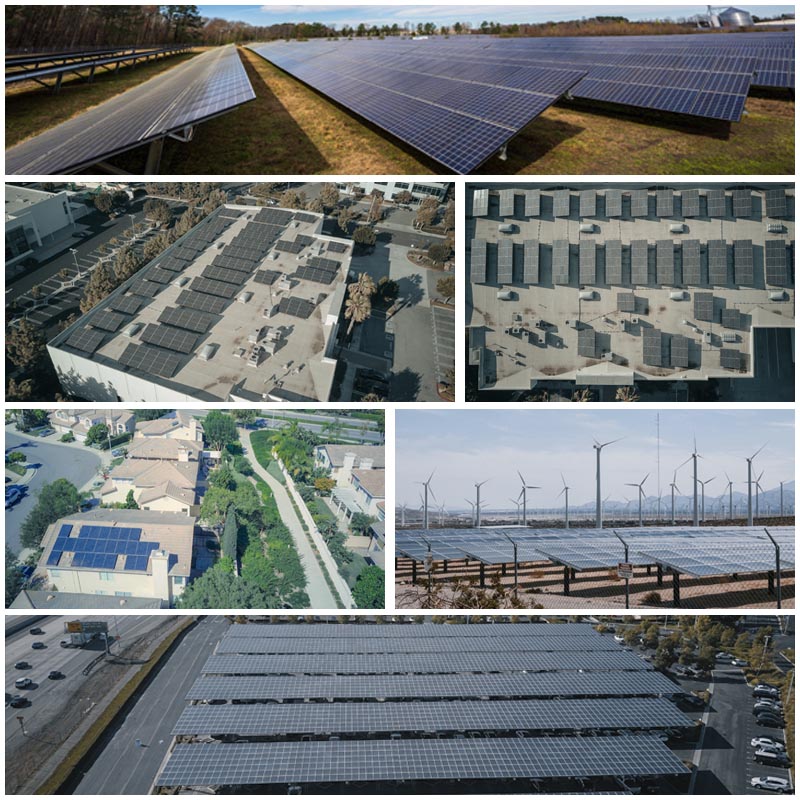

Project
