SOLAR INVERTER
Home /SOLAR INVERTER /Deye Hybrid 3 Phase Solar Inverter 10KW 12KW 380V 400V 60HZ residential Inverters Low Voltage
Deye Hybrid 3 Phase Solar Inverter 10KW 12KW 380V 400V 60HZ residential Inverters  Low  Voltage -Koodsun
Deye Hybrid 3 Phase Solar Inverter 10KW 12KW 380V 400V 60HZ residential Inverters  Low  Voltage -Koodsun
Deye Hybrid 3 Phase Solar Inverter 10KW 12KW 380V 400V 60HZ residential Inverters  Low  Voltage -Koodsun

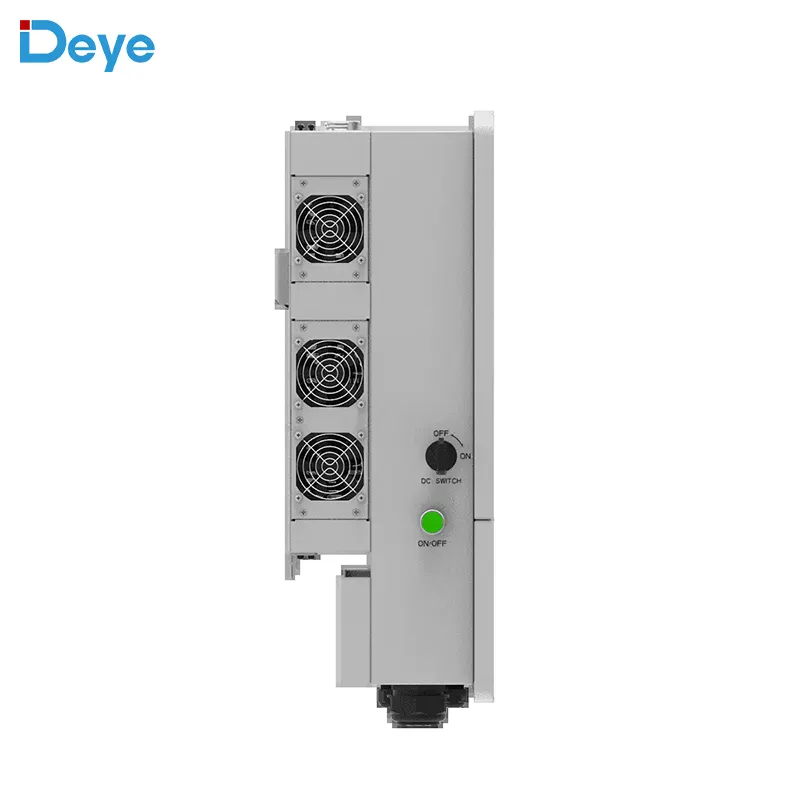

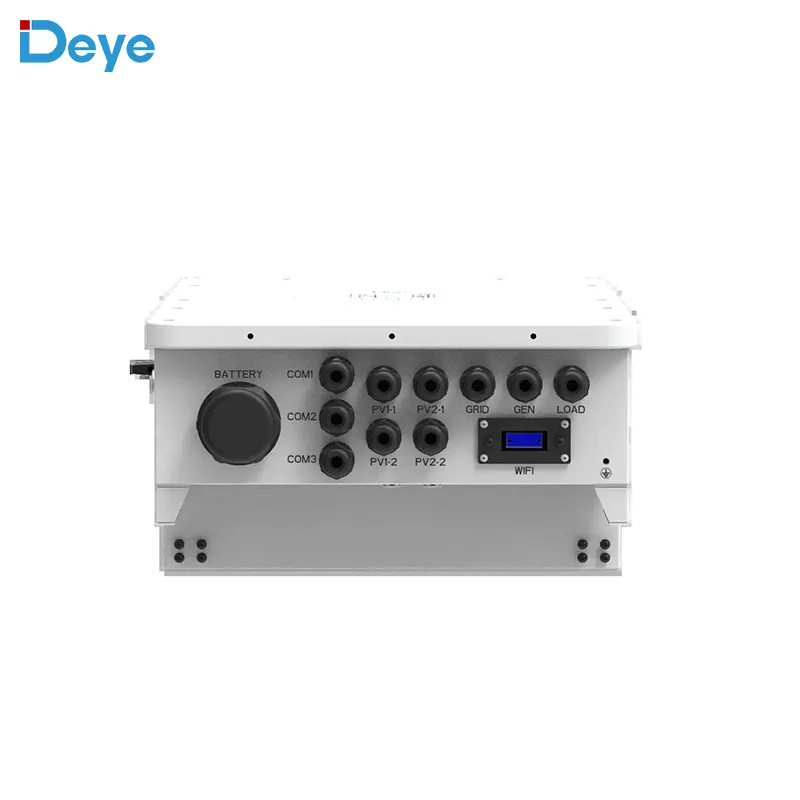

Deye Hybrid 3 Phase Solar Inverter 10KW 12KW 380V 400V 60HZ residential Inverters Low Voltage

SUN-10K-SG04LP3-EU
SUN-12K-SG04LP3-EU
  • Brand:                  Koodsun
  • Product Origin:

    China
  • Shipping Port:

    Ningbo, Shanghai, Shenzhen
  • Type:

    Hybrid
  • Output Voltage :

    360-440V 60hz
  • Item No:

    3Phase
  • Voltage :

    DC 48V
  • Certification:

    CE, TUV, IEC, UL, VDE,,,,Etc
  • Lead Time:

    10-20days
  • Warranty:

    10 Years

Datasheets

Model 10KW-HY-48 12KW-HY-48
Battery
Battery Type lithium ion/lead acid battery
Battery Voltage Range 40-60V
MAX Charging Current 210A 240A
MAX Discharger Current 210A 240A
Charging Curve 3Stages/Equalization
External Temperature Sensor YES YES
Charging strategy for Lithium battery Self adaptation to BMS

PV Input Data
MAX PV Input Power 13000W 15600W
MAX PV Input Voltage 800VDC
MPPT Voltage Range 200-650VDC
PV Input Current 26A+13A 26A+13A
NO. of MPPT Trackers 2 2
No. of PV Strings per MPPT 2+1 2+1

AC Output Data
Rated AC Output Power and UPS power 10000W 12000W
MAX AC Output Power 11000W 13200W
Peak Power of OFF GRID 2TIMES of Rated Power, 10S.
AC Output Rated Current 15A 18A
Max. Continuous AC Passthrough (A) 50A 50A
Output Frequency and Voltage 50/60Hz; 230/400Vac (Three phase) 50/60Hz; 230/400Vac (Three phase)
Current Harmonic Distortion THD<3% (Linear load<1.5%) THD<3% (Linear load<1.5%)

Efficiency
MAX Efficiency 97.6% 97.6%
MPPT Efficiency 99.9% 99.9%

Protection
PV Input Lightning Protection Integrated Integrated
Anti-islanding Protection Integrated Integrated
PV String Input Reverse Polarity Protection Integrated Integrated
Output Over Current Protection Integrated Integrated
Output Over Voltage Protection Integrated Integrated
Surge protection DC Type II / AC Type II DC Type II / AC Type II

Certiffcations and Standards
Grid Regulation IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1 IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1

Safety

EMC/Standard

IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12 IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12

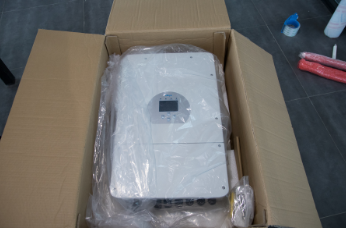

Packing
