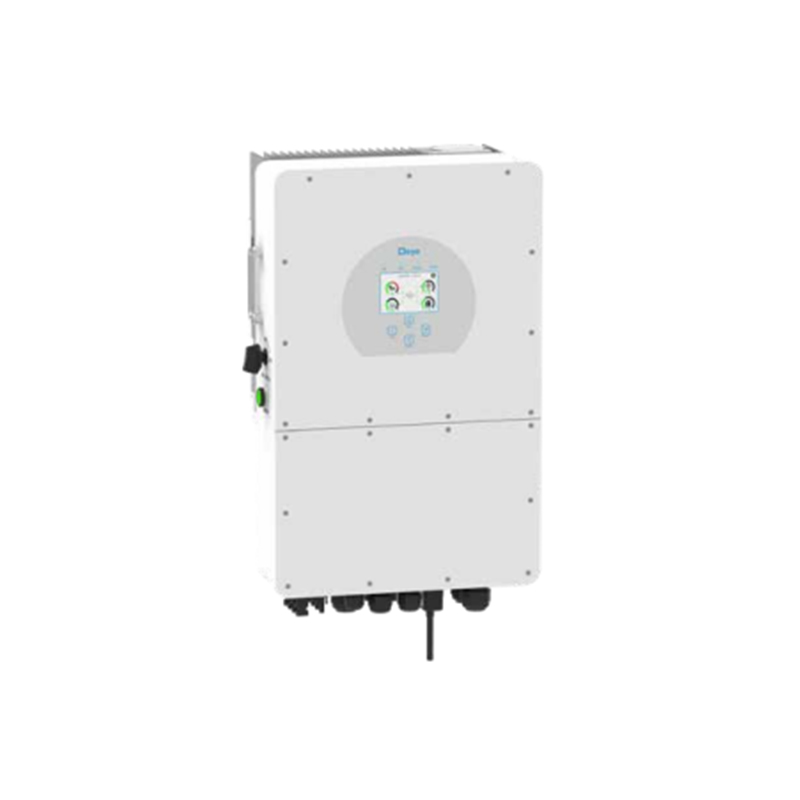

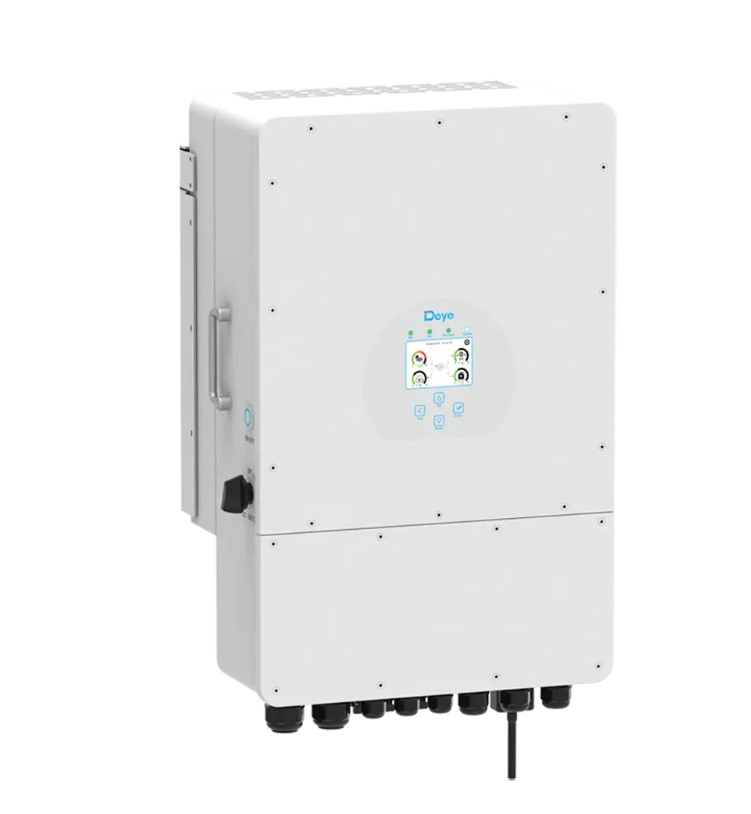

DEYE SUN-5/6/8/10/12K-SG04LP3-EU 5-12kW Three Phase 2 MPPT Low Voltage Battery Hybrid Inverter

Place of Origin
China
Brand Name
Deye
Model Number
SUN-5/6/8/10/12K-SG04LP3-EU
Weight
33.6kg
Application
Hybrid Solar System

Product Description



SUN 5/6/8/10/12K-SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.



Model

SUN-5K-SG04LP3-EU

SUN-6K-SG04LP3-EU

SUN-8K-SG04LP3-EU

SUN-10K-SG04LP3-EU SUN-12K-SG04LP3-EU

Battery Input Data

Battery Type

Lead-acid or Lithium-ion

Battery Voltage Range (V)

40~60

Max. Charging Current (A)

120

150

190

210 240

Max. Discharging Current (A)

120

150

190

210 240

Charging Curve

3 Stages / Equalization

External Temperature Sensor

Yes

Charging Strategy for Li-Ion Battery

Self-adaption to BMS

PV String Input Data

Max. DC Input Power (W)

6500

7800

10400

13000 15600

Rated PV Input Voltage (V)

550(160~800)

Start-up Voltage (V)

160

MPPT Voltage Range (V)

200-650

Full Load DC Voltage Range (V)

350-650

PV Input Current (A)

13+13

26+13
Max. PV ISC (A)

17+17

34+17

No.of MPP Trackers

2

No.of Strings per MPP Tracker

1+1

2+1

AC Output Data

Rated AC Output Active Power (W)

5000

6000

8000

10000 12000
Max AC Output Active Power (W)

5500

6600

8800

11000 13200

AC Output Rated Current (A)

7.6/7.2

9.1/8.7

12.1/11.6

15.2/14.5 18.2/17.4

Max AC Output  Current (A)

8.4/8

10/9.6

13.4/12.8

16.7/15.9 20/19.1
Max. Three-phase Unbalanced Output Current (A)

11.4/10.9

13.6/13

18.2/17.4

22.7/21.7 27.3/26.1
Max Output short circuit current (A)

75

Max. Continuous AC Passthrough (A)

45


Peak Power (off grid)

2 time of rated power, 10 S

Power Factor

0.8 leading to 0.8 lagging

Output Frequency and Voltage

50/60Hz;3L/N/PE 220/380Vac,230/400Vac

Grid Type

Three Phase


Total Harmonics Current Distortion (THDi)
<3% (of nominal power)

DC Current Injection

<0.5% In

Efficiency

Max. Efficiency

97.60%

Euro Efficiency

97.00%

MPPT Efficiency

99.90%

Protection

Integrated
Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge Protection

Surge protection

DC Type III / AC Type III

Over Voltage Category
DC Type II/AC Type III

Certifications and Standards

Grid Regulation

IEC 61727, IEC 62116, EN 50549, AS 4777.2, VDE-AR-N4105, UNE 217002, VDE 0126, CEI 0-21,
OVE-Richtlinie R25, NRS 097, C10/11

Safety EMC / Standard

IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

General Data

Operating Temperature Range (℃)

-40~60℃, >45℃ Derating

Cooling

Smart Cooling

Noise (dB)

≤45 dB

Communication with BMS

RS485; CAN

Weight (kg)

33.6

Cabinet Size (WxHxD mm)
422×702×281 (Excluding Connectors and Brackets)

Protection Degree

IP65

Installation Style

Wall-mounted

Warranty

5 Years (10 Years Optional)

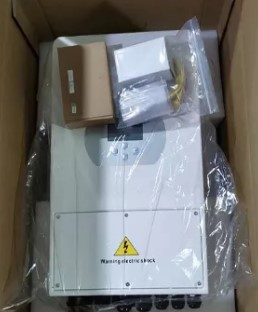

Packing

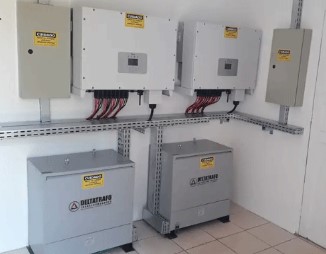

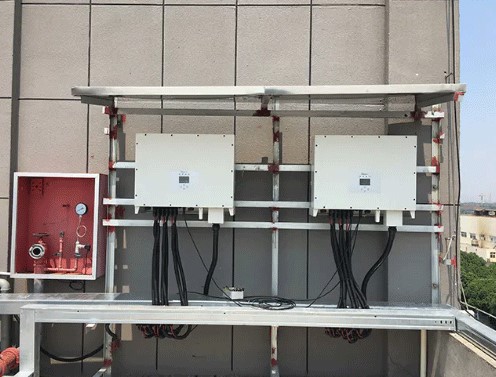

Projects
