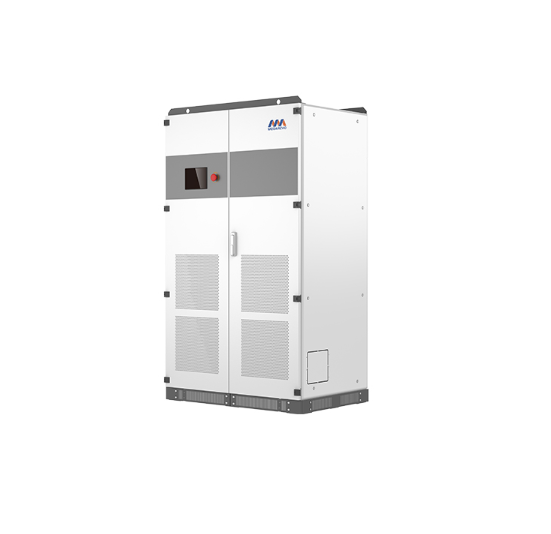

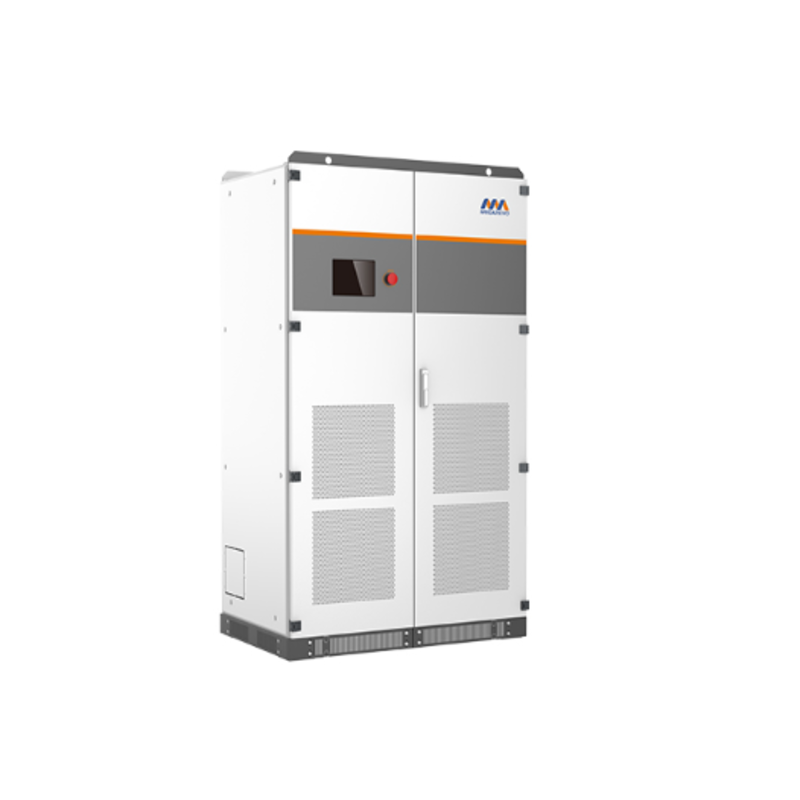

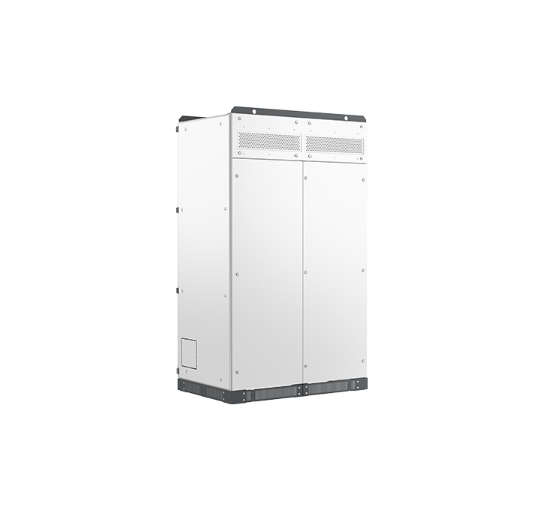

Megarevo series PCS Power conversion system 500kw



Place of Origin
Guangdong, China



Brand Name
Megarevo



Model Number
Power Conversion System(MEGA0TS)



Output Frequency
50Hz / 60Hz(45~55/55~65Hz)



Size
4 different size



Certificate
TUV CE IEC CGC



Warranty
5 Years



Weight
605-2665kg
Inquiry now

  • Datasheets

    Technical specifification
    MEGA
    0030TS
    MEGA
    0050TS
    MEGA
    0100TS
    MEGA
    0150TS
    MEGA
    0250TS
    MEGA
    0500TS
    DC(battery)
    Voltage range (V)
    250~850
    320~850
    420~850
    420~850
    420~850
    500~850
    Max. Current (A)
    137
    178
    270
    405
    673
    1,128
    AC(on-grid)
    Max output power(kVA)
    33
    55
    110
    165
    275
    550
    Rate output power(kW)
    30
    50
    100
    150
    250
    500
    Rated voltage(V)
    400
    Voltage range(V)
    320~460
    Rated current(A)
    43
    72
    144
    216
    361
    722
    Max. output current(A)
    48
    80
    159
    238
    397
    794
    Rated frequency (Hz
    50/60
    Frequency range (Hz)
    45~55/55~65
    THDi
    <3%
    Power factor
    1lagging-1leading（Settable）
    AC connection
    3W+N+PE
    AC(off grid)
    Rated voltage(V)
    400
    THDu
    ＜1% Linear ＜5% Nonlinear
    Rated frequency(Hz)
    50/60
    Overload capacity
    110% long-term
    General data
    Max.efficiency
    96.3%
    96.5%
    97.1%
    97.1%
    97.3%
    97.5%
    Ingress protection
    IP21
    Noise emission(dB)
    <70
    Operating temperature(℃)
    -30～ 55
    Cooling
    Forced air
    Relative humidity
    0 ~95% non-condensing
    Altitude
    5,000m(>3,000 Derating)
    Dimension W*D*H (mm)
    800*800*1,900
    800*800*1,900
    800*800*2,050
    800*800*2,050
    1,200*800*2,050
    1,600*1,050*2,050
    Weight(kg)
    605
    676
    936
    1,057
    1,582
    2,665
    Transformer ratio
    100/400
    200/400
    270/400
    270/400
    270/400
    315/400
    Self-consumption (W)
    <100
    On/ Offff grid switching
    Automatic
    Display and communication
    Display
    LCD touch-screen
    BMS communication
    RS485, CAN
    EMS communication
    RS485, TCP/IP
    Certifificates
    IEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4,CGC



    Advantage

    Friendly & Flexible

    • Wide battery voltage range, support multiple battery type access;

    • Reactive power, active power adjustable;

    • Off-grid cold start function, support multi-machine parallel function;

    Safe & Reliable

    • High performance DSP, optimized control circuit design, high

     reliable system;

    • Patented control detection algorithm to ensure equipment failure

     diagnose;

    • AC/DC dual backup for auxiliary power supply;

    Intelligent & Efficient

    • Highest power density, maximum efficiency of 98.7%;

    • Low power consumption fan, with intelligent temperature control

     system;

    • With grid-connected charging and discharging,

     off-grid independent inverter function;

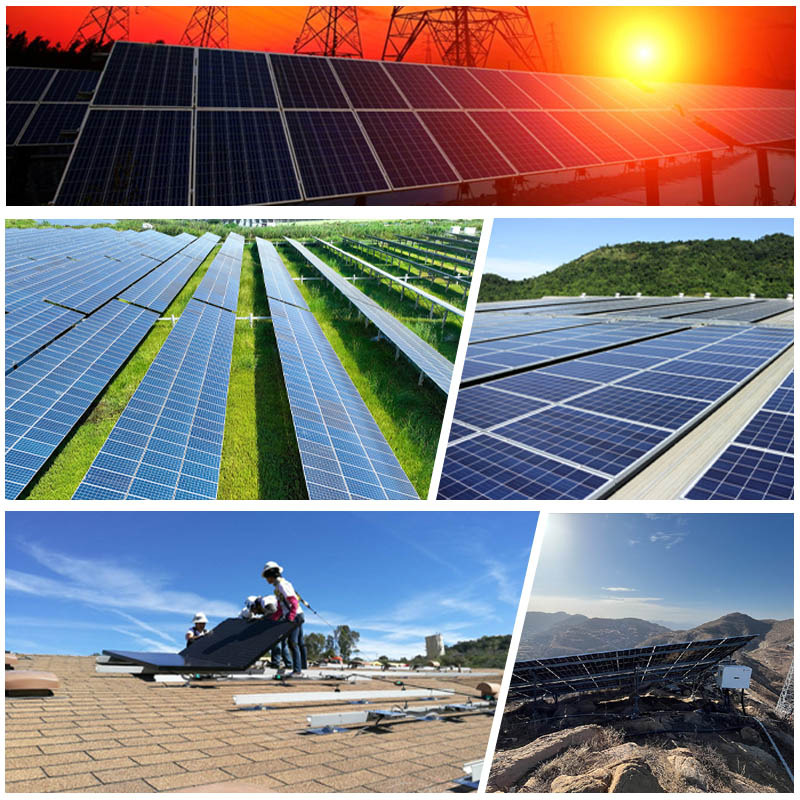

    Project
