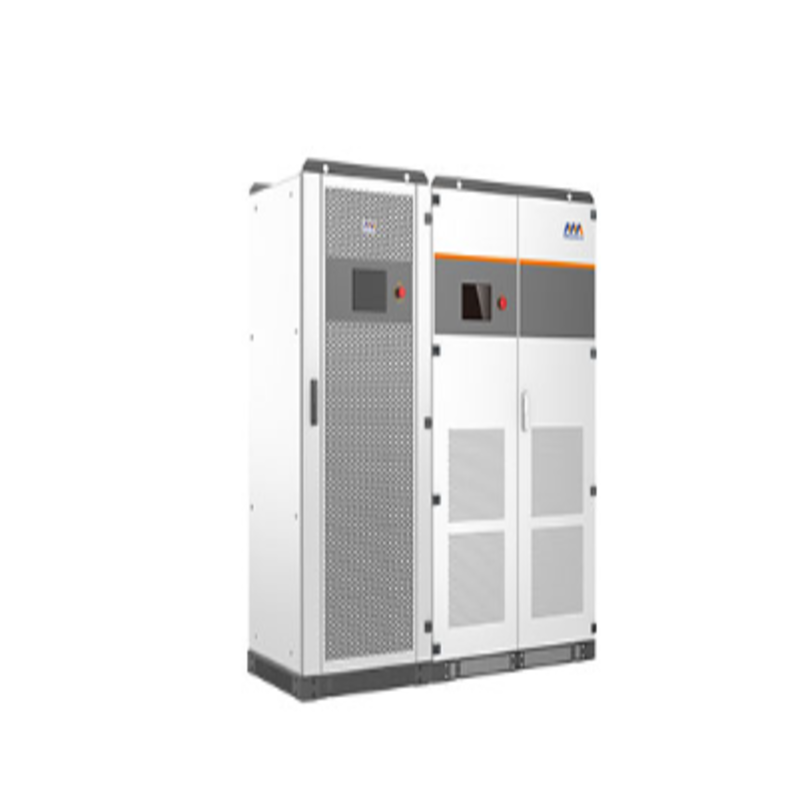

MPS0500
Datasheets
| Technical Specification | MPS0500 |
| AC(on-grid) | |
| Max output power(kVA) | 550 |
| Rated power(kW) | 500 |
| Rated voltage(V) | 400 |
| Rated current (A) | 722 |
| Voltage range(V) | 320~460 |
| Rated frequency (Hz) | 50/60 |
| Frequency range(Hz)) | 45~55/55~65 |
| THDi | <3% |
| Power factor | 1lagging~1leading |
| AC connection | 3W+N+PE |
| Transformer ratio | 315/400 |
| AC(Off Grid) | |
| Rated output power(kVA) | 550 |
| Rated power(kW) | 500 |
| Rated voltage(V) | 400 |
| Rated current(A) | 722 |
| THDu | ≤1% linear; or≤5% nonlinear |
| Rated frequency(Hz) | 50/60 |
| Overload capacity | 110% long-term |
| Photovoltaic input | |
| Max.PV input voltage(V) | 1000 |
| Max.PV power(kW) | 600/660/720 |
| MPPT voltage range(V) | 250-850 |
| MPPT voltage range@full load (V) | 450-850 |
| Battery | |
| Battery voltage range(V) | 500~850 |
| Max. charging power(kW) | 600/660/720 |
| General data | |
| Dimension W*D*H(mm) | (600*720*2,050)*2+ 1,600*1050*2,050 |
| Weight（kg） | 3,265/3,295/3,325 |
| Operation temperature(℃) | -30 ~ 55 |
| Relative humidity | 0 ~95% non-condensing |
| Ingress protection | IP20 |
| Noise emission(dB) | <70 |
| Operation altitude (m) | 5,000(>3,000 Derating) |
| Cooling | Air Cooling |
| Display and communication | |
| Display | LCD touch-screen |
| BMS communication | RS485, CAN |
| EMS communication | RS485, TCP/IP |
| Certificates |
EN62109-1/-2， EN62477-1, EN61000-6-2, EN61000-6-4, South Africa NRS097-2-1:2017, Pakistan & India IEC61727, IEC62116,IEC 61683 |
Advantage
Megarevo MPS series hybrid inverters adopt an integrated design, integrating PV controllers, energy storage converters, and on/off-grid automatic switching units, greatly improving customer deployment efficiency and reducing installation costs. The PV capacity can be flexibly configured, greatly improving the microgrid system availability, and is suitable for remote areas and islands where power is relatively weak. Our microgrid inverter's strong load adaptability and complete protection function ensure power supply security and stability.
Project

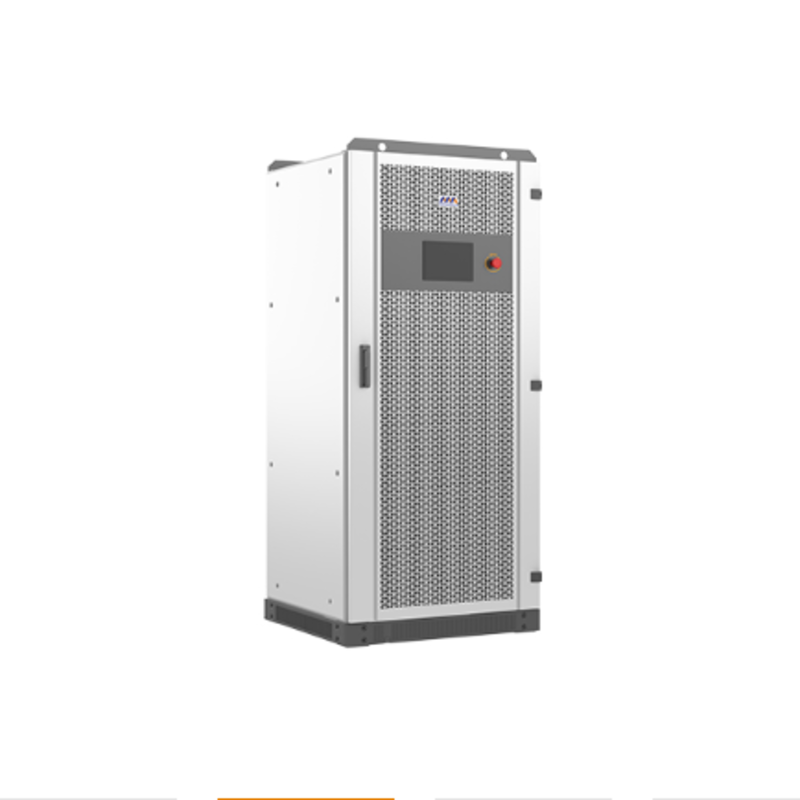

Place of Origin Guangdong, China Brand Name Megarevo Model Number Power Conversion System(MEGA0TS) Output Frequency 50Hz / 60Hz(45~55/55~65Hz) Size 4 different size Certificate TUV CE IEC CGC Warranty 5 Years Weight 605-2665kg
R5KLNA R6KLNA R8KLNA R10KLNA Place of Origin Anhui, China Brand Name Sunway Model Number R8KLNA Input Voltage 48V Output Voltage 120VAC Output Current 47.8A Output Frequency 50Hz/60Hz Size 430x710x210mm Certificate CE/TUV Warranty 3 Years Weight 41KG Product name Hybrid Inverter for Home Solar Storage System Warranty 3 Years Application Solar Power System Home Inverter type Hybrid Tie Protection IP65
Place of Origin Jiangsu, China Brand Name MEGAREVO Model Number R6KH1NA Input Voltage 500V Output Voltage 240/211~264V Output Current 27.5~50A Output Frequency 50/60(HZ) Size 560* 220* 680mm Certificate UL1741SA all options Warranty 5 Years Weight 34KG MPPT Voltage Range 125~500V MPP Tracker/Strings 4/1 Battery Voltage Range 85~400V Battery Type Lithium /Lead-acid
R6KH3 R8KH3 R10KH3 R12KH3 R15KH3 Place of Origin Anhui, China Brand Name MEGAREVO Model Number R6KH3/R8KH3/R10KH3/R12KH3/R15KH3 Input Voltage 1000V Output Voltage 6000V/8000V/10000V/12000V/15000V Output Current 11.5A/14.4A/17.3A/21.7A Size 530*560*220mm Weight 31kg/32kg/34kg, 30kg/31kg/32kg/34kg Product name R8KH3/R10KH3/R12KH3/R15KH3 Application Solar Power System Home Inverter type On-grid Inverter Display LCD Display Color White Protection IP65 Battery type Lithium and Lead Acid Battery Communication RS485,CAN
R3KL1 R3K6L1 R4KL1 R4K6L1 R5KL1 R6KL1 Place of Origin Jiangsu, China Brand Name MEGAREVO Model Number R3KL1 Input Voltage 550V Output Voltage 230/176~270V Output Current 13~26A Output Frequency 50/60(HZ) Size 550*200*515mm Certificate IEC/EN 61000-6-1 Warranty 5 Years Weight 25KG MPPT Voltage Range 125~500V MPP Tracker/Strings 2/1 Battery Voltage Range 40~58V Battery Type Lithium /Lead-acid Communication Interface CAN/RS485
