Megarevo MPS series hybrid inverters microgrid system 100kw 150kw -Koodsun
Megarevo MPS series hybrid inverters microgrid system 100kw 150kw -Koodsun

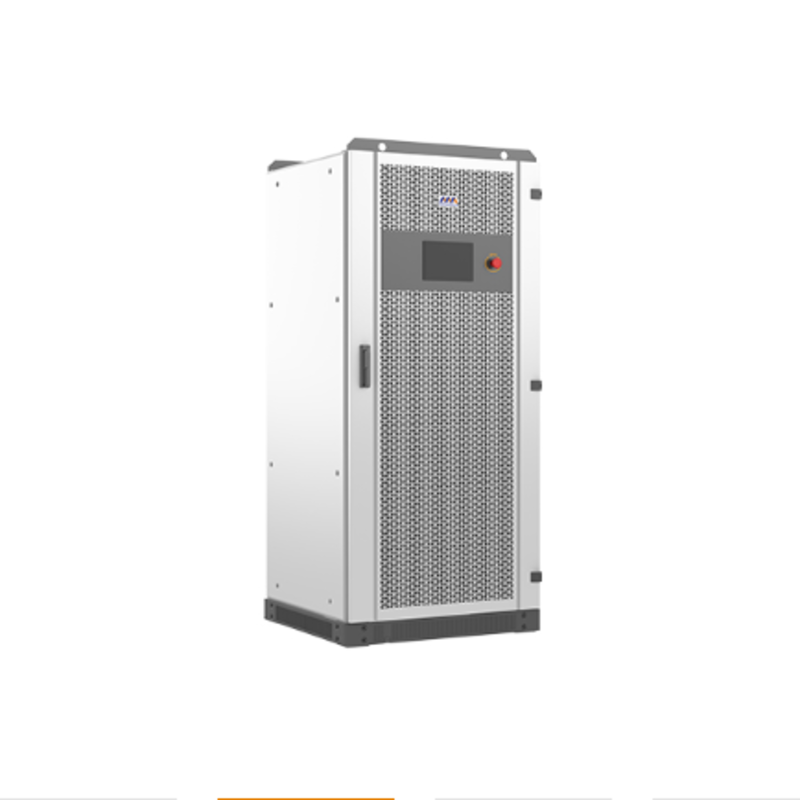

Megarevo MPS series hybrid inverters microgrid system 100kw 150kw

MPS100   MPS150

Place of Origin
Guangdong, China



Brand Name
Megarevo



Model Number
Megarevo MPS0030-MPS0500



Input Voltage
1000VDC



Output Voltage
400V



Output Current
43A /72A/ 144A /217A /361A /720A



Output Frequency
50Hz/60Hz



Size
800X800X1900mm



Certificate
CE(IEC/EN62109-1,-2),ROHS2.0



Warranty
5 years



Weight
440kg /620kg /900kg /1250kg /1700kg /3520kg



Product name
MPS Series Hybrid Inverter



Brand
Megarevo



Battery type
Lead acid or lithium battery



PV MPPT voltage range
200V-850V



Communication
RS485/CAN



<div class="attribute-item" style="border: 1px solid #dddddd; --tw-border-spacing-x: 0; --tw-border-spacing-y: 0; --tw-translate-x: 0; --tw-translate-y: 0; --tw-rotate: 0; --tw-skew-x: 0; --tw-skew-y: 0; --tw-scale-x: 1; --tw-scale-y: 1; --tw-scroll-snap-strictness: proximity; --tw-ring-offset-width: 0px; --tw-ring-offset-color: #fff; --tw-ring-color: rgba(59,130,246,.5); --tw-ring-offset-shadow: 0 0 #0000; --tw-ring-shadow: 0 0 #0000; --tw-shadow: 0 0 #0000; --tw-shadow-colored: 0 0 #0000; margin: 0px; padding: 0px; font-variant-numeric: inherit; font-variant-east-asian: inherit; font-variant-alternates: inherit; font-variant-position: inherit; font-stretch: inherit; line-height: inherit; font-family: Inter, 'SF Pro Text', Roboto, 'Helvetica Neue', Helvetica, Tahoma, Arial, 'PingFang SC', 'Microsoft YaHei'; font-optical-sizing: inherit; font-kerning: inherit; font-feature-settings: inherit; font-variation-settings: inherit; vertical-align: baseline;

Datasheets

Technical Specification MPS0100 MPS0150
AC(on-grid)
Max output power(kVA) 110 165
Rated power(kW) 100 150
Rated voltage(V) 400
Rated current (A) 144 216
Voltage range(V) 320~460
Rated frequency (Hz) 50/60
Frequency range(Hz)) 45~55/55~65
THDi <3%
Power factor 1lagging~1leading
AC connection 3W+N+PE
Transformer ratio 270/400
AC(Off Grid)
Rated output power(kVA) 110 165
Rated power(kW) 100 150
Rated voltage(V) 400
Rated current(A) 144 216
THDu ≤1% linear; or≤5% nonlinear
Rated frequency(Hz) 50/60
Overload capacity 110% long-term
Photovoltaic input
Max.PV input voltage(V) 1000
Max.PV power(kW) 120/180/240
MPPT voltage range(V) 250-850
MPPT voltage range@full load (V) 450-850
Battery
Battery voltage range(V) 420~850
Max. charging power(kW) 120/180/240
General data
Dimension W*D*H(mm) 1,200*800*2,050
Weight(kg) 1,120/1,150/1,180 1,250/1,280/1,310
Operation temperature(℃) -30 ~ 55
Relative humidity 0 ~95% non-condensing
Ingress protection IP20
Noise emission(dB) <70
Operation altitude (m) 5,000(>3,000 Derating)
Cooling Air Cooling
Display and communication
Display LCD touch-screen
BMS communication RS485, CAN
EMS communication RS485, TCP/IP
Certificates

EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, South Africa NRS097-2-1:2017,

Pakistan & India IEC61727, IEC62116,IEC 61683



Advantage

Megarevo MPS series hybrid inverters adopt an integrated design, integrating PV controllers, energy storage converters, and on/off-grid automatic switching units, greatly improving customer deployment efficiency and reducing installation costs. The PV capacity can be flexibly configured, greatly improving the microgrid system availability, and is suitable for remote areas and islands where power is relatively weak. Our microgrid inverter's strong load adaptability and complete protection function ensure power supply security and stability.
