SOLAR INVERTER
Home /SOLAR INVERTER /Megarevo MPS series hybrid inverters microgrid system 250KW
Megarevo MPS series hybrid inverters microgrid system 250KW -Koodsun
Megarevo MPS series hybrid inverters microgrid system 250KW -Koodsun

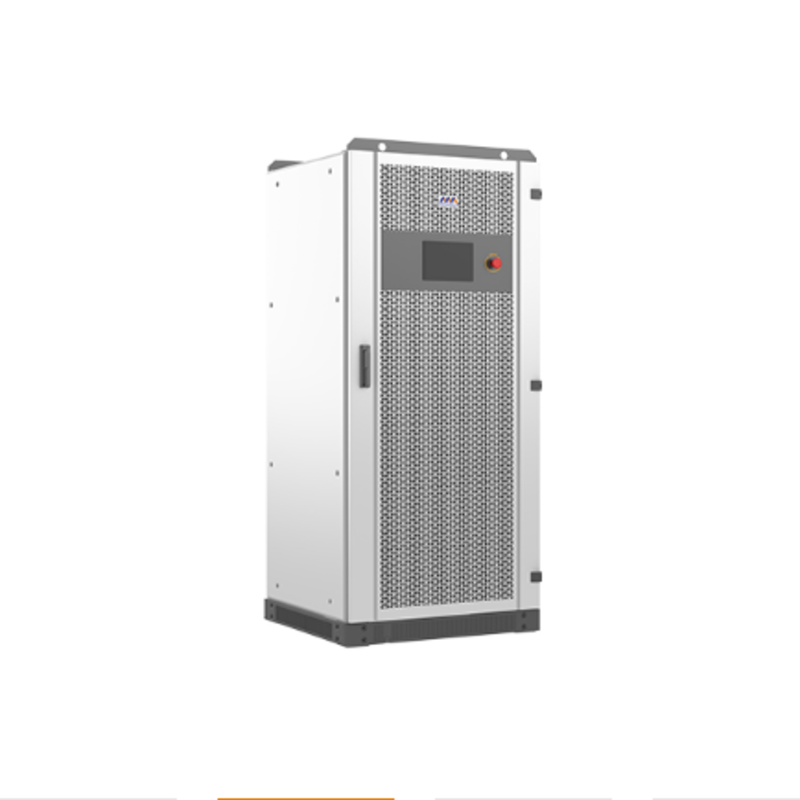

Megarevo MPS series hybrid inverters microgrid system 250KW

MPS0250

Place of Origin
Guangdong, China



Brand Name
Megarevo



Model Number
MPS Hybrid Inverter



Input Voltage
1000V/ (250-850)V



Output Voltage
400V/320~460V



Output Current
43-722A



Output Frequency
50Hz / 60Hz(45~55/55~65Hz)



Size
5 different size



Certificate
TUV CE



Warranty
5 Years



Weight
620-3325kg



Product name
30KW 50KW 100KW 150KW 250KW 500KW MPS Hybrid Inverter



AC connection
3W+N+PE



Operation temperature(℃)
0 ~95% non-condensing



Relative humidity
40~58



Altitude
5,000m(>3,000 Derating)



<div class="left" style="border: 1px solid #dddddd; --tw-b

Datasheets



Technical Specification MPS0250
AC(on-grid)
Max output power(kVA) 275
Rated power(kW) 250
Rated voltage(V) 400
Rated current (A) 361
Voltage range(V) 320~460
Rated frequency (Hz) 50/60
Frequency range(Hz)) 45~55/55~65
THDi <3%
Power factor 1lagging~1leading
AC connection 3W+N+PE
Transformer ratio 270/400
AC(Off Grid)
Rated output power(kVA) 275
Rated power(kW) 250
Rated voltage(V) 400
Rated current(A) 361
THDu ≤1% linear; or≤5% nonlinear
Rated frequency(Hz) 50/60
Overload capacity 110% long-term
Photovoltaic input
Max.PV input voltage(V) 1000
Max.PV power(kW) 300/360
MPPT voltage range(V) 250-850
MPPT voltage range@full load (V) 450-850
Battery
Battery voltage range(V) 420~850
Max. charging power(kW) 300/360
General data
Dimension W*D*H(mm) (600*720*2,050)*1+ 1,200*800*2,050
Weight(kg) 1,980/2,010
Operation temperature(℃) -30 ~ 55
Relative humidity 0 ~95% non-condensing
Ingress protection IP20
Noise emission(dB) <70
Operation altitude (m) 5,000(>3,000 Derating)
Cooling Air Cooling
Display and communication
Display LCD touch-screen
BMS communication RS485, CAN
EMS communication RS485, TCP/IP
Certificates

EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, South Africa NRS097-2-1:2017,

Pakistan & India IEC61727, IEC62116,IEC 61683





Advantage



Megarevo MPS series hybrid inverters adopt an integrated design, integrating PV controllers, energy storage converters, and on/off-grid automatic switching units, greatly improving customer deployment efficiency and reducing installation costs. The PV capacity can be flexibly configured, greatly improving the microgrid system availability, and is suitable for remote areas and islands where power is relatively weak. Our microgrid inverter's strong load adaptability and complete protection function ensure power supply security and stability.

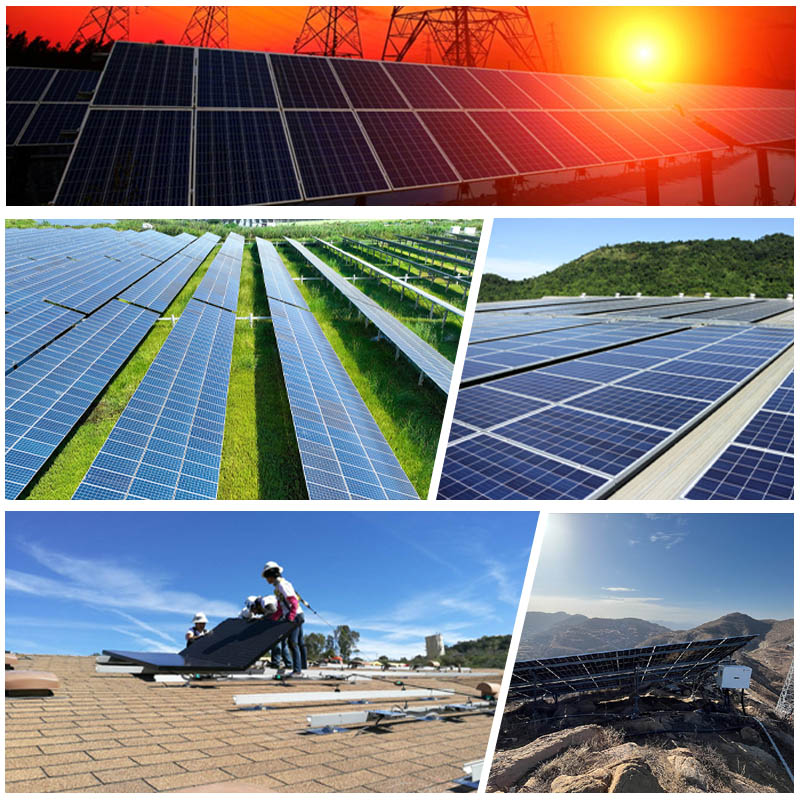

Project
