Home /SOLAR INVERTER /DEYE Low voltage single-phase energy storage inverter 8kw for home use
DEYE Low voltage single-phase energy storage inverter 8kw for home use -Koodsun
DEYE Low voltage single-phase energy storage inverter 8kw for home use -Koodsun
DEYE Low voltage single-phase energy storage inverter 8kw for home use -Koodsun

DEYE Low voltage single-phase energy storage inverter 8kw for home use



SUN-8K-SG05LP1-EU

Place of Origin
Jiangsu, China



Brand Name
Deye



Input Voltage
2200v



Output Voltage
220V/380v



Output Current
10A



Output Frequency
50/60(HZ)



Size
457*452*202 mm



Certificate
CE TUV



Warranty
5 years



Weight
17KG



color
white



Application
home ,commercial



Rated Power
10000w



Communication
WIFI / RS485



Protection Degree
IP65



weight
12kg



<div class="attribute-item" style="border: 1px solid #dddddd; --tw-border-spacing-x: 0; --tw-border-spacing-y: 0; --tw-translate-x: 0; --tw-translate-y: 0; --tw-rotate: 0; --tw-skew-x: 0; --tw-skew-y: 0; --tw-scale-x: 1; --tw-scale-y: 1; --tw-scroll-snap-strictness: proximity; --tw-ring-offset-width: 0px; --tw-ring-offset-color: #fff; --tw-ring-color: rgba(59,130,246,.5); --tw-ring-offset-shadow: 0 0 #0000; --tw-ring-shadow: 0 0 #0000; --tw-shadow: 0 0 #0000; --tw-shadow-colored: 0 0 #0000; margin: 0px; padding: 0px; font-variant-num
Inquire Now

Datasheets

Model
SUN-6K-SG05LP1-EU
Battery Input Data
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range (V)
40~60
Max. Charging Current (A)
135
Max. Discharging Current (A)
135
External Temperature Sensor
Yes
Charging Curve
3 Stages / Equalization
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)
7800
Rated PV Input Voltage (V)
370 (125~500)
Start-up Voltage (V)
125
MPPT Voltage Range (V)
150-425
Full Load DC Voltage Range (V)
300-425
PV Input Current (A)
13+13
Max. PV I (A)
17+17
No.of MPP Trackers
2
No.of Strings per MPP Tracker
1
AC Output Data
Rated AC Output and UPS Power (W)
6000
Max. AC Output Power (W)
6600
AC Output Rated Current (A)
27.3/26.1
Max. AC Current (A)
30/28.7
Max. Continuous AC Passthrough (A)
40
Peak Power (offff grid)
2 time of rated power, 10 S
Power Factor
0.8 leading to 0.8 lagging
Output Frequency and Voltage
50/60Hz; L/N/PE 220/230Vac (single phase)
Grid Type
Single Phase
Total Harmonic Distortion (THD)
<3% (of nominal power)
DC current injection
<0.5% In
Efficiency
Max. Efficiency
97.60%
Euro Efficiency
96.50%
MPPT Efficiency
99.90%
Protection
Integrated
PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge protection
Output Over Voltage Protection
DC Type II/AC Type III

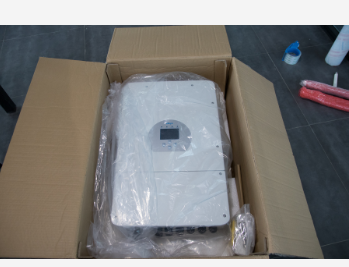

Packing
