Deye 3.6kw 5kw 6kw Low voltage single-phase energy storage inverter for residential use -Koodsun

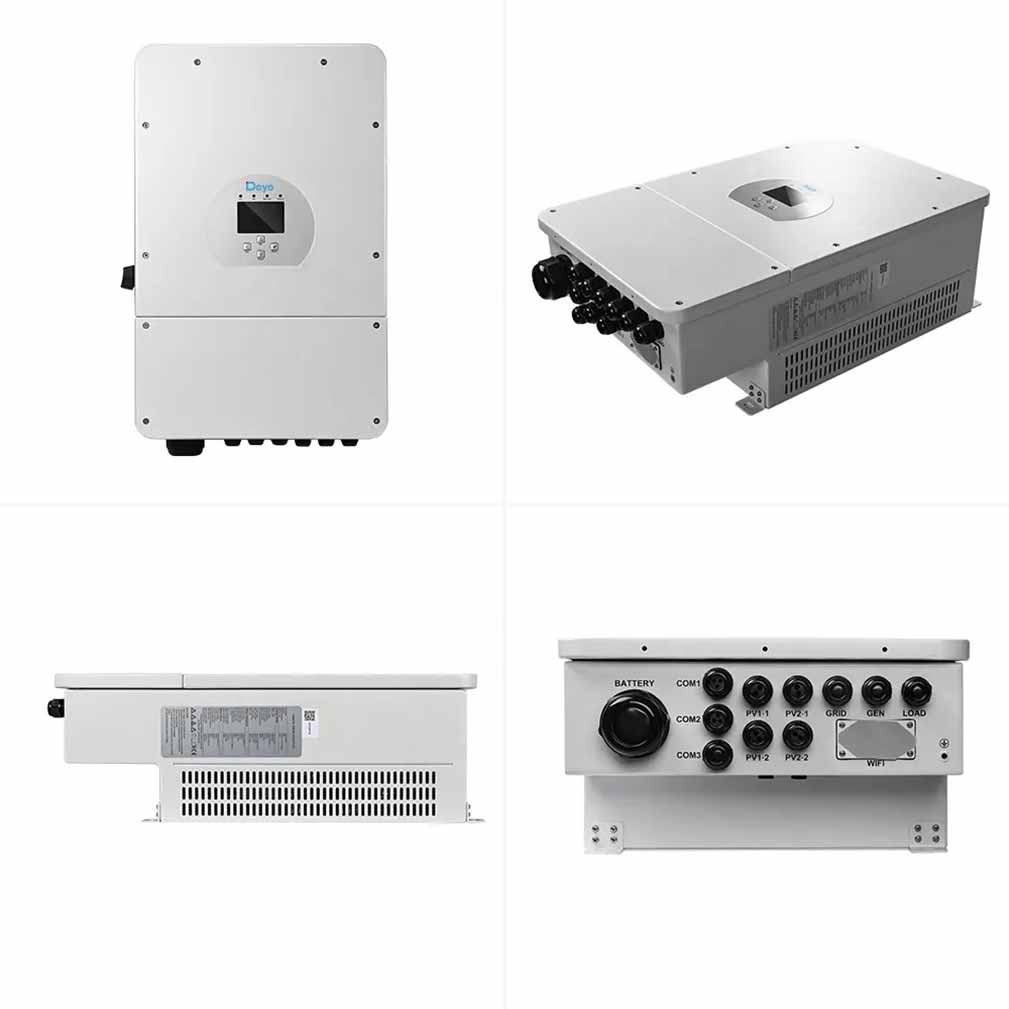

Deye 3.6kw 5kw 6kw Low voltage single-phase energy storage inverter for residential use



Brand deye
Product Origin China
Shipping Port Ningbo, Shanghai, Shenzhen
Lead time  7-15days
Time On Grid
Item No Single Phase
Lead time 10days
Warranty 10Years



Datasheets



Model
SUN-3.6K-SG03LP1-EU
SUN-5K-SG03LP1-EU
SUN-6K-SG03LP1-EU
Battery Input Data
Battery Type
Lead-acid or Li-lon
Battery Voltage Range (V)
40~60
Max. Charging Current (A)
90
120
135
Max. Discharging Current (A)
90
120
135
External Temperature Sensor
Yes
Charging Curve
3 Stages / Equalization
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)
4680
6500
7800
Rated PV Input Voltage (V)
370 (125~500)
Start-up Voltage (V)
125
MPPT Voltage Range (V)
150-425
Full Load DC Voltage Range (V)
300-425
PV Input Current (A)
13+13
Max. PV I (A)
17+17
No.of MPP Trackers
2
No.of Strings per MPP Tracker
1
AC Output Data
Rated AC Output and UPS Power (W)
3600
5000
6000
Max. AC Output Power (W)
3690
5500
6600
AC Output Rated Current (A)
16.4/15.7
22.7/21.7
27.3/26.1
Max. AC Current (A)
18/17.2
25/23.9
30/28.7
Max. Continuous AC Passthrough (A)
35
40
Peak Power (off grid)
2 time of rated power, 10 S
Power Factor
0.8 leading to 0.8 lagging
Output Frequency and Voltage
50/60Hz; L/N/PE 220/230Vac (single phase)
Grid Type
Single Phase
DC injection current (mA)
THD<3% (Linear load<1.5%)
Efficiency
Max. Efficiency
97.60%
Euro Efficiency
96.50%
MPPT Efficiency
99.90%
Protection
Integrated
PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge protection
Output Over Voltage Protection
DC Type II/AC Type III
Certififications and Standards
Grid Regulation
CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98,
VDE 0126-1-1, RD 1699, C10-11
Safety EMC / Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (℃)
-40~60℃, >45℃ derating
Cooling
Natural cooling
Noise (dB)
<30 dB
Communication with BMS
RS485; CAN
Weight (kg)
20.5
Size (mm)
330W x 580H x232D
Protection Degree
IP65
Installation Style
Wall-mounted
Warranty
10 years



Program

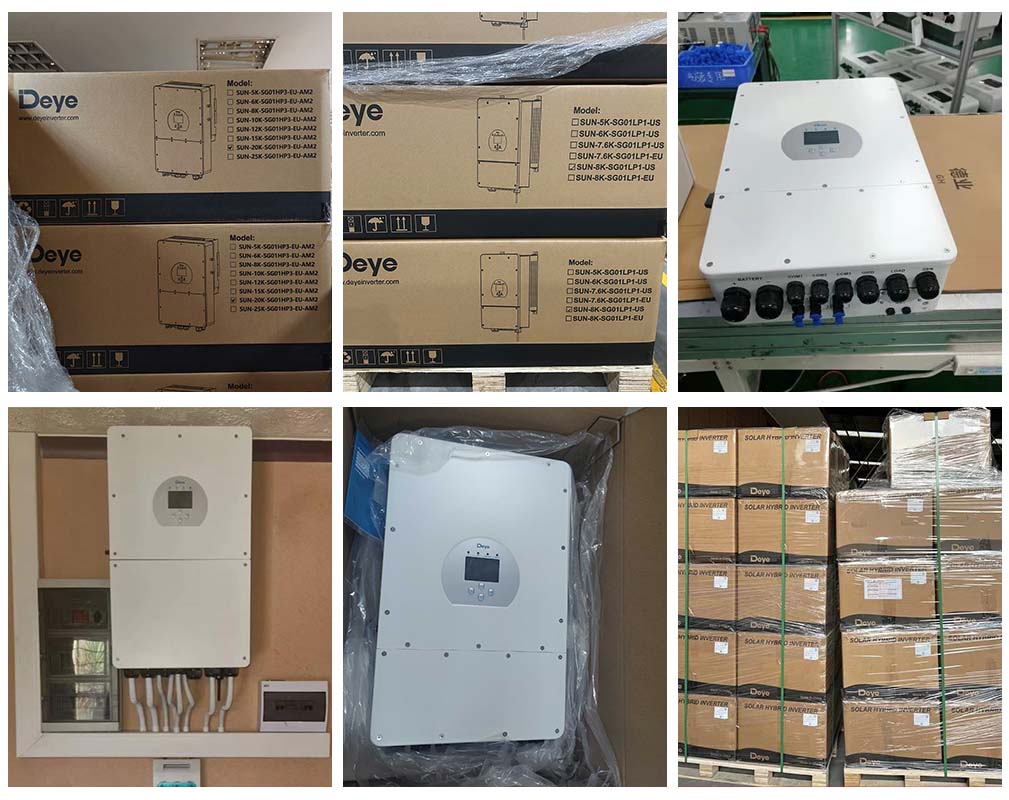

Packing
