Koodsun DEYE 5KW 10KW 12KW 3 phase hybrid solar inverter for home or residential -Koodsun

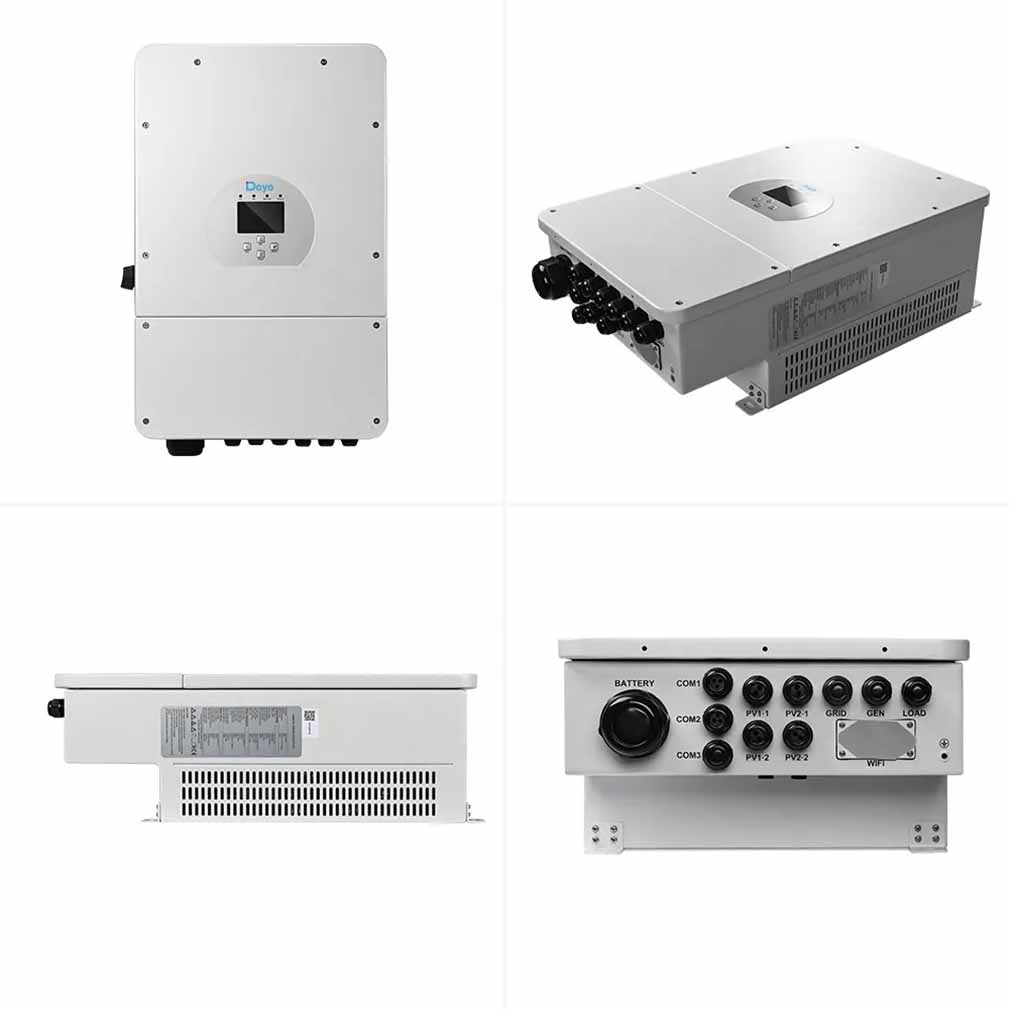

Koodsun DEYE 5KW 10KW 12KW 3 phase hybrid solar inverter for home or residential



Brand DEYE
Product Origin China
Shipping Port Ningbo, Shanghai, Shenzhen
Lead time 7-15days
Time Hybrid
Output voltage 110V-240V
Item No 3 Phase
Lead time 10days
Warranty 10Years



Datasheet



Model
SUN-5K-SG04LP3-EU
SUN-6K-SG04LP3-EU
SUN-8K-SG04LP3-EU
SUN-10K-SG04LP3-EU
SUN-12K-SG04LP3-EU
Battery Type
Lead-acid or Li-lon
Battery Voltage Range (V)
40~60
Max. Charging Current (A)
120
150
190
210
240
Max. Discharging Current (A)
120
150
190
210
240
External Temperature Sensor
Yes
Charging Curve
3 Stages / Equalization
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
PV String Input Data





Max. DC Input Power (W)
6500
7800
10400
13000
15600
Rated PV Input Voltage (V)
550 (160~800)
Start-up Voltage (V)
160
MPPT Voltage Range (V)
200-650
Full Load DC Voltage Range (V)
350-650
PV Input Current (A)
13+13
26+13
Max. PV ISC (A)
17+17
34+17
Number of MPPT / Strings per MPPT
2/1+1
2/2+1
AC Output Data





Rated AC Output and UPS Power (W)
5000
6000
8000
10000
12000
Max. AC Output Power (W)
5500
6600
8800
11000
13200
AC Output Rated Current (A)
7.6
9.1
12.1
15.2
18.2
Max. AC Current (A)
11.4
13.6
18.2
22.7
27.3
Max. Continuous AC Passthrough
45A
Peak Power (off grid)
2 time of rated power, 10 S
Power Factor
0.8 leading to 0.8 lagging
Output Frequency and Voltage
50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Type
Three Phase
DC injection current (mA)
THD<3% (Linear load<1.5%)
Efficiency





Max. Efficiency
97.60%
Euro Efficiency
97.60%
MPPT Efficiency
97.60%
Protection





Integrated
PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor
Detection, Residual Current Monitoring Unit, Output Over Current Protection,Surge protection
Certifications and Standards





Grid Regulation
CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98,VDE 0126-1-1, RD 1699, C10-11
Safety EMC / Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data





Operating Temperature Range
-45~60℃, >45℃ derating
Cooling
Smrat cooling
Noise (dB)
<45 dB
Communication with BMS
RS485; CAN
Weight (kg)
33.6
Size (mm)
422W x 699.3H x279D
Protection Degree
IP65
Installation Style
Wall-mounted
Warranty
10 years

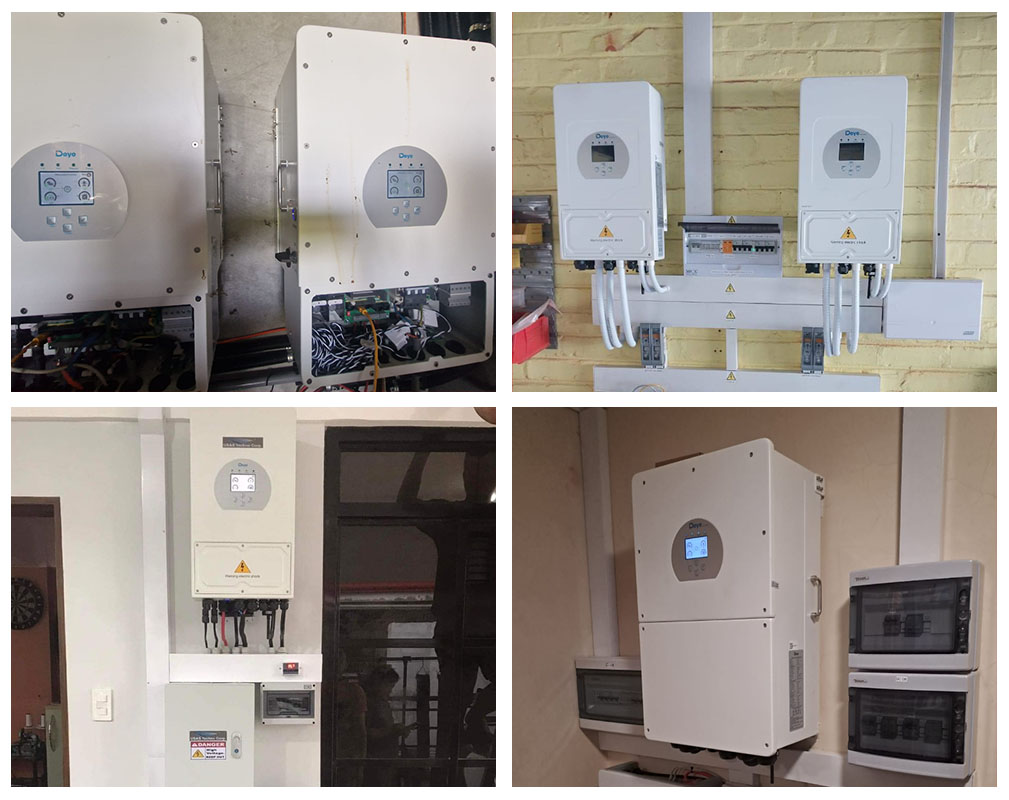

Project

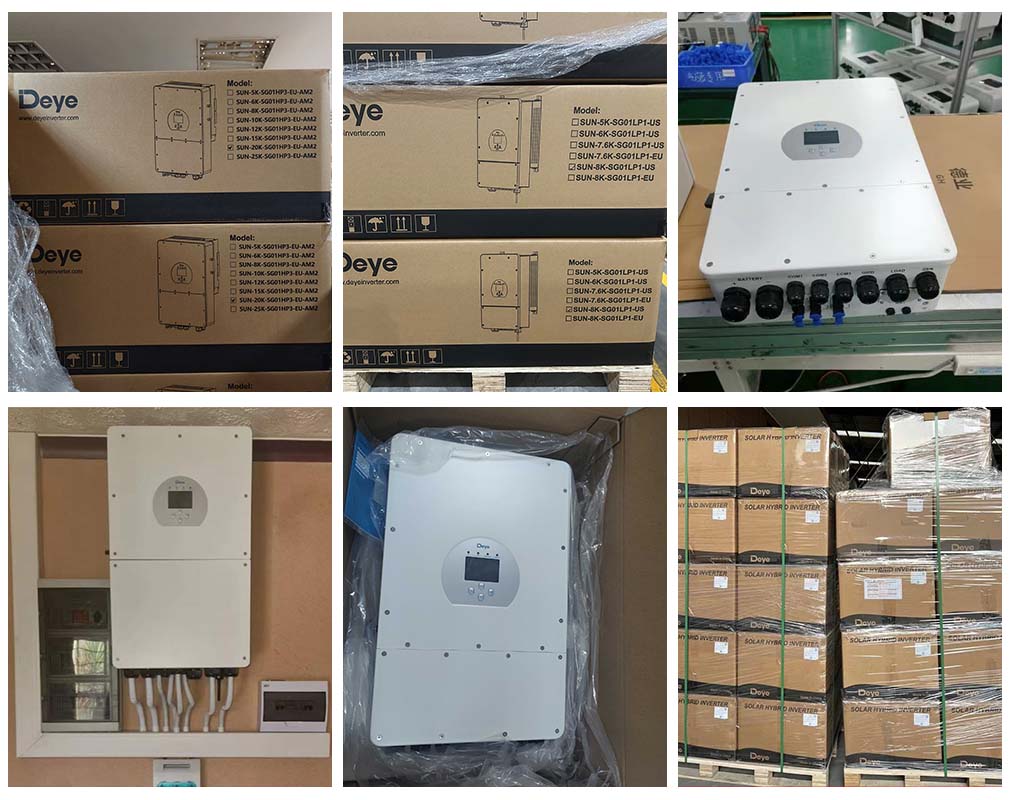

 Packing
