Home /SOLAR INVERTER /Deye Solar Inverter Deye SUN-20K-G05 3 Phase String Inverter 20kw Deye Hybrid Inverter

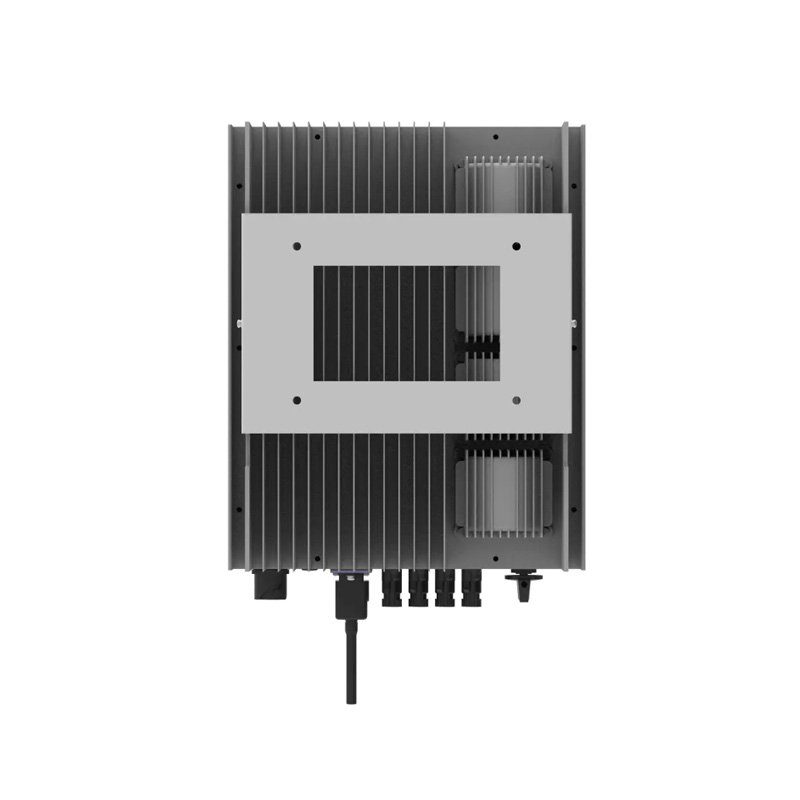

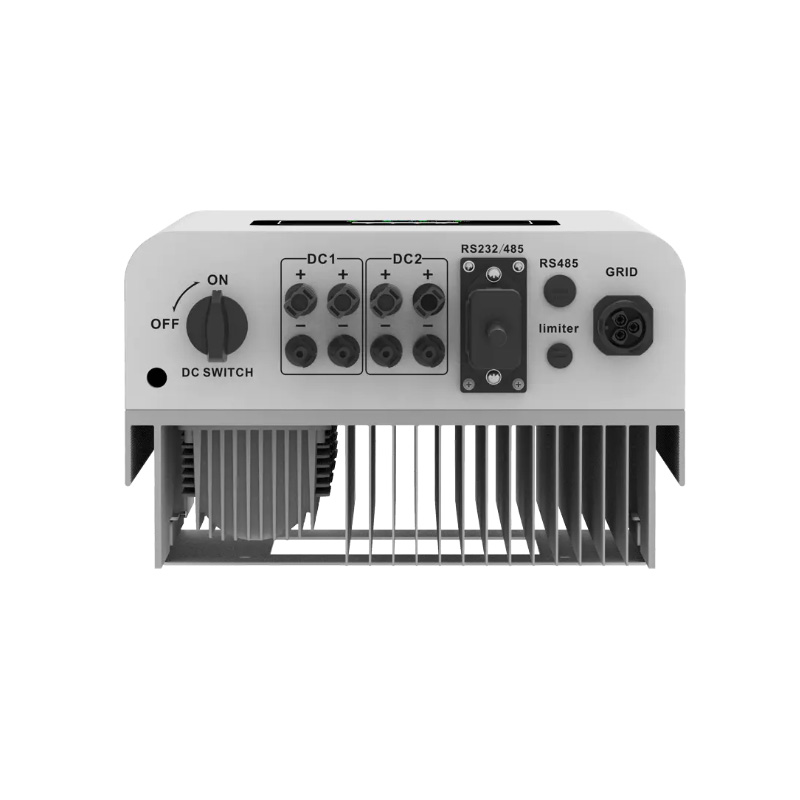

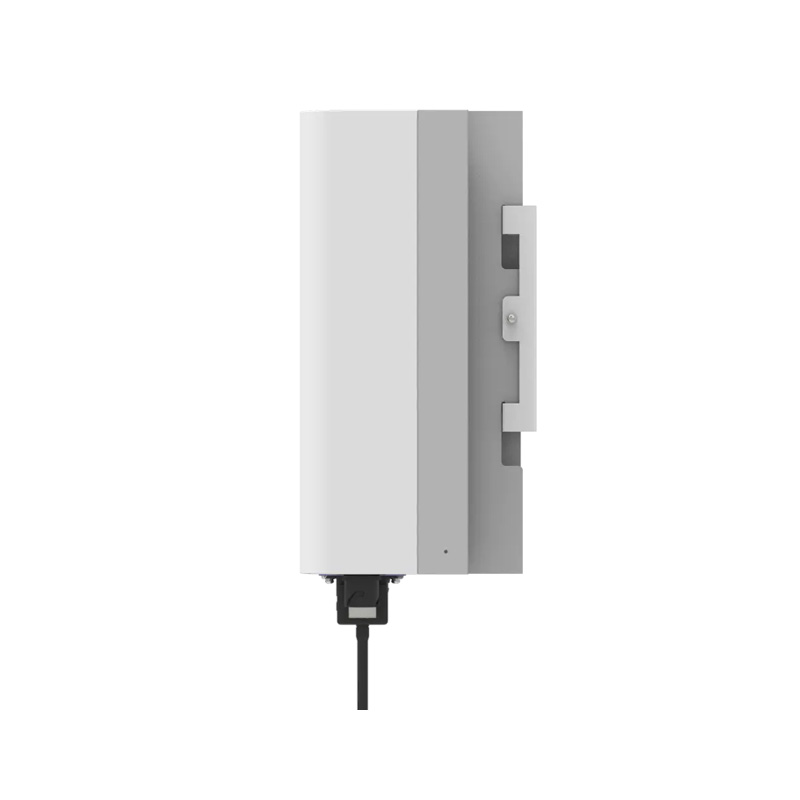

Deye Solar Inverter Deye SUN-20K-G05 3 Phase String Inverter 20kw Deye Hybrid Inverter -Koodsun
Deye Solar Inverter Deye SUN-20K-G05 3 Phase String Inverter 20kw Deye Hybrid Inverter -Koodsun
Deye Solar Inverter Deye SUN-20K-G05 3 Phase String Inverter 20kw Deye Hybrid Inverter -Koodsun
Deye Solar Inverter Deye SUN-20K-G05 3 Phase String Inverter 20kw Deye Hybrid Inverter -Koodsun

Deye Solar Inverter Deye SUN-20K-G05 3 Phase String Inverter 20kw Deye Hybrid Inverter



Place of Origin
China



Brand Name
Deye



Model Number
5kw 10kw 12kw



Input Voltage
125~500V



Output Voltage
220V/380V



Output Current
22.7A



Output Frequency
50/60HZ



Size
330*580*232



Certificate
CE ROHS IEC



Warranty
10Years



Weight
20.5kg
Inquire Now

Datasheet



Model
SUN-3.6K-SG03LP1-EU
SUN-5K-SG03LP1-EU
SUN-6K-SG03LP1-EU
Battery Input Data
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range(V)
40~60
Max.Charging Current(A)
90
120
135
Max.Discharging Current(A)
90
120
135
External Temperature Sensor
Yes
Charging Curve
3 Stages/Equalization
Charging Strategy for Li-lon Battery
Self-adaption to BMS
PV String Input Data
Max.DC Input Power(W)
4680
6500
7800
Rated PV Input Voltage(V)
370(125~500)
Start-up Voltage(V)
125
MPPT Voltage Range(V)
150-425
Full Load DC Voltage Range(V)
300-425
PV Input Current(A)
13+13
Max.PV lsc(A)
17+17
No.of MPP Trackers
2
No.of Strings per MPP Tracker
1
AC Output Data
Rated AC Output and UPS Power(W)
3600
5000
6000
Max.AC Output Power(W)
3960
5500
6600
AC Output Rated Current(A)
16.4/15.7
22.7/21.7
27.3/26.1
Max.AC Current(A)
18/17.2
25/23.9
30/28.7
Max.Continuous AC Passthrough(A)
35
40
Peak Power(off grid)
2 time of rated power,10s
Power Factor
0.8 leading to 0.8 lagging
Output Frequency and Voltage
50/60Hz, L/N/PE 220/230Vac(single phase)
Grid Type
Single Phase
Total Harmonic Distortion(THD)
<3%(of nominal power)
DC current injection
<0.5% In
Efficiency
Max.Efficiency
97.60%
Euro.Efficiency
96.50%
MPPT.Efficiency
99.90%

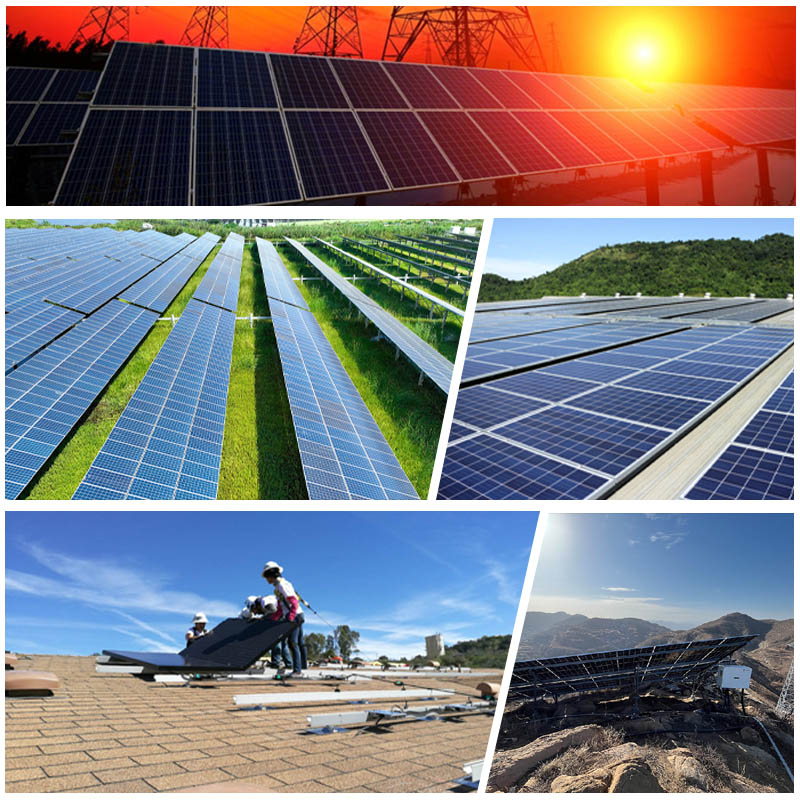

Project
