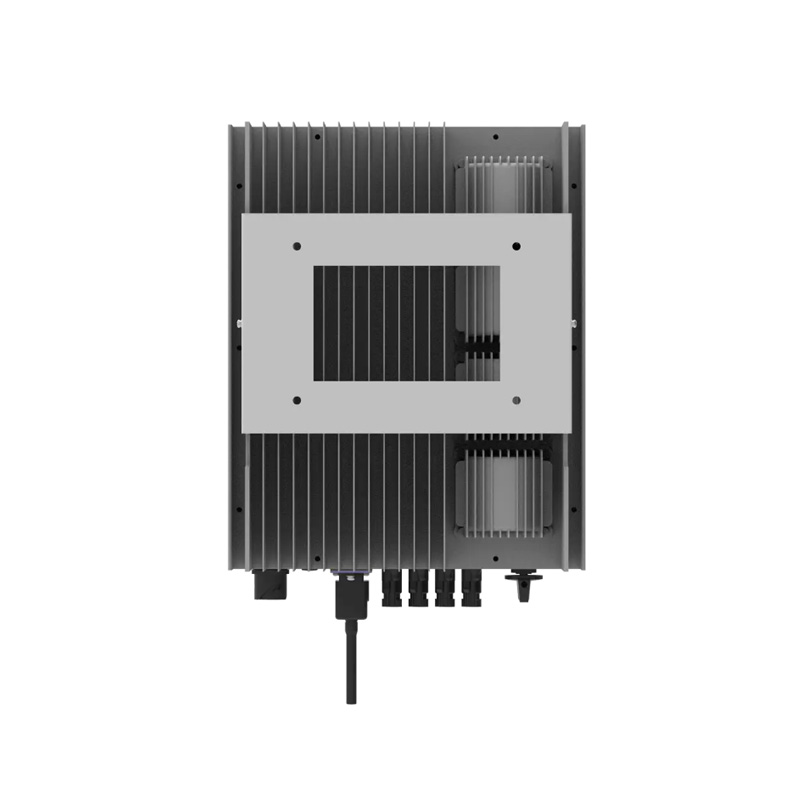

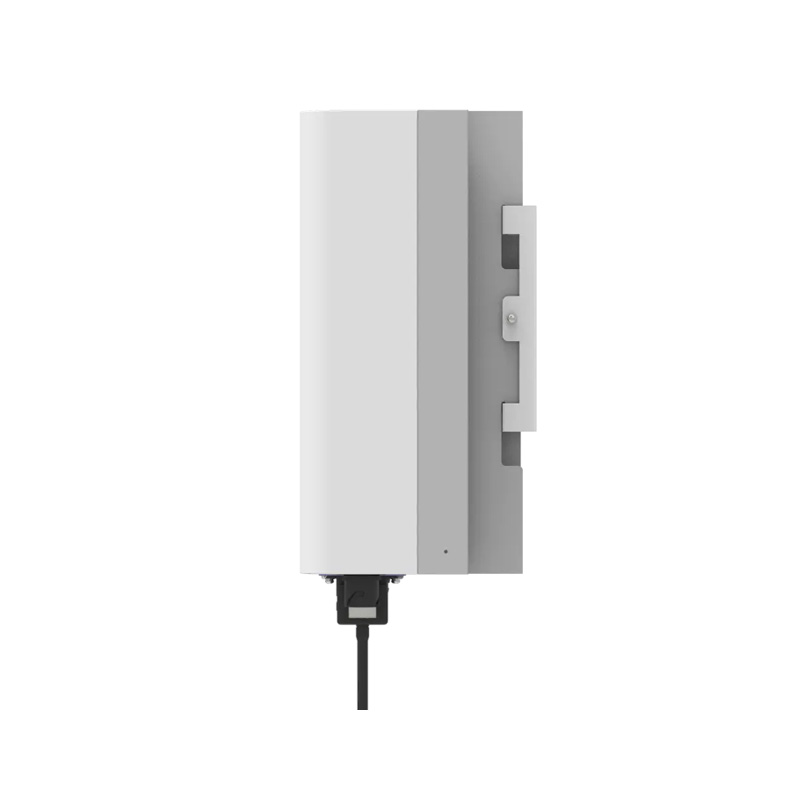

Deye on grid solar inverter 10kw single phase SUN-9K-G String solar on grid tie inverter



Place of Origin
Zhejiang, China



Brand Name
Deye



Model Number
SUN-9K-G



Input Voltage
550V



Output Voltage
L/N/PE 220V/0.85Un-1.1Un, 230V/0.85Un-1.1Un



Output Current
30.4~45.7A



Output Frequency
50Hz / 60Hz



Size
330Wx410Hx198.5D (mm)



Certificate
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2



Warranty
5 Years



Weight
15.7 kg

Datasheet



Model
SUN-7K-G
SUN-7.5K-G
SUN-8K-G
SUN-9K-G
SUN-10K-G
SUN-10.5K-G
Input Side

Max. DC Input Power (kW)
9.1
9.8
10.4
11.7
13
13.7
Max. DC Input Voltage (V)
550
Start-up DC Input Voltage (V)
80
MPPT Operating Range (V)
70~500
Max. DC Input Current (A)
13+26
26+26
Max. Short Circuit Current (A)
19.5+39
39+39
No.of MPP Trackers
2
No.of Strings per MPP Tracker
1+2
2
Output Side

Rated Output Power (kW)
7
7.5
8
9
10
10.5
Max. Active Power (kW)
7.7
8.25
8.8
9.9
11
11.55
Nominal Output Voltage / Range (V)
L/N/PE 220V/0.85Un-1.1Un, 230V/0.85Un-1.1Un (Optional)
Rated Grid Frequency (Hz)
50 / 60 (Optional)
Operating Phase
Single phase
Rated AC Grid Output Current (A)
30.4
32.6
34.8
39.1
43.5
45.7
Max. AC Output Current (A)
33.5
35.9
38.3
43
47.8
50.2
Output Power Factor
0.8 leading to 0.8 lagging
Grid Current THD
<3%
DC Injection Current (mA)
<0.5%
Grid Frequency Range
47~52 or 57~62 (Optional)
Efficiency

Max. Efficiency
97.7%
Euro Efficiency
97.5%
MPPT Efficiency
>99%
Protection

DC Reverse-Polarity Protection
Yes
AC Short Circuit Protection
Yes
AC Output Overcurrent Protection
Yes
Output Overvoltage Protection
Yes
Insulation Resistance Protection
Yes
Ground Fault Monitoring
Yes
Anti-islanding Protection
Yes
Temperature Protection
Yes
Integrated DC Switch
Yes
Remote software upload
Yes
Remote change of operating parameters
Yes
Surge protection
DC Type II / AC Type II
General Data

Size (mm)
330W×410H×198.5D
Weight (kg)
15.7
Topology
Transformerless
Internal Consumption
<1W (Night)
Running Temperature
-25~65℃, >45℃ derating
Ingress Protection
IP65
Noise Emission (Typical)
<35 dB
Cooling Concept
Natural cooling
Max. Operating Altitude Without Derating
2000m
Warranty
5 years
Grid Connection Standard
CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
Operating Surroundings Humidity
0-100%
Safety EMC / Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

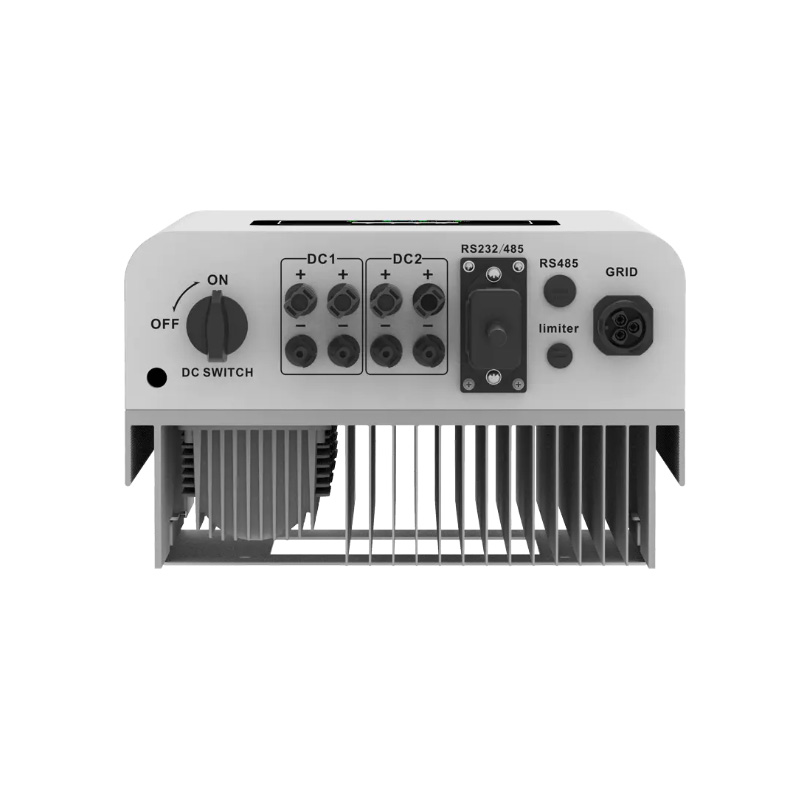

Features

DC Connection
MC-4 mateable
AC Connection
IP65 rated plug
Display
LCD1602
Interface
RS485/RS232/Wifi/LAN

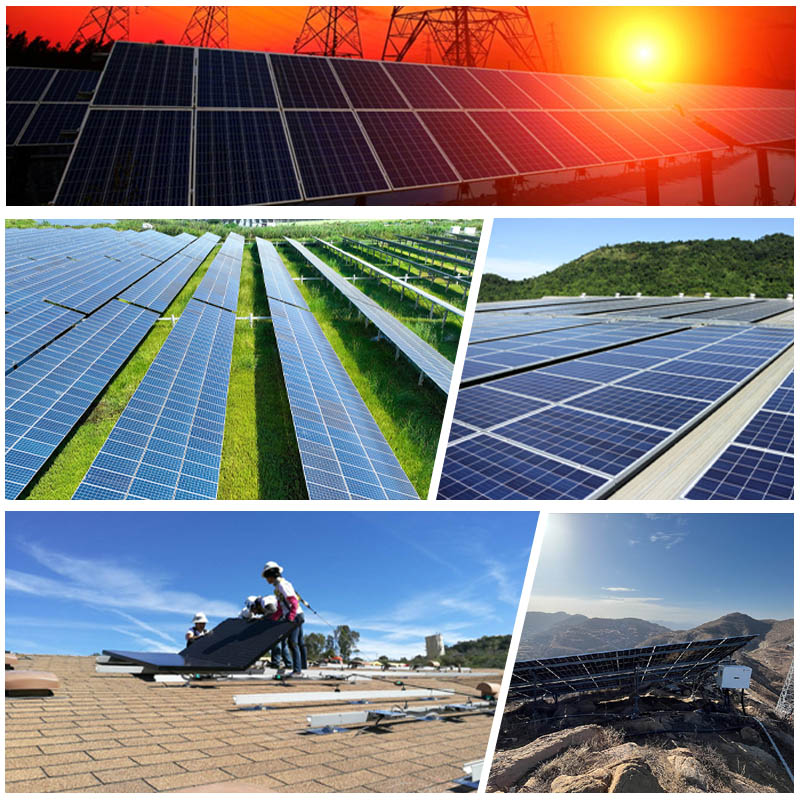

Project
