Deye SUN-7K-G Single Phase On Grid String Inverter 7.5kw Solar Inverter -Koodsun

Deye SUN-7K-G Single Phase On Grid String Inverter 7.5kw Solar Inverter

Deye SUN-7K-G Single Phase 7.5KW On Grid String Inverter 7.5kw Solar Inverter with 2 MPPTs

Place of Origin
Anhui, China



Brand Name
Deye



Model Number
SUN-7.5K-G



Input Voltage
550V



Output Voltage
220v



Output Current
35/33.5



Output Frequency
50Hz/60Hz



Size
330*410*198.5mm



Certificate
CE /IEC/TUV/NRS



Warranty
5 Years



Weight
15.3KG



Application
Solar System



Inverter type
Single Phase On Grid Solar Inverter

Datasheet



Model
SUN-7.5K-G
Input Side

Max.DCInput Power(kW)
9.8
Max.DC Input Voltage (V)
550
Start-up DC Input Voltage(V)
80
MPPT Operating Range(V)
70-500
Max.DC Input Current(A)
13+26
Max. Short Circuit Current(A)
19.5+39
No.of MPP Trackers
2
No.of Strings per MPPT Tracker
1+2
Output Side

Rated Output Power(kW)
7.5
Max.Active Power(kW)
8.25
Nominal Output Voltage/Range(V)
L/N/PE 220/230V (Optional)
Rated Grid Frequency(Hz)
50 / 60 (Optional)
Operating Phase
Single Phase
Rated AC Grid Output Current(A)
34.1/32.6
Max.AC Output Current(A)
37.5/35.9
Output Power Factor
0.8 leading to 0.8 lagging
Grid Current THD
<3%
DC Injection Current(mA)
<0.5%
Grid Frequency Range
45~55 or 55~65 (Optional)
Efficiency

Max.Efficiency
97.7%
Euro Efficiency
97.5%
MPPT Efficiency
>99%
Protection

DC Reverse-Polarity Protection
Yes
ACShort Circuit Protection
Yes
ACOutput Overcurrent Protection
Yes
Output Overvoltage Protection
Yes
Insulation Resistance Protection
Yes
Ground Fault Monitoring
Yes
Anti-islanding Protection
Yes
Temperature Protection
Yes
Integrated DCSwitch
Yes
Remote Software Upload
Yes
Remote Change of Operating Parameters
Yes
Surge Protection
DC Type II / AC Type II
General Data

Cabinet Size(WxHxDmm)
330×410×198.5 (Excluding Connectors and Brackets)
Weight(kg)
15.3
Topology
Transformerless
Intermal Consumption
<1W (Night)
Running Temperature
-25-65℃, >45℃ Derating
Ingress Protection
IP65
Noise Emission (Typical)
≤35 dB
Cooling Concept
Free Cooling
Permissible Altitude(m)
2000
Warranty
5 Years
Grid Connection Standard
IEC 62116, AS 4777.2
Operating Surroundings Humidity 0-100%
0-100%
Safety EMC/Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Features

DC Connection
MC-4 Mateable
AC Connection
IP65 Rated Plug
Display
LCD1602
Interface
RS485/RS232/Wifi/LAN

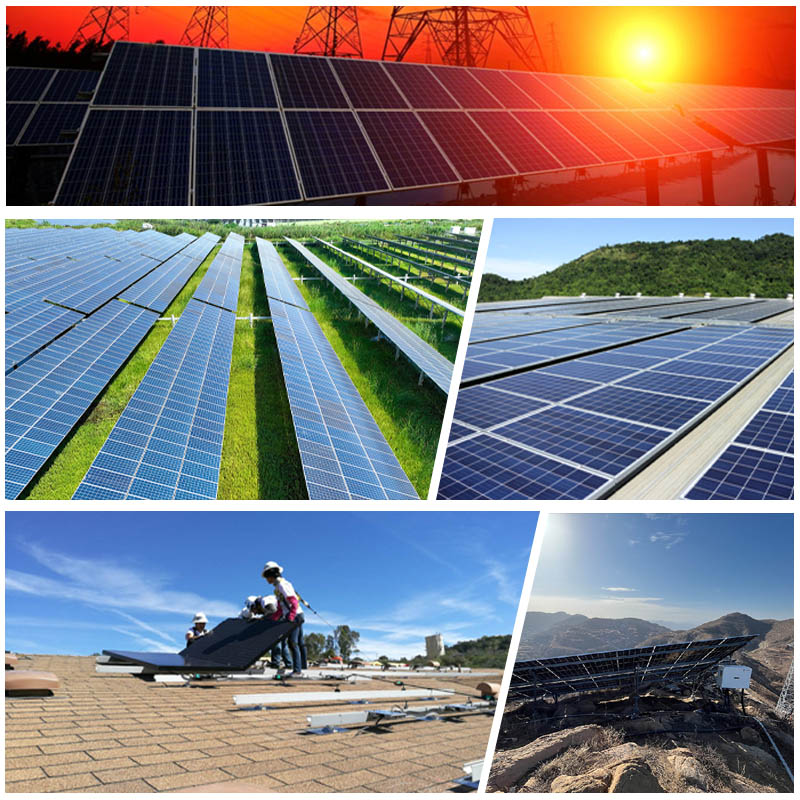

Project
