Hybrid Inverter
Home /Hybrid Inverter /DEYE SUN-3/3.6/5/6K-SG04LP1 3-6kW Single Phase 2 MPPT Hybrid Inverter Low Voltage Battery

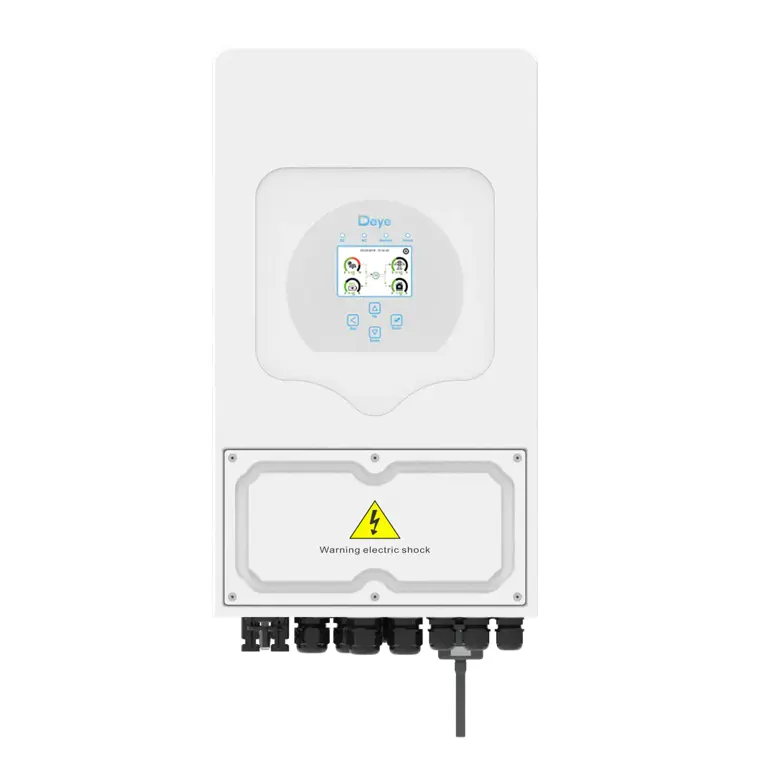

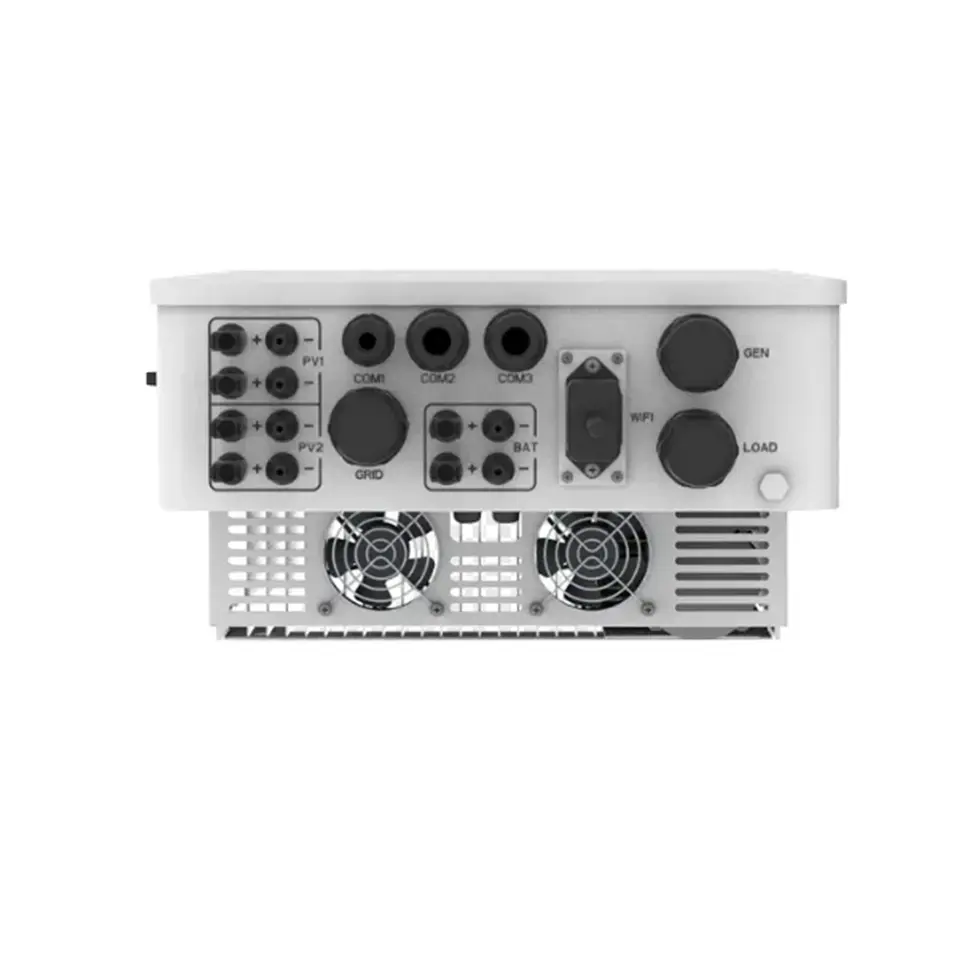

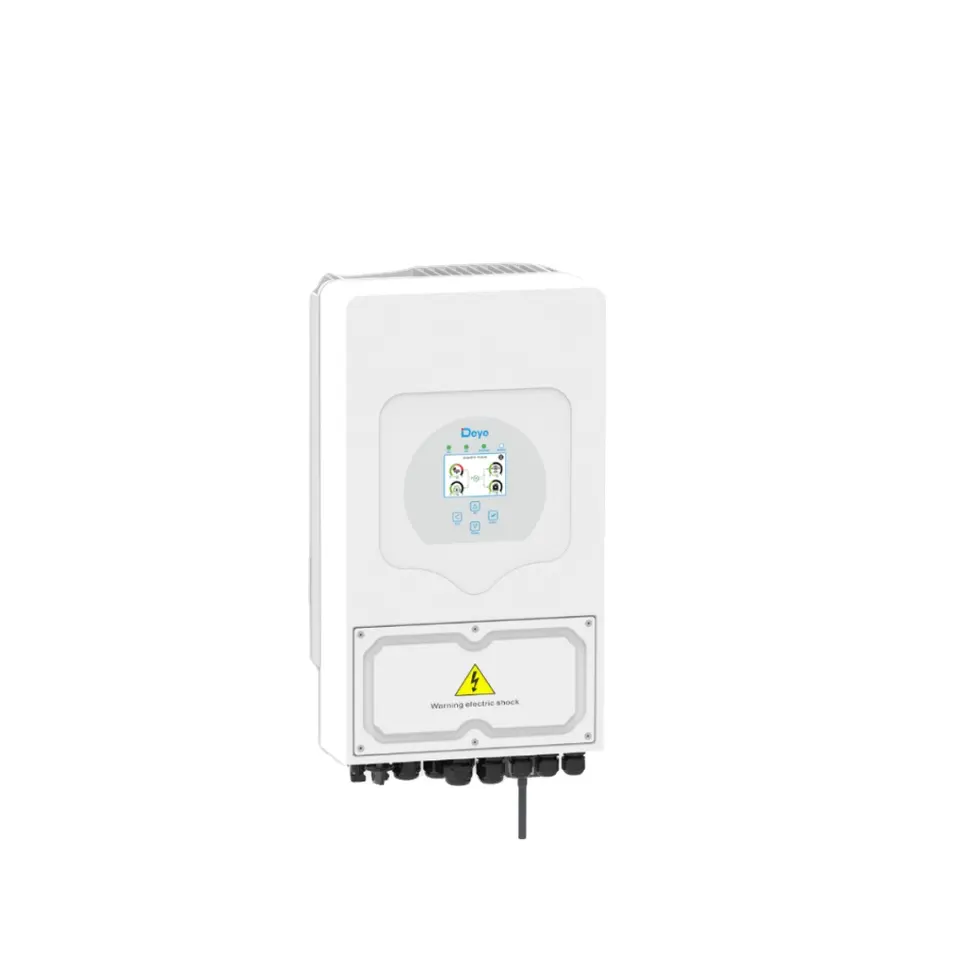

DEYE SUN-3/3.6/5/6K-SG04LP1  3-6kW  Single Phase  2 MPPT Hybrid Inverter Low Voltage Battery -Koodsun
deye inverter
single phase deye inverter
deye hybrid inverter

DEYE SUN-3/3.6/5/6K-SG04LP1 3-6kW Single Phase 2 MPPT Hybrid Inverter Low Voltage Battery

Place of Origin
   China
Brand Name
Deye
Model Number
DEYE SUN-3/3.6/5/6K-SG04LP1-EU
Rated Power
 3-6kw

Product Description



SUN-3/3.6/5/6K-SG04LP1 | 3-6kW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery

Higher yields / Safe & Reliable / Smart / User-friendly

SUN 3/6K-SG04LP1,hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence.   During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3/6K-SG04. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid black out. It equipped with RS485/CAN port for battery communication. The New SUN-3K-SG04LP1 hybrid inverter adopts 24V battery, greatly improving your system safety.

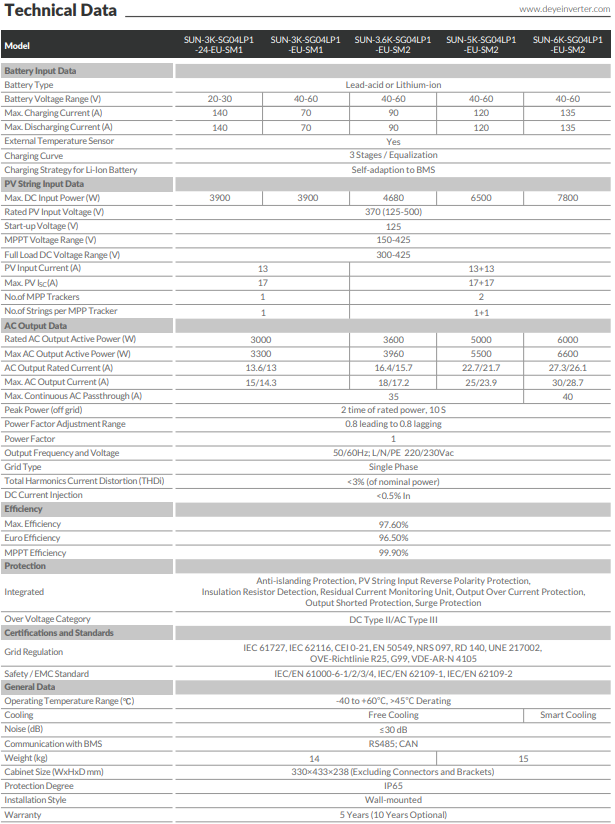

Technical Specifications





Packing

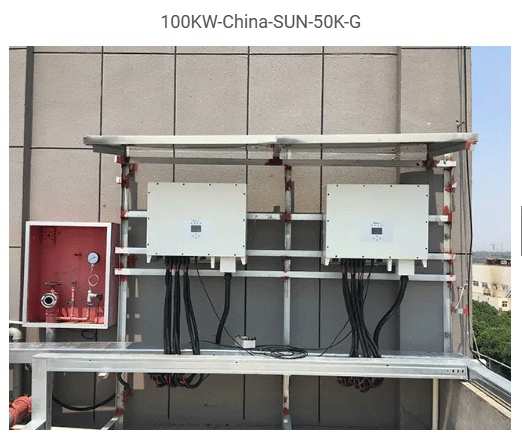

Projects

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
