DEYE SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 5-25kW Three Phase 2 MPPT Hybrid Inverter High Voltage Battery Supported

Place of Origin China
Brand Name DEYE
Model Number SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2

Products Description



SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 | 5-25kW | Three Phase | 2 MPPT | Hybrid Inverter | HV Battery Supported

Higher yields / Safe & Reliable / Smart / User-friendly

SUN 5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 is a brand-new series of three phase hybrid inverter supporting 160-700V HV Battery, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.







Technical Specifications



Model

SUN-5K-SG01HP3-EU-AM2

SUN-6K-SG01HP3-EU-AM2

SUN-8K-SG01HP3-EU-AM2

SUN-10K-SG01HP3-EU-AM2

SUN-12K-SG01HP3-EU-AM2 SUN-15K-SG01HP3-EU-AM2 SUN-20K-SG01HP3-EU-AM2
SUN-25K-SG01HP3-EU-AM2

Battery Input Data

Battery Type

Lithium-ion

Battery Voltage Range (V)

160~700

Max. Charging Current (A)

30 37

50

Max. Discharging Current (A)

30

37

50

Number of Battery Input

1

Charging Strategy for Li-Ion Battery

Self-adaption to BMS

PV String Input Data

Max. DC Input Power (W)

6500

7800

10400

13000

15600 19500

26000

32500

Max. DC Input Voltage (V)

1000

Start-up Voltage (V)

180

 MPPT Range (V)

150-850

Full Load DC Voltage Range (V)

195-850

195-850

260-850

325-850
340-850
420-850
500-850
625-850

Rated DC Input Voltage (V)

600

PV Input Current (A)

20+20

26+20

26+26

Max. PV ISC (A)

30+30

39+30

39+39



No.of MPP Trackers

2

No.of Strings per MPP Tracker

1+1

2+1

2+2

AC Output Data



Rated AC Output and UPS Power (W)

5000

6000

8000

10000

12000 15000 20000 25000

Max. AC Output Power (W)

5500

6600

8800

11000

13200 16500 22000
27500
AC Output Rated Current (A)

7.6/7.3

9.1/8.7

12.2/11.6

15.2/14.5

18.2/17.4 22.8/21.8 30.4/29
37.9/36.3
Max. AC Output Current (A)

8.4/8

10/9.6

13.4/12.8

16.7/16

20/19.2 25/24 33.4/31.9
41.7/39.9
Max. Three-phase Unbalanced Output Current(A)

13

13

18

22

25 30 35
41.7
Generator input/Smart load
/AC couple current (A)

7.6/40/7.6

9.1/40/9.1

12.2/40/12.2

15.2/40/15.2

18.2/80/18.2 22.8/80/22.8 30.4/80/30.4
37.9/80/37.9
Max. Continuous AC Passthrough (A)

40

80
Peak Power (off grid)
1.5 time of rated power, 10 S
Output Frequency and Voltage

50/60Hz;3L/N/PE 220/380Vac,230/400Vac

Power Factor
0.8 leading to 0.8 lagging
Grid Type
Three Phase
Total Harmonics Current Distortion (THDi)
<3% (of nominal power)
DC current injection
<0.5% In

Efficiency

Max. Efficiency

97.60%

Euro Efficiency

97.00%

MPPT Efficiency

99.90%

Protection

Integrated
Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge Protection, Arc Fault Circuit Interruption (AFCI optional)

Output Over Voltage Protection

DC Type II / AC Type Ⅲ

Certifications and Standards

Grid Regulation

IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105

Safety EMC / Standard

IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2



General Data

Operating Temperature Range (℃)

-40 to +60, >45℃ Derating

Cooling

Free Cooling

Smart cooling

Noise (dB)

≤55 dB

Communication with BMS

 CAN

Weight (kg)

30.5

Cabinet Size (WxHxD mm)
408×638×237 (Excluding Connectors and Brackets)

Protection Degree

IP65

Installation Style

Wall-mounted

Warranty

5 Years (10 Years Optional)

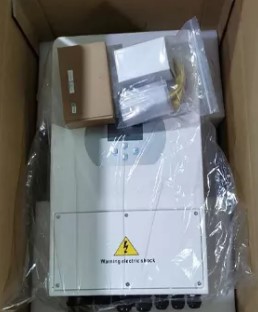

Packing

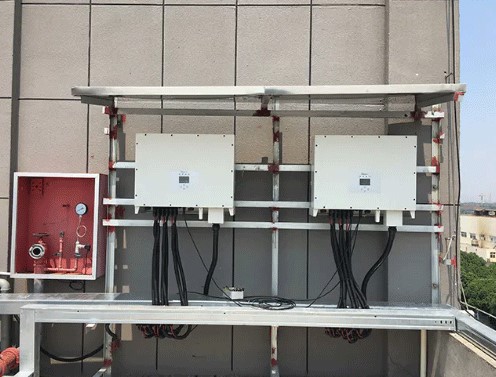

Projects
