Home /SOLAR INVERTER /Deye Three Phase Solar Inverter Solar Energy System DC/AC Inverter 75-82.5kW 250-1000V Best Price

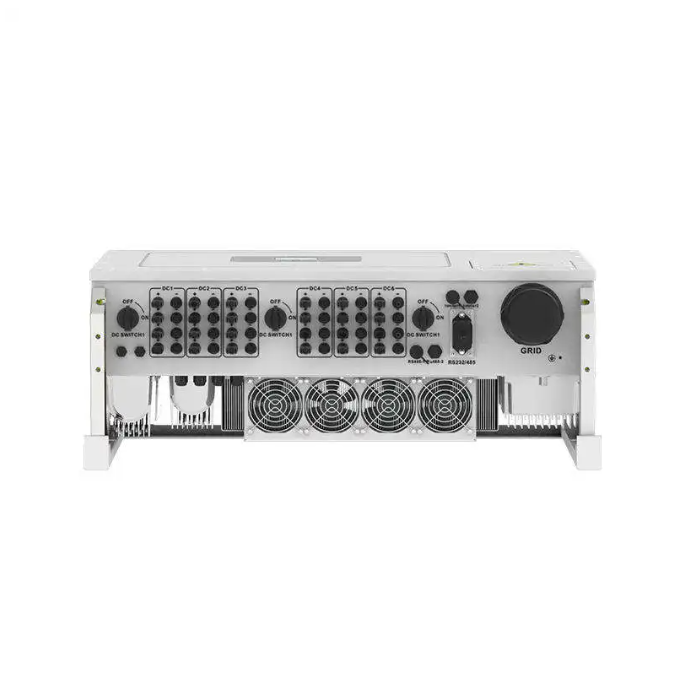

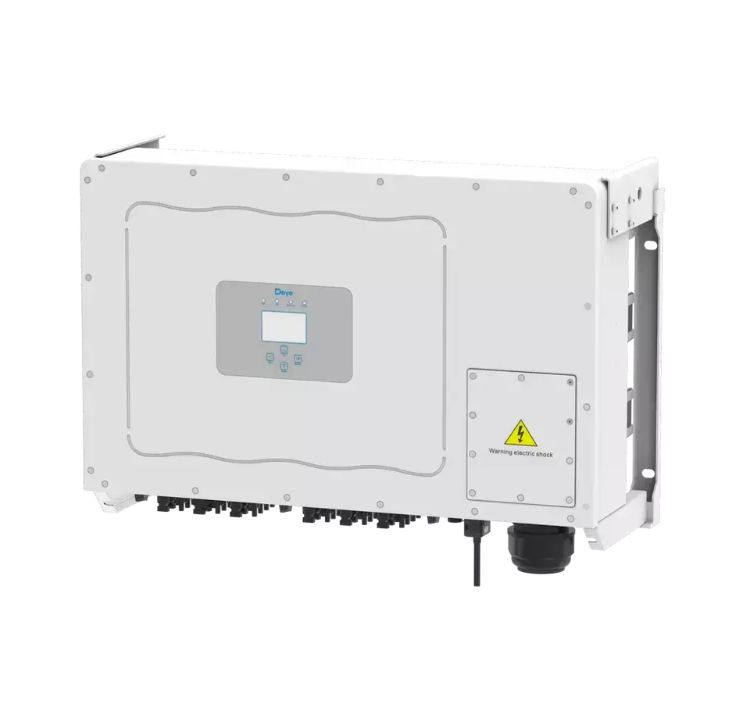

Deye Three Phase Solar Inverter Solar Energy System DC/AC Inverter 75-82.5kW 250-1000V Best Price -Koodsun
Deye Three Phase Solar Inverter Solar Energy System DC/AC Inverter 75-82.5kW 250-1000V Best Price -Koodsun
Deye Three Phase Solar Inverter Solar Energy System DC/AC Inverter 75-82.5kW 250-1000V Best Price -Koodsun

Deye Three Phase Solar Inverter Solar Energy System DC/AC Inverter 75-82.5kW 250-1000V Best Price



Place of Origin
Anhui, China



Brand Name
Deye



Model Number
SUN-75K-G03



Input Voltage
250-1000V



Output Voltage
220 / 380, 230 / 400V



Output Current
108.7A



Output Frequency
50/60Hz



Size
838Wx568Hx323D



Certificate
CE, VDE0126



Warranty
5 Years



Weight
73.7kg
Inquire Now
Model
SUN-70K-G03
SUN-75K-G03
SUN-80K-G03
SUN-90K-G03
SUN-100K-G03
SUN-110K-G03

Max. DC Input Power (kW)
91
97.5
104
135
150
150

Max. DC Input Voltage (V)
1000

Start-up DC Input Voltage (V)


250

MPPT Operating Range (V)


200~850

Max. DC Input Current (A)
'
40+40+40+40


40+40+40+40+40+40

Max. Short Circuit Current (A)


60+60+60+60


60+60+60+60+60+60

No.of MPP Trackers
4
6

No.of Strings per MPP Tracker


4

Output Side


Rated Output Power (kW)
70
75
80
90
100
110

Max. Active Power (kW)
77
82.5
88
99
110
121

Nominal Output Voltage / Range (V)


3L/N/PE 220/380V, 230/400V

Rated Grid Frequency (Hz)


50 / 60 (Optional)

Operating Phase
Three phase

Rated AC Grid Output Current (A)
106.1/101.5
113.6/108.7
121.2/115.9
136.4/130.4
151.5/144.9
166.7/159.4

Max. AC Output Current (A)
116.7/111.6
125/119.6
133.3/127.5
150/143.5
166.7/159.4
183.3/175.4

Output Power Factor


0.8 leading to 0.8 lagging

Grid Current THD
<3%

DC Injection Current (mA)


<0.5%

Grid Frequency Range


47~52 or 57~62 (Optional)

Efficiency


Max. Efficiency
98.8%

Euro Efficiency
98.3%

MPPT Efficiency
>99%

Protection


DC Reverse-Polarity Protection
Yes

AC Short Circuit Protection
Yes

AC Output Overcurrent Protection


Yes

Output Overvoltage Protection


Yes

Insulation Resistance Protection
Yes

Ground Fault Monitoring
Yes

Anti-islanding Protection
Yes

Temperature Protection
Yes

Integrated DC Switch
Yes

Remote software upload
Yes

Remote change of operating parameters
Yes

Surge protection
DC Type II / AC Type II

General Data


Size (mm)


838W×568H×324D
838W×568H×346D

Weight (kg)
81

Topology
Transformerless

Internal Consumption


<1W (Night)

Running Temperature


-25~65℃, >45℃ derating

Ingress Protection
IP65

Noise Emission (Typical)


<55 dB

Cooling Concept
Smart cooling

Max. Operating Altitude Without Derating


2000m

Warranty
5 years

Grid Connection Standard
CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11

Operating Surroundings Humidity


0-100%

Safety EMC / Standard


IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

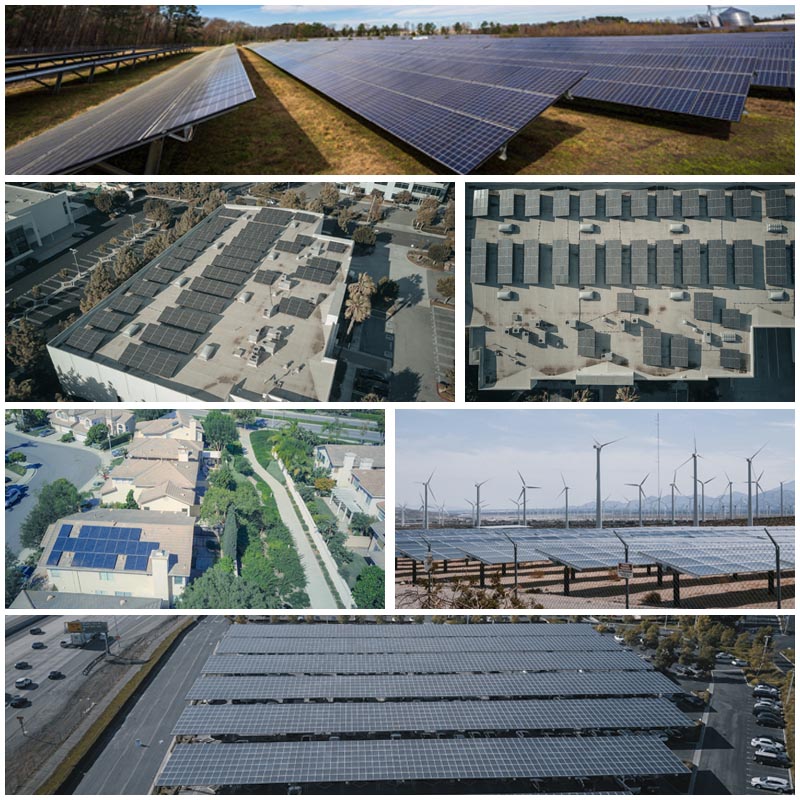

Project
