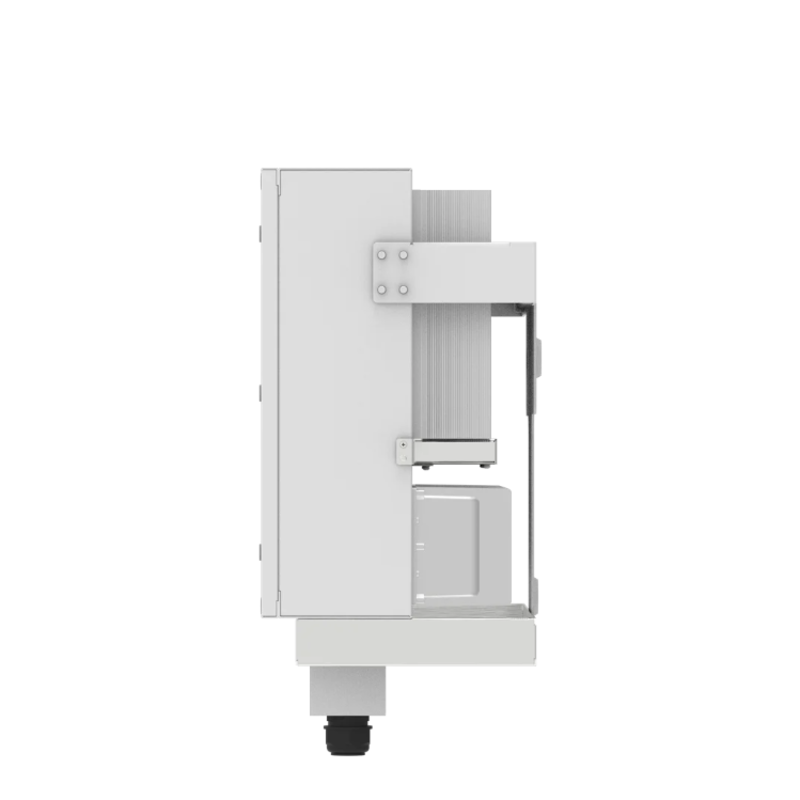

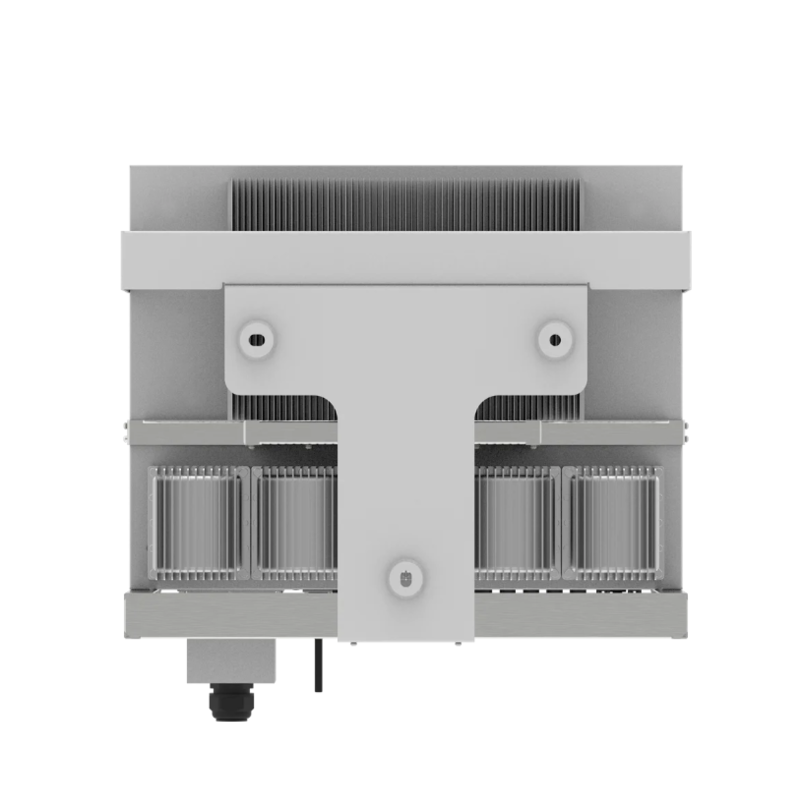

Kooodsun Deye SUN-60K-G SUN-70K-G SUN-75K-G SUN-80K-G on Grid three phase string Inverter Solar Energy Solar Invertererter -Koodsun
Kooodsun Deye SUN-60K-G SUN-70K-G SUN-75K-G SUN-80K-G on Grid three phase string Inverter Solar Energy Solar Invertererter -Koodsun
Kooodsun Deye SUN-60K-G SUN-70K-G SUN-75K-G SUN-80K-G on Grid three phase string Inverter Solar Energy Solar Invertererter -Koodsun

Kooodsun Deye SUN-60K-G SUN-70K-G SUN-75K-G SUN-80K-G on Grid three phase string Inverter Solar Energy Solar Invertererter



Place of Origin
Zhejiang, China



Brand Name
DEYE



Model Number
SUN-80K-G



Input Voltage
200-850V



Output Voltage
AC380V-400V



Output Current
116A



Output Frequency
50/60HZ



Size
330W*430H*193.5D mm



Certificate
CE IEC



Warranty
5 YEARS



Weight
17KG

Datasheet

Model
SUN-60K-G
SUN-70K-G
SUN-75K-G
SUN-80K-G
Input Side
Max. DC Input Power (kW)
78
91
97.5
104
Max. DC Input Voltage (V)
1000
Start-up DC Input Voltage (V)
250
MPPT Operating Range (V)
200~850
Max. DC Input Current (A)
40+40+40+40
Number of MPPT / Strings per MPPT
4/3
4/4
4/4
4/4
Inverter output
Rated Output Power (kW)
60
70
75
80
Max. Active Power (kW)
66
77
82.5
88
Rated AC Grid Voltage (V)
220 / 380, 230 / 400
AC Grid Voltage Range (V)
277Vac~460Vac (this may vary with grid standards)
Rated Grid Frequency (Hz)
50 / 60 (Optional)
Operating Phase
Three phase
Rated AC Grid Output Current (A)
87.8
101.5
108.7
115.9
Max. AC Output Current (A)
95.7
111.6
119.6
127.5
Output Power Factor
0.8 leading to 0.8 lagging
Grid Current THD
<3%
DC Injection Current (mA)
<0.5%
Grid Frequency Range
47~52 or 57~62 (Optional)
Efficiency
Max. Efficiency
98.7%
Euro Efficiency
98.3%
MPPT Efficiency
>99%
Protection
DC Reverse-Polarity Protection
Yes
AC Short Circuit Protection
Yes
AC Output Overcurrent Protection
Yes
Output Overvoltage Protection
Yes
Insulation Resistance Protection
Yes
Ground Fault Monitoring
Yes
Anti-islanding Protection
Yes
Temperature Protection
Yes
Integrated DC Switch
Yes
Remote software upload
Yes
Remote change of operating parameters
Yes
Surge protection
DC Type II / AC Type II
General Data
Size (mm)
700W×575H×297D
Weight (kg)
60
Topology
Transformerless
Internal Consumption
<1W (Night)
Running Temperature
-25~65℃
Ingress Protection
IP65
Noise Emission (Typical)
<25 dB
Cooling Concept
Natural cooling
Max. Operating Altitude Without Derating
2000m
Designed Lifetime
>20 years
Grid Connection Standard
EN50549, IEC61727, VDE 0126-1-1, IEC62109-1-2
Operating Surroundings Humidity
0-100%
Safety EMC / Standard
IEC62109-1/-2, EN61000-6-1, EN61000-6-3
Features
DC Connection
MC-4 mateable
AC Connection
IP65 rated plug
Display
LCD 240 × 160
Interface
RS485/RS232/Wifi/LAN

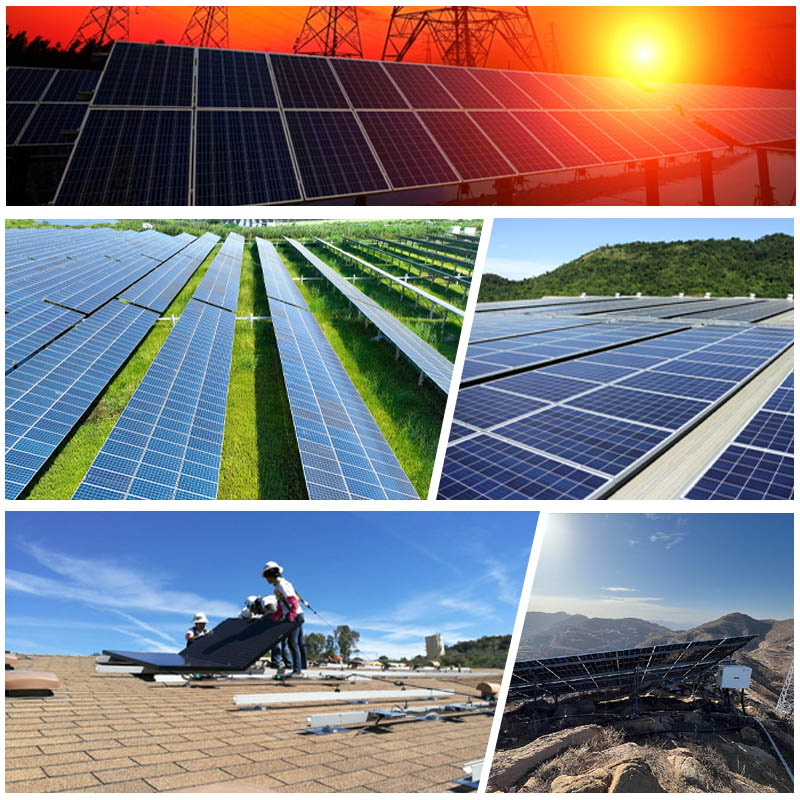

Project
